Arise Echo Disc Rear Hub

When it came to Arise designing their very first cassette hub, they wanted to ensure the backbone of the hub was an engagement system that could handle the torque and raw power of today’s modern rider. Utilising an exclusive double ratchet system at its core, the Arise ECHO Cassette hub can handle more power than any other hub out there.

Despite the enormous power of the Echo Hub, the weight is incredibly low making it one of the lightest hubs on the market. The super lightweight hub shell and 7075-T6 alloy thru-axle choices create a nimble and featherweight body for the enormous power in the driver mechanism.

With a super solid combination of oversized bearings in the hub shell and driver, the ECHO hub is as smooth and fast as it is deadly and powerful. Pair up with your choice of a 15mm or 10mm axle (purchased separately here) and either a chromo or alloy cog and lockring and you’re ready to get out there and put some serious lap times down.

Match this Arise Rear Hub with the Arise 20mm Front Hub.

Material: 6061-T6 alloy refined hub shell
Driver: Shimano Mini HG, 5mm range – lockring included (cog not included)
Axle Type: 15mm thru-axle or 10mm female axle available separately
Size: 110mm
Spoke Holes: 36h
Measurements: PCD: 58mm, DS flange offset (29.5mm), NDS flange offset (19.5mm)

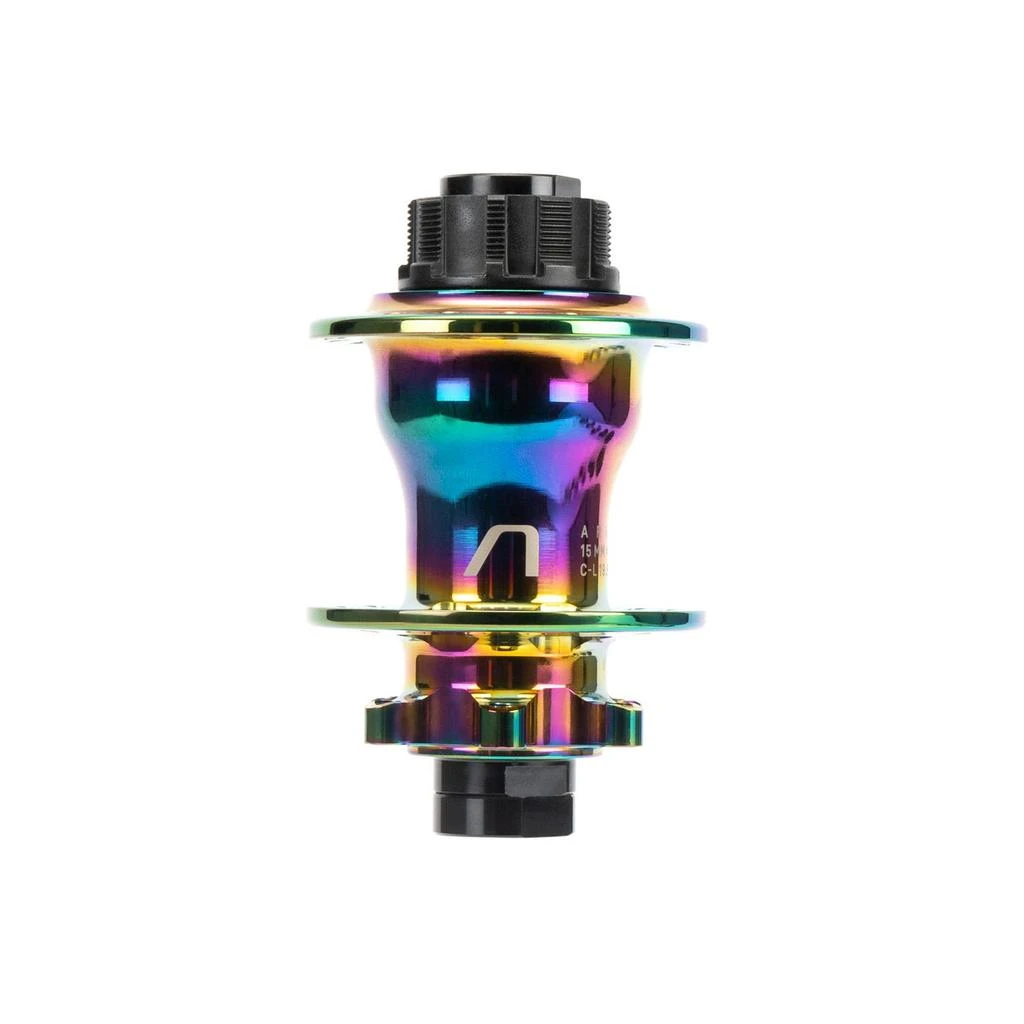

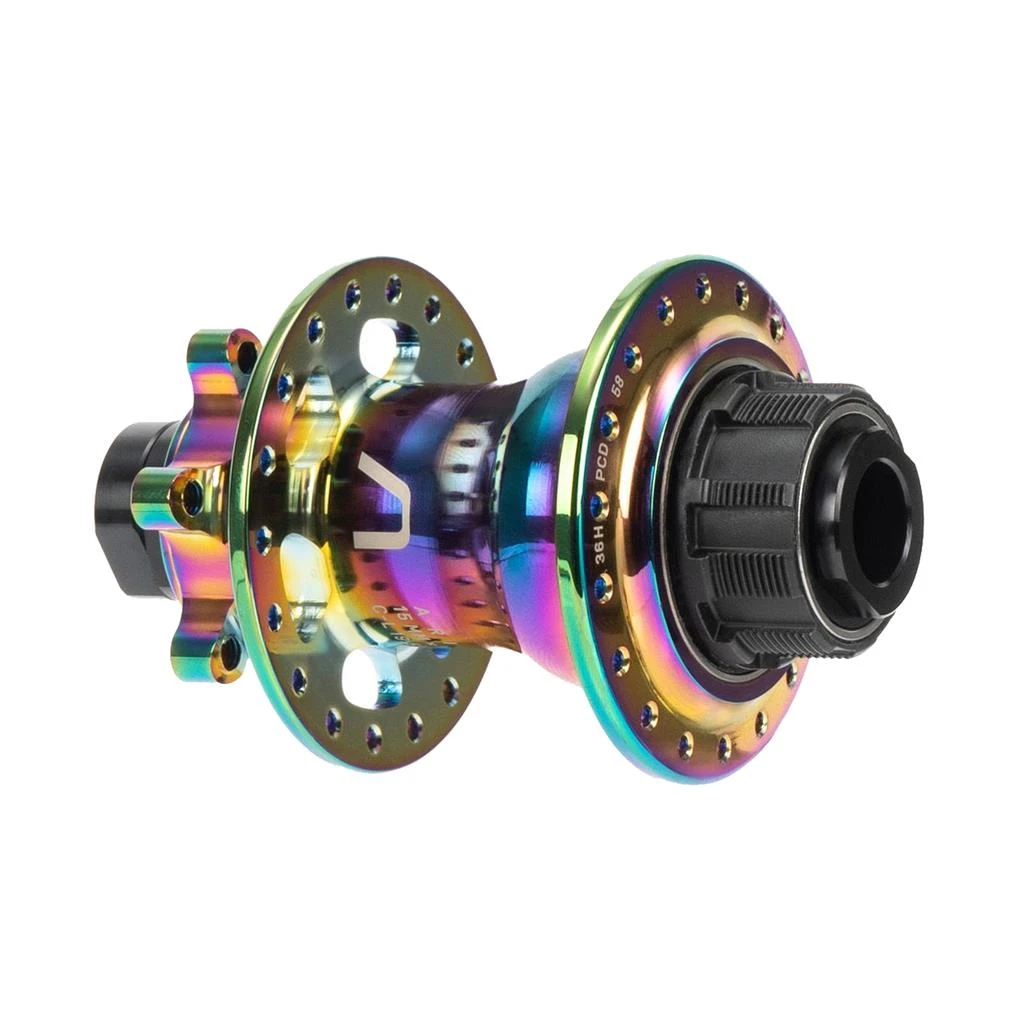

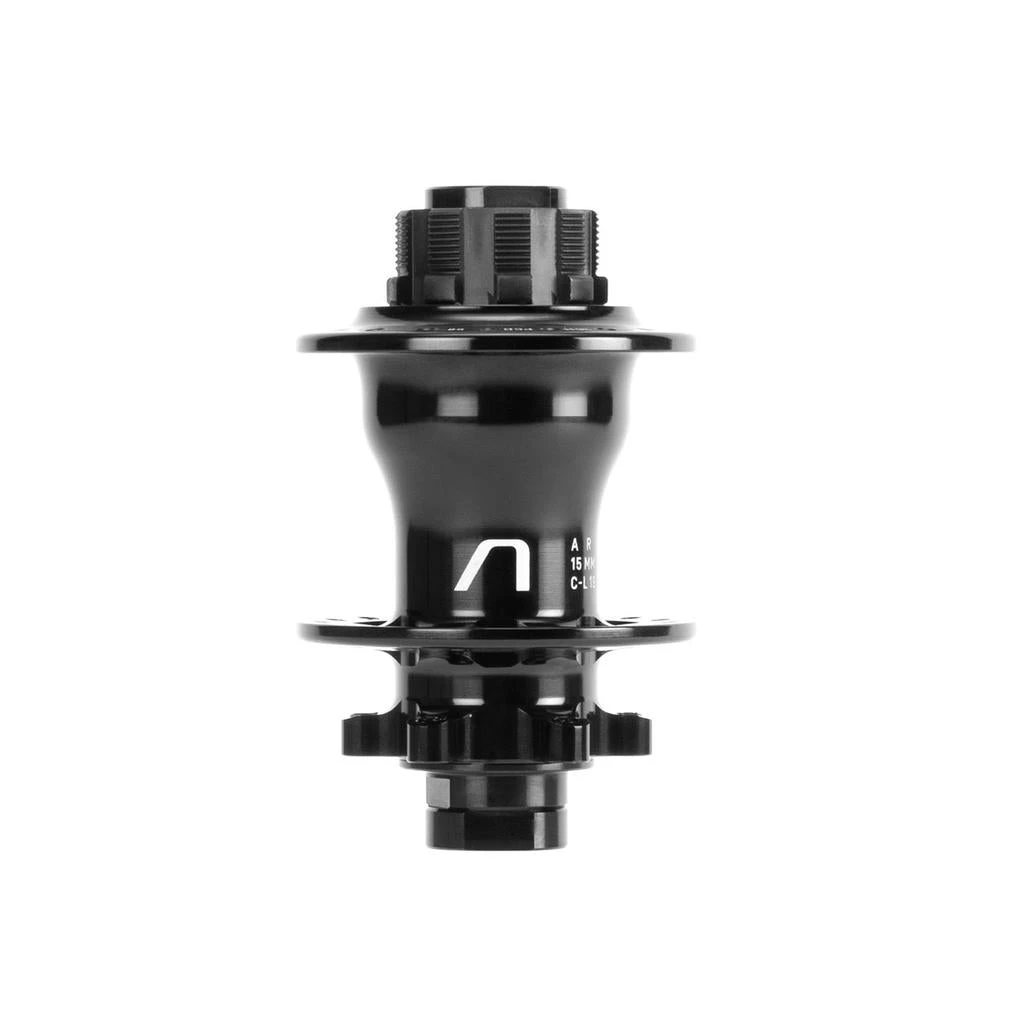

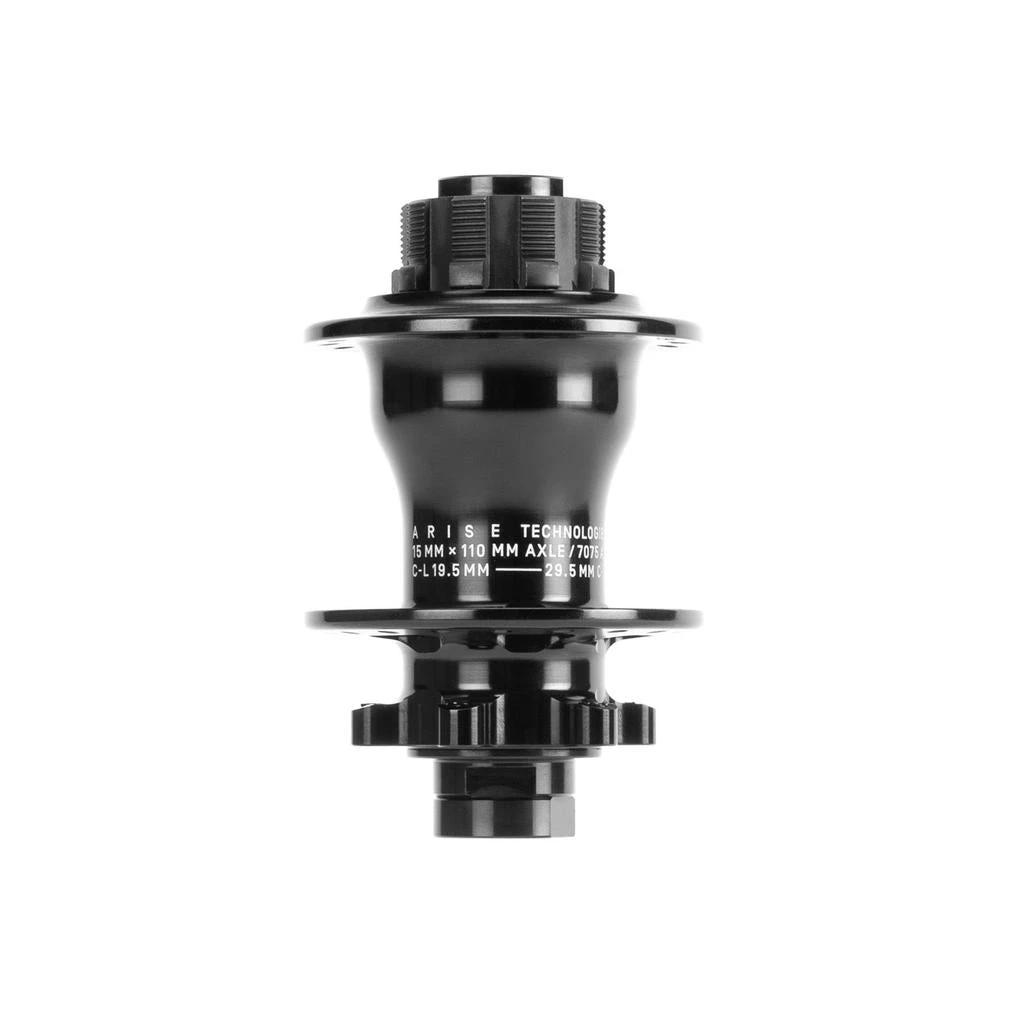

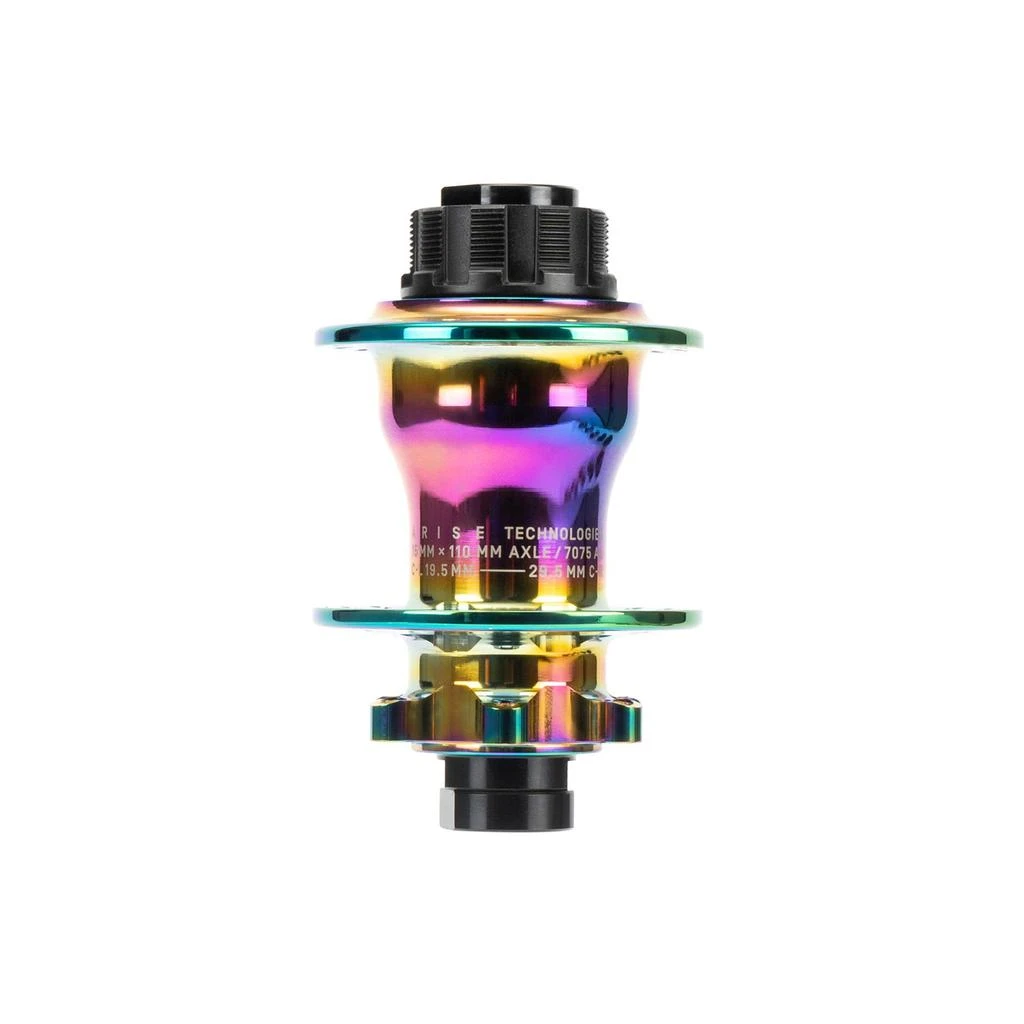

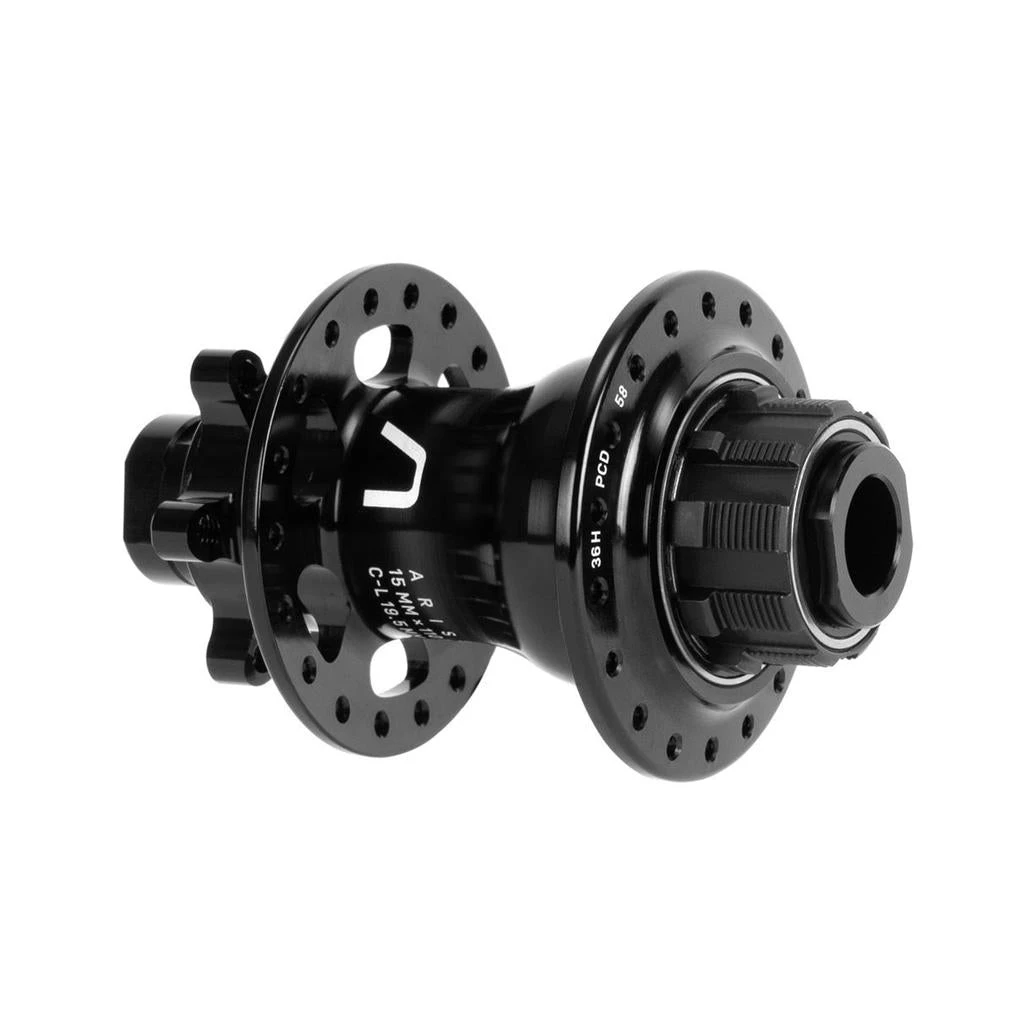

Colour: Black or Oil Slick
Weight:
285g – w/o axle
370g – w/ 15mm thru-axle (not included)
385g – w/ 10mm female axle (not included)
Bearings: 3x 18307-2RS bearings (18 x 30 x 7 mm), 1 x ACB41H6.5 (30.15 x 41 x 6.5 mm)
Features:
• super lightweight race-spec cassette hub
• Arise exclusive high-engagement ratchet system
• incredibly strong and reliable engagement system capable of handling more torque than any hub on the market
• 6-bolt IS disc brake rotor mount
• larger oversized bearings for reduced friction and low rolling resistance
• 36h options
• includes Arise CNC alloy lockring with an oversized profile for longer life and a tighter hold on the cog
• DOES NOT include axle or cog.
