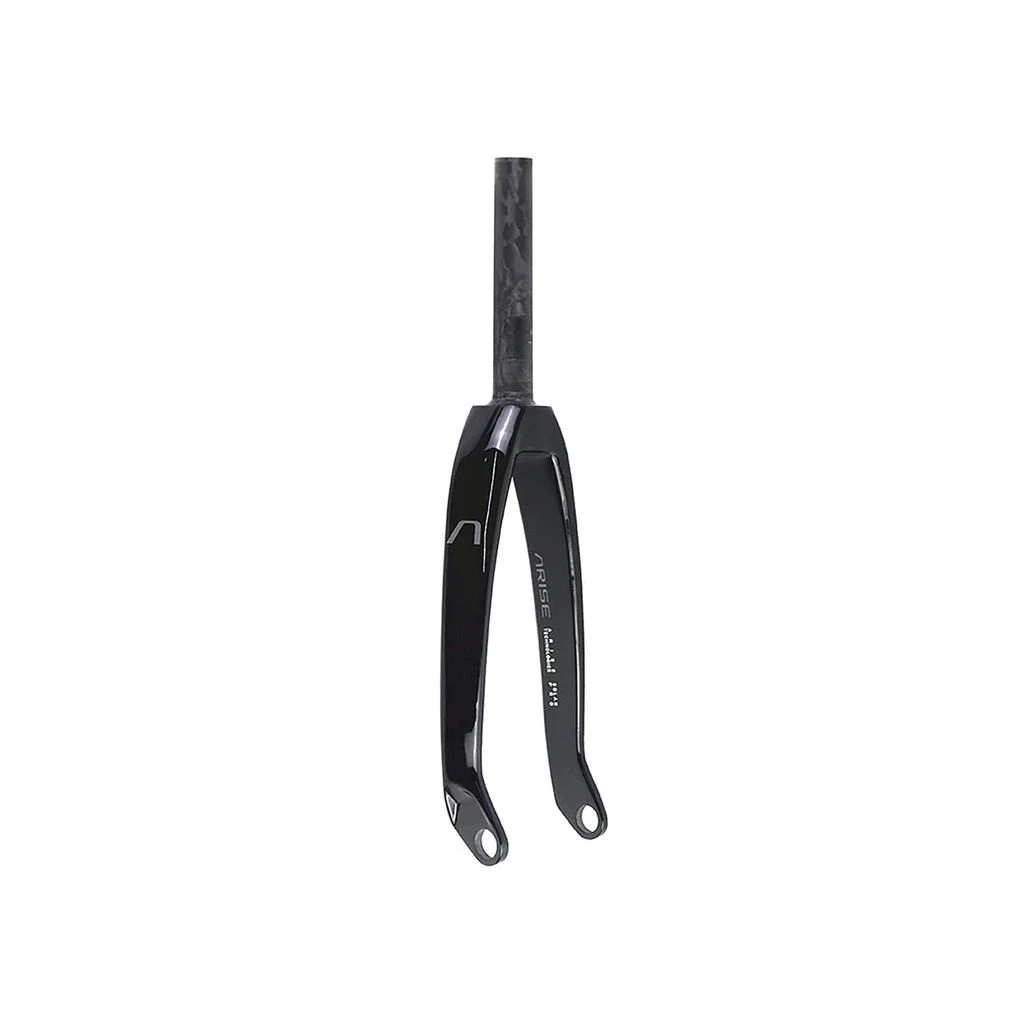

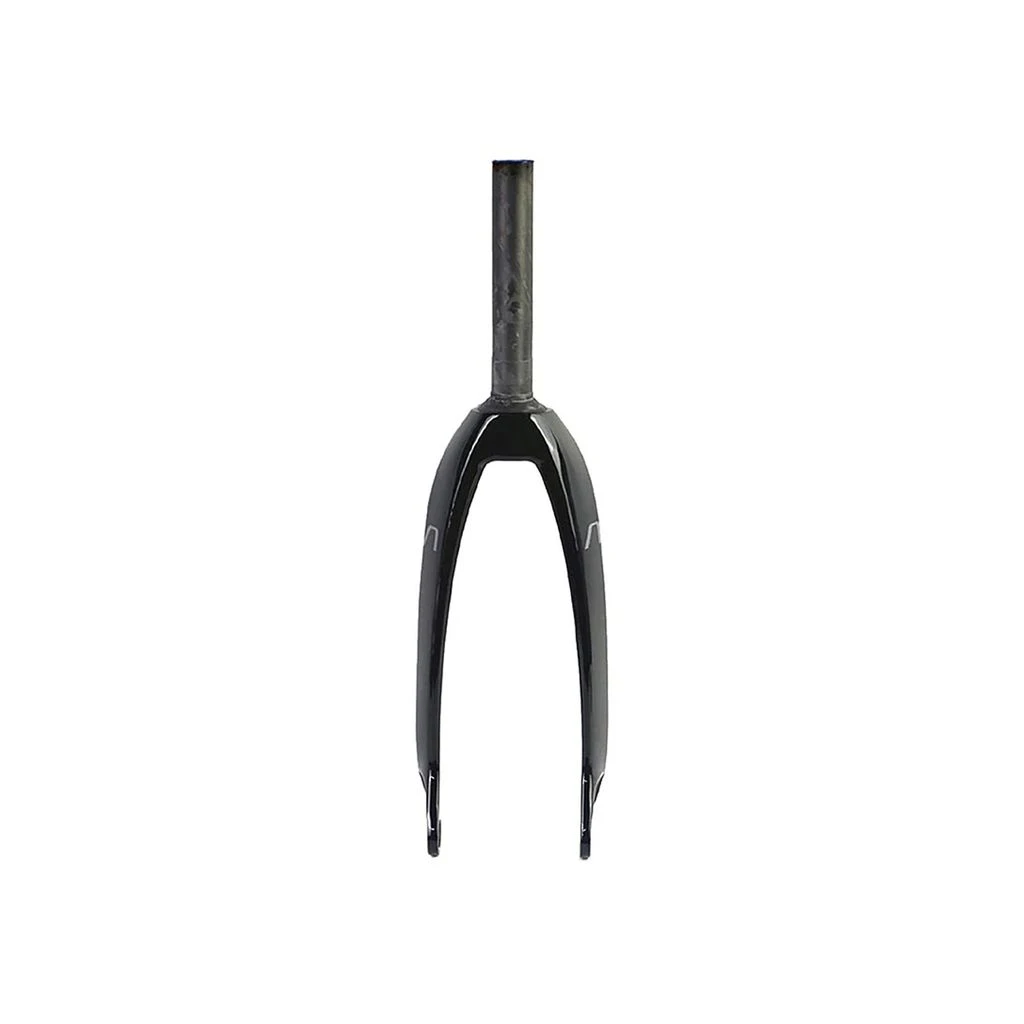

Arise Solar Carbon Forks / Expert / 1-1/8 Inch / 20mm

Arise Components is Radio Raceline’s part’s brand and brings with it this company’s unwavering commitment to quality race gear. Their carbon Solar forks are a perfect match to any junior or expert Radio Helium frame, or any junior or expert frame for that matter.

Both the steerer and fork legs are manufactured from high-performance TORAYCA carbon fibre, which brings stiffness and lightness to this race fork. A 20mm enclosed dropout means that you can run a Onyx thru-bolt hub, though 10mm adapters are included so that you can run a bolt-up hub should you wish.

Features

• 1pc full carbon fibre fork
• Includes Stem lock & adapters for 10mm female bolts
• Laboratory tested for superior strength and stiffness
• This fork exceeds Category 2 of EN 16054.2012 testing for BMX race forks
• Integrated headset race at the bottom of the crown, 45/45 angle

Specs

• Material – High-performance TORAYCA carbon fibre, 1pc legs and steerer
• Machining – 1pc monocoque construction
• Steerer Tube – 1⅛” straight steerer, 180mm long
• Dropouts – 20mm thru axle (includes adaptors for ⅜” / 10mm female bolt hubs)
• Top Bolt – Includes Solar Pro Compression Bolt
• Max Tyre Size – (INC 3mm CL) 47mm
• Axle to Crown – 302.6mm
• Offset – 32mm
• Weight – 480g

• Max Weight Limit – 110kg
