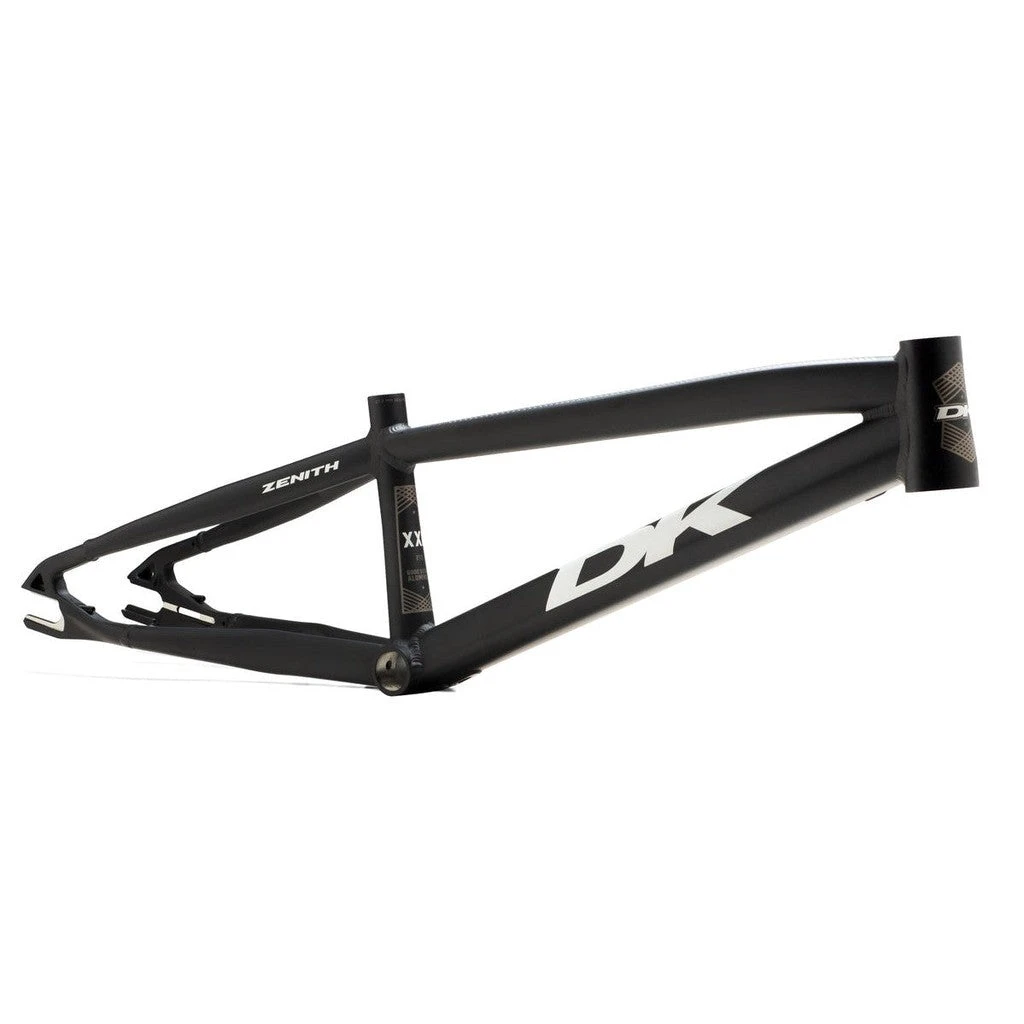

DK Zenith Disc Frame Pro L

The DK Zenith Disc race frame is back for 2022, and back in black! This frame forms the foundation for the DK Zenith complete race bike. If you are going to build up a brand new race rig for 2022, you can be assured that this race unit is designed with the same proven low-profile geometry as the DK Professional-X frame to help you produce maximum speed, but retain stability right from the 20.5″” Pro, up to the 22″” Pro XXXL sled! This frame has cemented its reputation for winning since its introduction in 2020, being engineered from the ground up for acceleration. DK, a trusted name and a favourite here with the LUXBMX crew, these are one of our picks of the alloy frames for 2022.

This frame is 100% custom design constructed from 6000 series hydroformed aluminum. Patent pending sliding flat mount disc brake system delivers superior braking in all conditions. Clean, compact, responsive, and stiff, with a wide stance rear end designed for max power. The neat and tidy design of this disc system helps keep it away from the front wheel of those wannabes dive bombing you in the last corner trying to wreck you. Fools! They never had a chance.

DK Zenith Disc Frames Feature:

• Pro 20.5”, XL 21”, XXL 21.5”, XXXL 22”, and Cruiser 21.75” sizes
• Built with lightweight hydroformed 6000 series aluminum tubing
• Horizontal sliding axle / Flat Mount brake system provides 30mm of adjustment
• Features a tapered 1-1/8”-1.5” head tube (headset included with an extra lower race to work with standard 1-1/8” forks)
• Trapezoidal seat mast for increased stiffness at bottom bracket
• Wide stance rear stay design adds stiffness
• Threaded Euro bottom bracket shell
• Internal brake cable routing
• 20mm / 10mm dropouts (hardware included) with integrated chain tensioners
• Seat post diameter: 27.2mm

*Compatible with Flat Mount style disc brake calipers

	Pro	Pro XL	Pro XXL	Pro XXXL	Pro XXXXL	Cruiser
Top Tube Length	20.5”	21”	21.5”	22”	22.5”	21.75”
Chain Stay Length	14.83”	14.83”	15”	15”	15”	15.25”
Head Tube Angle	74º	74º	74º	74º	74º	73º
Seat Tube Angle	72º	72º	72º	72º	72º	72º
BB Drop	-35mm	-35mm	-35mm	-35mm	-35mm	-10mm
Seat Tube Length	7.4”	7.4”	7.4”	7.4”	7.4”	8.25”
Headset Type	Tapered 1.5”	Tapered 1.5”	Tapered 1.5”	Tapered 1.5”	Tapered 1.5”	Tapered 1.5”
Rear Axle Size	10mm, 15mm, or 20mm	10mm, 15mm, or 20mm	10mm, 15mm, or 20mm	10mm, 15mm, or 20mm	10mm, 15mm, or 20mm	10mm, 15mm, or 20mm
Weight	1.73kg	1.74kg	1.77kg	1.78kg	1.80kg	1.79kg
