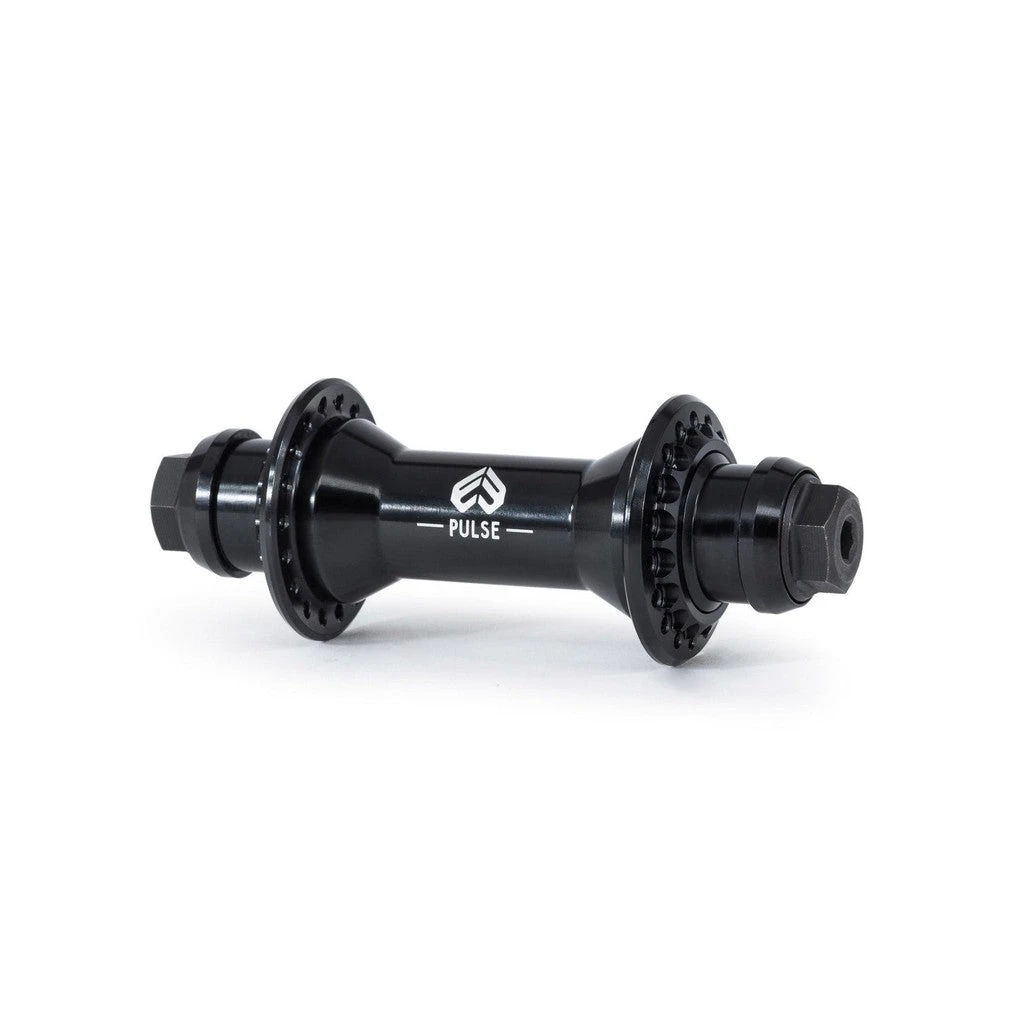

Eclat Pulse V2 Front Hub

The Eclat Pulse Front Hub comes with a female axle and a 6061-T6 refined hub-shell. This expertly designed hub features a lightweight design and a strong flange to take all your abuse on ledges and rails. The axle includes an inner Allen key for easy maintenance. At 281g, the Pulse hub is a featherweight that’s built to last. This hub now features a longer 35mm bolt to accommodate plastic pegs and for a stronger female bolt setup.

Features:
– Lightweight design
– Strong low flange hub
– Allen key inner axle for easy maintenance

Specifications:
Material – 6061-T6 alloy refined hub-shell
Axle – 4130 crmo female axle. 3/8″ thread
Bearings – 2 sealed high-quality bearings set inbound for longer life
Spokes – 36h (3x 186mm spokes requ.)
Weight: 281g

Dimensions:
PCD (Spoke Pitch Circle Diameter) – 38mm
Flange Offset: 34.25mm / Distance Locknut to Flange: 15.75mm
