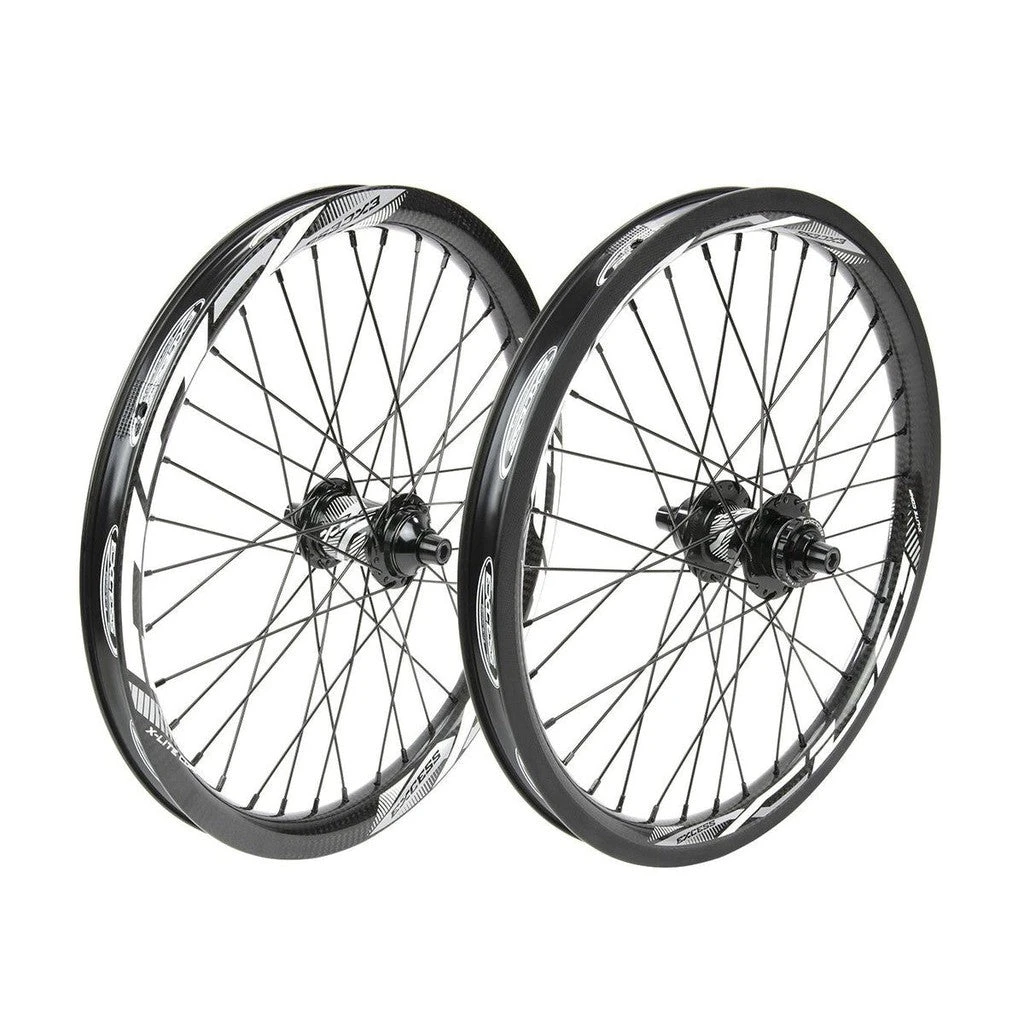

Excess XLC-3 Carbon Wheel Set

The Excess XLC-3 Carbon Wheelset is this brand’s top of the line carbon wheels and bring affordability to the top end of the race performance spectrum where there is no compromise when it comes to results. Light and stiff, this wheelset features a Pro level rear cassette hub that can take the power of a pro rider and keep you out front of the pack! The XLC-3 wheels feature a hub containing a 3 pawls system, with 5 fin engagement, locking into a 120 ratchet cutter ring, resulting in a hub that can handle that extra torque needed for full power gate starts!

The XLC-3 also uses Excess’s exclusive 3K Carbon Fiber rims that feature 2 different rim profiles front and rear, each with a low profile, and a hi-gloss carbon finish.

These are a versatile wheelset  that offers you the option to convert the rear hub to accept a disc brake, via an optional Disc Center Lock adapter (sold separately). This gives you the best of both worlds. The wheels are set up out of the box for V Brakes, but you can upgrade to disc at anytime without getting a new rear hub! This is groundbreaking in the world of BMX racing. Also offered  is a front hub Axle Conversion – The wheels are delivered with a 3/8 (10mm) front axle set up, but with the upgrade to the optional front 20mm hub axle, you can also convert the front hub to be used with 20mm dropout forks!



All the wheels feature new graphics, Gloss Black Anodized finish, and 2 unique different Rim Profiles.



Check the Spec’s tab for the full breakdown of these new, groundbreaking wheelsets.



Note: Cog and centre lock disc adapter are sold separately

Pro XLC-3 Front Hub Features:

• 2 sealed bearings
• Alloy axle / Alloy end caps
• 3/8” bolts with alloy CNC bolts caps
• Optional 20mm Conversion axle kit sold separately
• Pro XLC-3 Rear Hub with Center Lock Disc option Features:
• 4 sealed bearing
• Cromo axle
• 3/8” bolts with alloy CNC bolts caps
• Cromo driver (3 pawls with 5 fin engagement system, engage into a 120 ratchets outer ring), with cromo 1x 1mm, 1x 0.5mm driver spacer and lock ring.
• Wheel set is not delivered with a rear cog
• Option to replace the supplied alloy lock ring and install the Center Lock Disc Adapter sold separately

Rim Features:

• 3K carbon with water stickers and shiny clear coating finish rim
• Low Profile Aero
• Brakeless Surface Profile on front rim
• Brake Track surface Profile on rear rim
• Presta valve hole
• Angle Nipples Holes
• Wheels are Laced with 14G Stainless spokes & Brass nipples
• Excess rim tape included

Excess XLC-3 Carbon Wheel Set / Black/White / 20 x 1.3/8​

XLC-3 Front Hub Features:

• 2 sealed bearings
• Alloy axle / Alloy end caps
• M6 bolts with alloy CNC bolts caps
• 28 hole

XLC-3 Rear Hub with Center Lock Disc option Features:

• 4 sealed bearing
• Alloy axle
• M6 bolts with alloy CNC bolts caps
• Cromo driver (3 pawls with 5 fin engagement system, engage into a 120 ratchets outer ring), with cromo 1x 1mm, 1x 0.5mm driver spacer and lock ring.
• Wheel set is not delivered with a rear cog
• 28 hole
• Option to replace the supplied alloy lock ring and install the Center Lock Disc Adapter not included.

Rim Features:

• 3K carbon with water stickers and shiny clear coating finish Rim
• Low Profile Aero design
• Brakeless Surface Profiles Front rim
• Brake Track surface on rear rim
• Presta valve hole
• Angle Nipples Holes
• Wheels are Laced with 14G Stainless spokes & Brass nipples
• Excess rim tape included

Spokes Length:

Front: 210mm
Rear: 208/206mm

Wheel Weight:

Front: 620g
Rear: 799g

EXCESS XLC-3 451 x 21mm RimSpecifications



Excess XLC-3 Carbon Wheel Set / Black/White / 20 x 1.50/1.75

Pro XLC-3 Front Hub Features:

• 2 sealed bearings
• Alloy axle / Alloy end caps
• 3/8” bolts with alloy CNC bolts caps
• Optional 20mm Conversion axle kit sold separately

Pro XLC-3 Rear Hub with Center Lock Disc option Features:

• 4 sealed bearing
• Cromo axle
• 3/8” bolts with alloy CNC bolts caps
• Cromo driver (3 pawls with 5 fin engagement system, engage into a 120 ratchets outer ring), with cromo 1x 1mm, 1x 0.5mm driver spacer and lock ring.
• Wheel set is not delivered with a rear cog
• Option to replace the supplied alloy lock ring and install the Center Lock Disc Adapter sold separately

Rim Features:

• 3K carbon with water stickers and shiny clear coating finish rim
• Low Profile Aero
• Brakeless Surface Profile on front rim
• Brake Track surface Profile on rear rim
• Presta valve hole
• Angle Nipples Holes
• Wheels are Laced with 14G Stainless spokes & Brass nipples
• Excess rim tape included

Spokes Length:

Front: 178mm
Rear: 177/175mm

Wheel Weight:

Front: 820g
Rear: 906g

EXCESS XLC-3 406 x 32mm RimSpecifications



Excess XLC-3 Carbon Wheel Set / Black/White / 24 x 1.50/1.75

Pro XLC-3 Front Hub Features:

• 2 sealed bearings
• Alloy axle / Alloy end caps
• 3/8” bolts with alloy CNC bolts caps
• Optional 20mm Conversion axle kit sold separately

Pro XLC-3 Rear Hub with Center Lock Disc option Features:

• 4 sealed bearing
• Cromo axle
• 3/8” bolts with alloy CNC bolts caps
• Cromo driver (3 pawls with 5 fin engagement system, engage into a 120 ratchets outer ring), with cromo 1x 1mm, 1x 0.5mm driver spacer and lock ring.
• Wheel set is not delivered with a rear cog
• Option to replace the supplied alloy lock ring and install the Center Lock Disc Adapter sold separately

Rim Features:

• 3K carbon with water stickers and shiny clear coating finish rim
• Low Profile Aero
• Brakeless Surface Profile on front rim
• Brake Track surface Profile on rear rim
• Presta valve hole
• Angle Nipples Holes
• Wheels are Laced with 14G Stainless spokes & Brass nipples
• Excess rim tape included

Spokes Lenghth:

Front: 223mm
Rear: 222/220mm

Wheel Weight:

Front: 960g
Rear: 1036g

EXCESS XLC-3 507 x 30mm RimSpecifications
