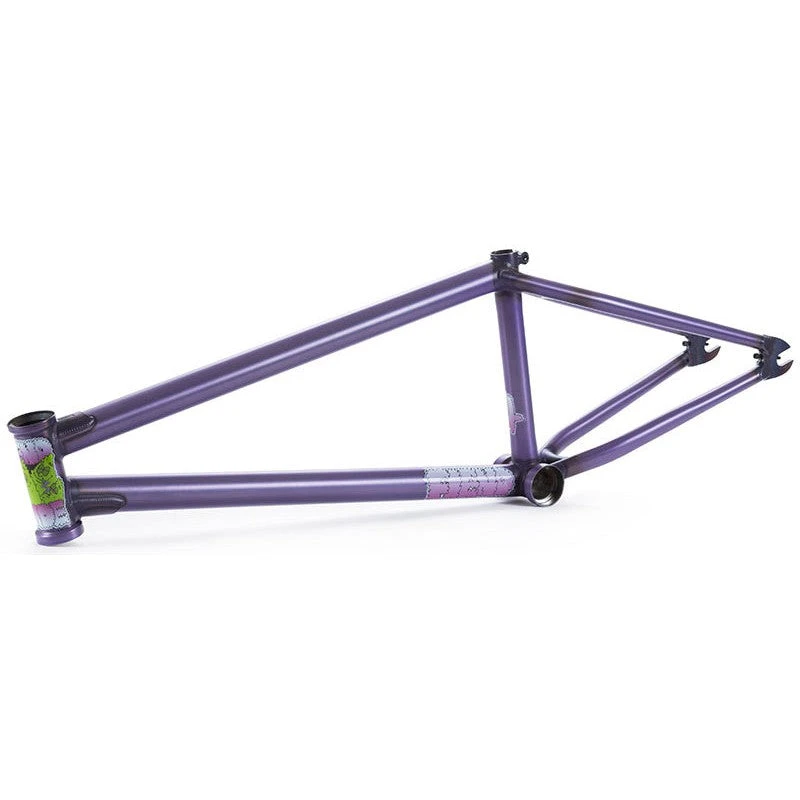

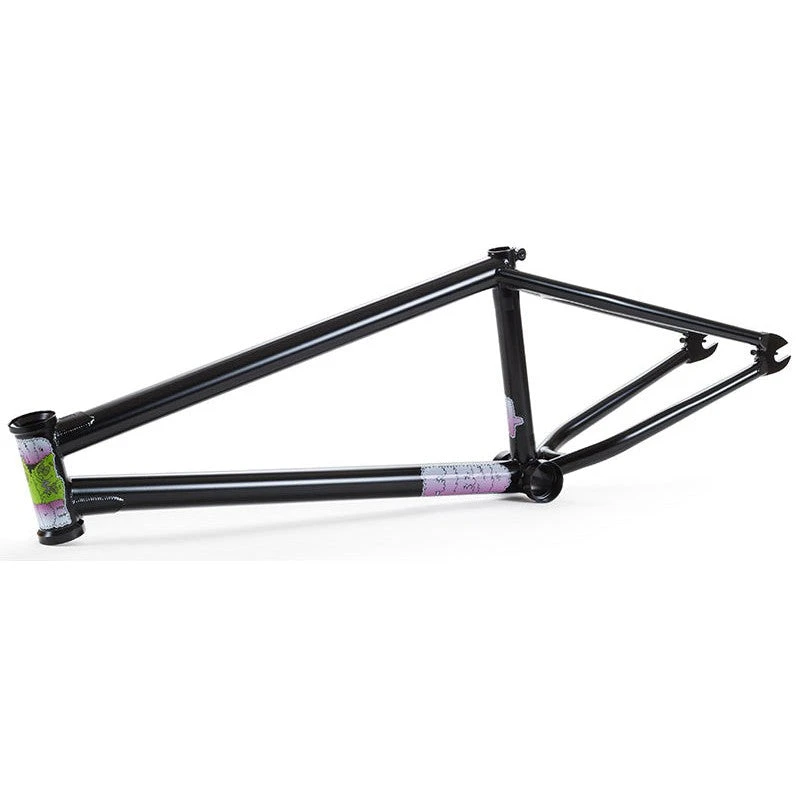

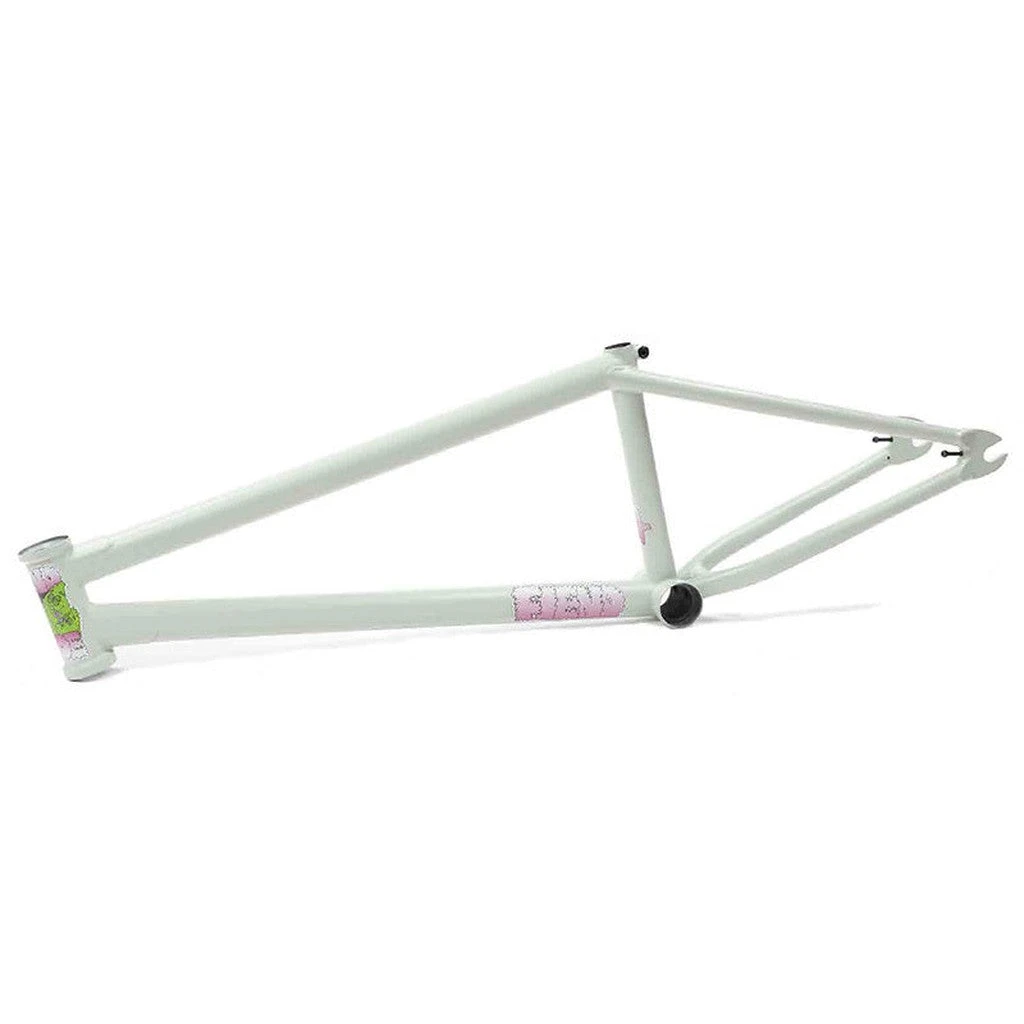

Fiend Morrow V4 Frame

Fiend Morrow V4 Frame (Brake Mount Compatible Model)

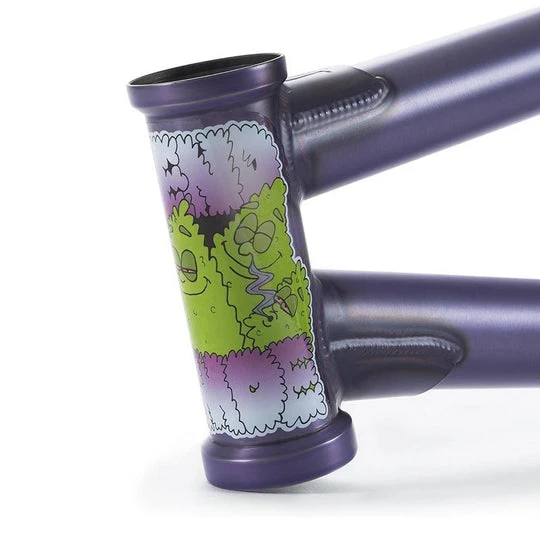

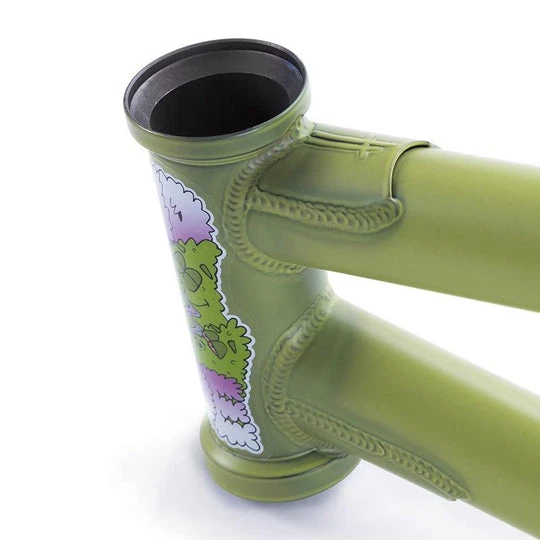

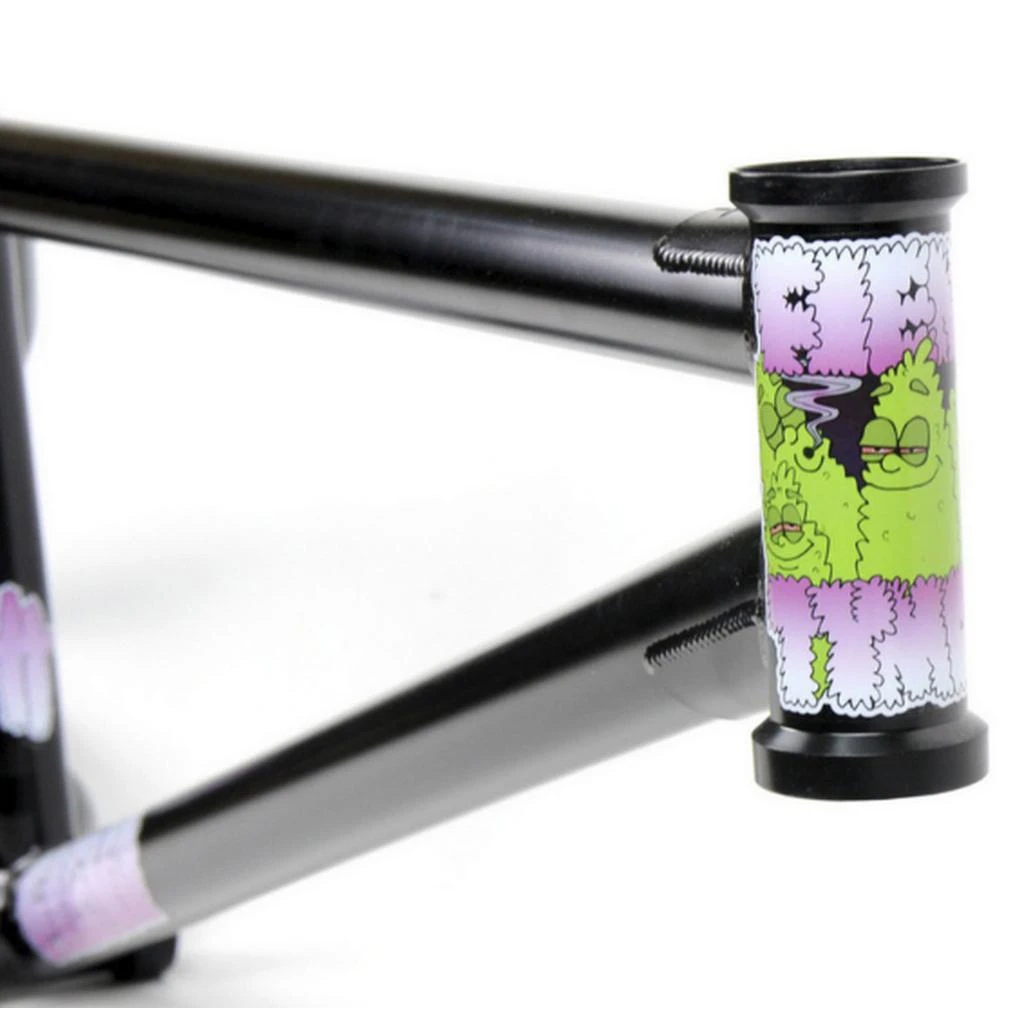

Absolute destroyer of everything- Ty Morrow’s new signature frames from Fiend is an absolute masterpiece! Heavily street orientated geometry will make this thing ride like a dream and the only thing that it is missing from it is Ty’s insane bunnyhopping skills- one day guys, one day! Designed by Ty Morrow and constructed with 4130 chromoly throughout. Features include heat-treated Mid bottom bracket shell and integrated head tube, a double-butted top tube with external Trip logo gusset, oval double-butted down tube with external gusset, externally butted seat tube with integrated clamp, tapered seat stays and heat-treated 6mm thick dropouts with integrated tensioners.

New V4 Morrow frame with upgraded top tube for added strength, slightly shorter 12.9 Inch chain stay for better wheel placement and all new graphics.

Brake Mounts: M8 Flat/Standard Mount – Fiend kits available here: Fiend Removable Brake Hardware Kit / M8

If you order a bottom bracket with the frame, just let us know if you’d like it installed for free before dispatch!

Dimensions:

75.5 Degree Head Tube Angle
71 Degree Seat Tube
9 Inch Seat Tube Height (bottom bracket to top tube, centre to centre)
12.9 Inch Chain Stay Length
11.625 Inch BB Height
Weight: 5.0lbs for the 20.75 Inch
