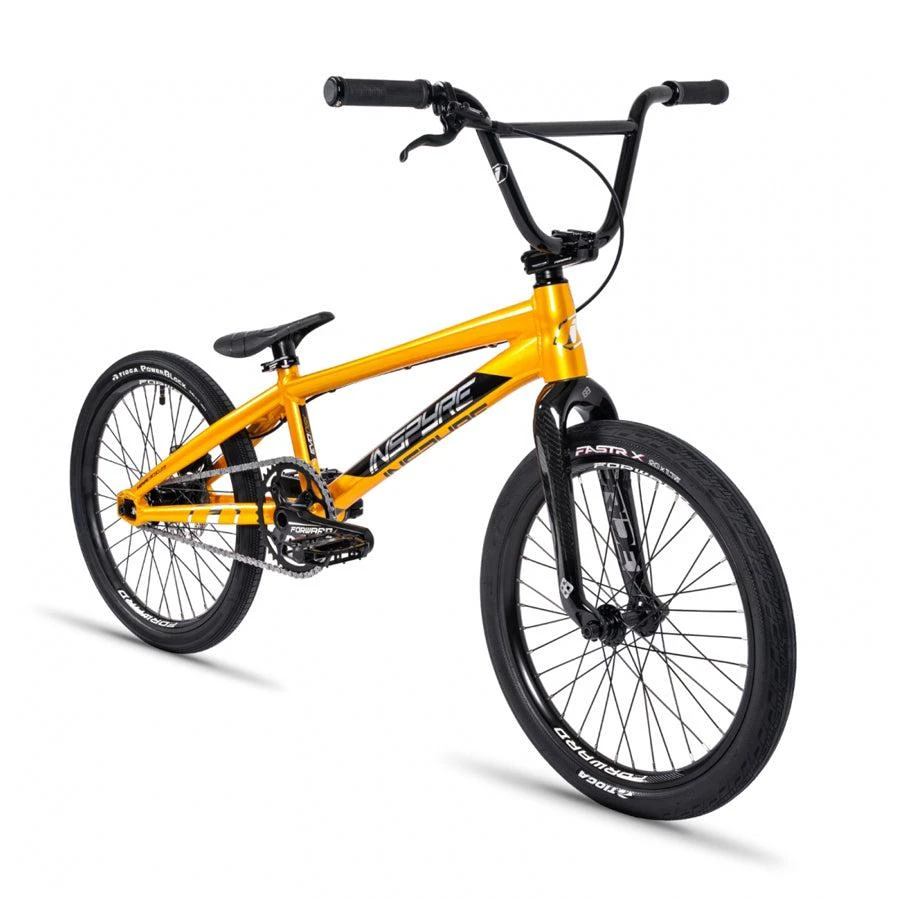

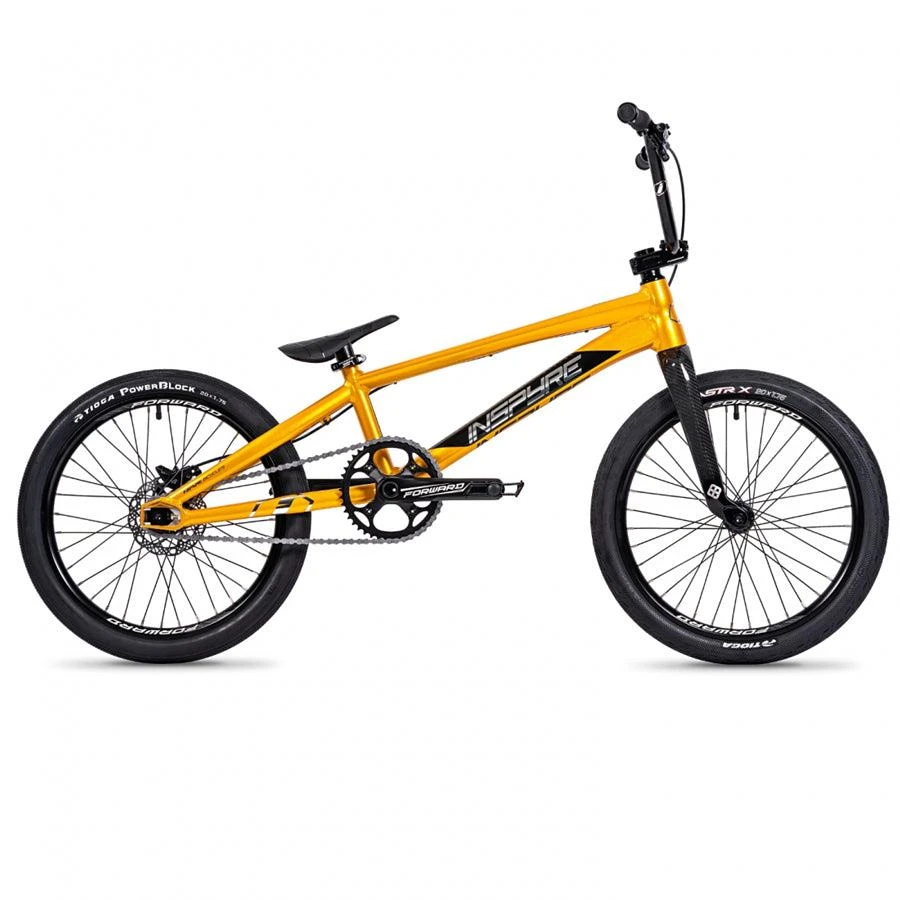

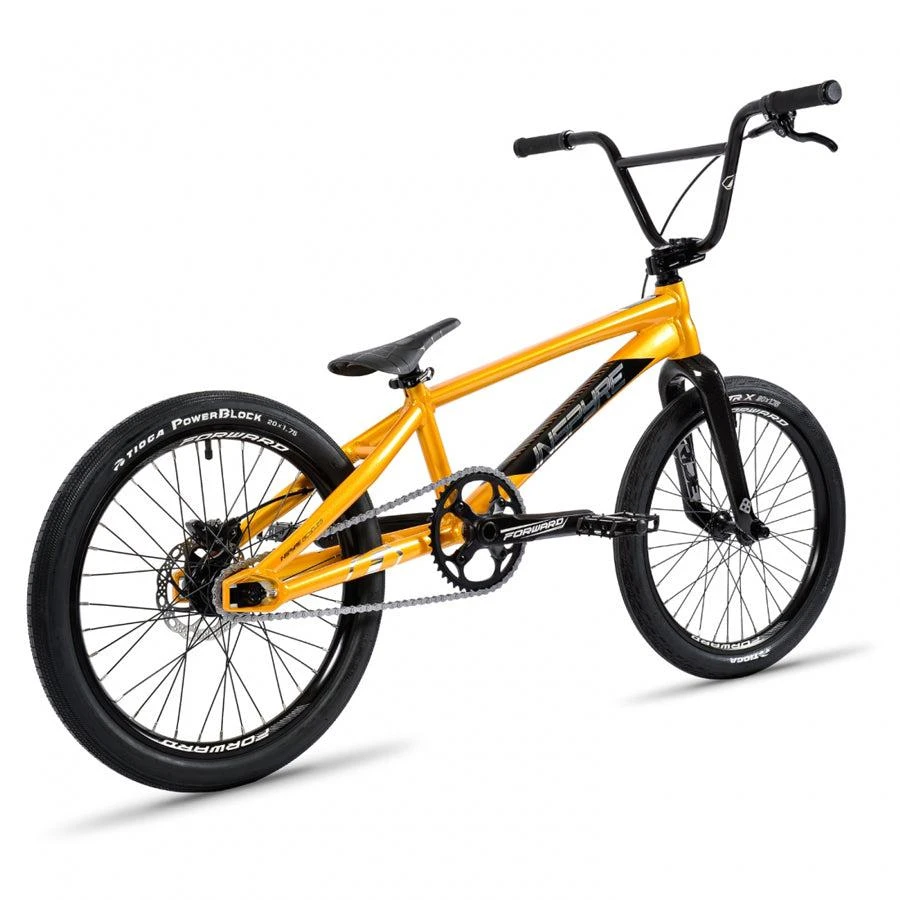

Inspyre EVO-C Pro XXL Disc Brake Bike

This range of Inspyre bikes quickly became a favourite of racers looking to step up from an entry level race bike to a more performance orientated machine, without breaking the bank. We found that the type of customer buying a bike from the EVO-C range has been racing for around 12-18 months and searching for a bike with a carbon fork and disc brakes. The Inspyre EVO-C Pro XXL Disc Brake Bike ticks these boxes and more.

Starting with the frame that is formed from 6061-T6 aluminium hyrdroformed tubes, the EVO-C is littered with parts from the Forward brand, including the stem, cranks and hubs. Upfront on the Pro XXL it’s a Pride Racing tapered carbon fork taking care of the steering duties, while Shimano takes care of braking. Disc brakes make a whole lot of sense for the young riders that don’t yet have the hand strength. They can easily wash off speed, and this braking system is virtually maintenance free.

Whilst Inspyre is a younger brand, there’s no doubt that the people behind the Evo series know their race craft, with each size being right in the competitive ball park as far as specs for bars, cranks and gearing on each bike. Our in-house race guru rates and recommends this range based on both price point, and value for money, with a custom ground up build easily costing double the price of the EVO-C to achieve the same performance value.

When you take your first lap at the track on your EVO-C you’ll know that you made the right choice.

Size	21.85
Frame	Inspyre Evo-C Disk Pro XXL 21.85’’- Premium Alu 6061-T6 – Hydroformed tubes – Triple butted – Swell forged 3D dropouts
Fork	Pride Racing Slik 3.0 – Torayca T700 carbon – Tapered 1-1/8’’ / 1.5’’ pivot – Aluminum Crown Race – 10mm – 3K Gloss
Headset	Pride Racing – Tapered Integrated – Sealed bearings – IS42 | IS52
Stem	Forward – Top Load – Aluminum 6061-T6 – 50mm
Handlebar	Inspyre Evo – Aluminium – 22.2mm – 8’’ x 28.5’’ – BS: 7° / US: 1.5°
Grips	Forward Lock On 130mm – Kraton
Brake	Shimano BL-MT401 – Right lever – Black / Shimano BR-MT410 – Rear caliper – Post Mount – Resin pads / Forward 140mm disc
Crank	Forward Joyride AM 2-piece – 4-bolt (104 BCD) – 175mm
Chainring	4-bolt Aluminum 44T
Chainring Bolts	Alloy
Bottom Bracket	FORWARD® external BSA – Sealed bearings
Pedals	Aluminum 9/16
Chain	KMC® Z-1 – 1/2’’ x 3/32’’
Front Hub	Forward Joyride – Aluminum 36H – 10mm – 100% Sealed bearings – Female bolts
Rear Hub	Forward Joyride Disc – Aluminum Cassette 36H – 10mm – 100% Sealed bearings – 150 engagement points – 6-pawl system – Female bolts
Spokes	Stainless 14G
Rear Cog	16T – 1/2’’ x 3/32’’ – Chromoly
Front / Rear Rim	Forward Joyride – Aluminum 36H – Double-wall
Tyres	Tioga FASTR X / Powerblock – 20×1.75 / 1.60’’ – Rigid beads – 60 TPI
Seat / Post	Combo Saddle Nylon Seatpost – Seat: 214x113mm – Seatpost: 162×27.2mm
Seat Clamp	Forward AM 31.8mm
Gearing / Ratio	44×16 / 53.59″
Weight	TBC
