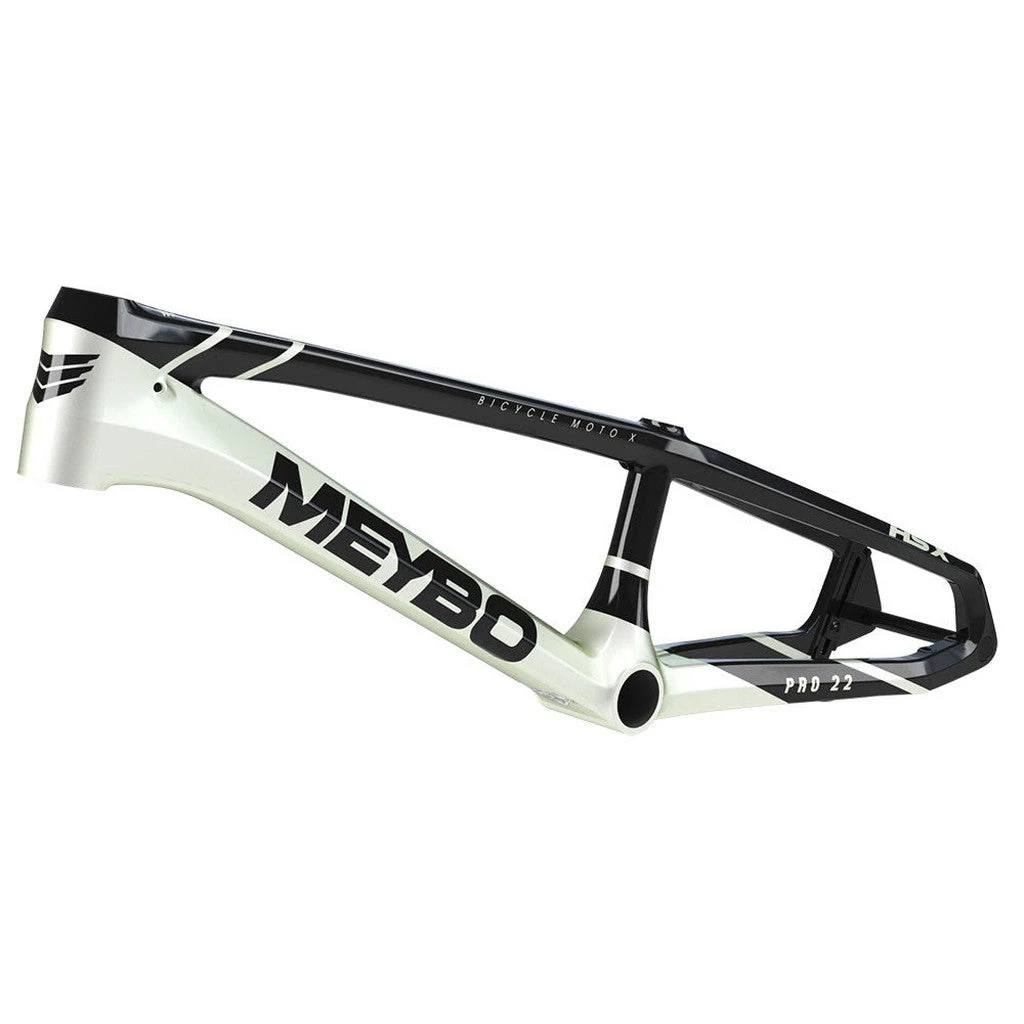

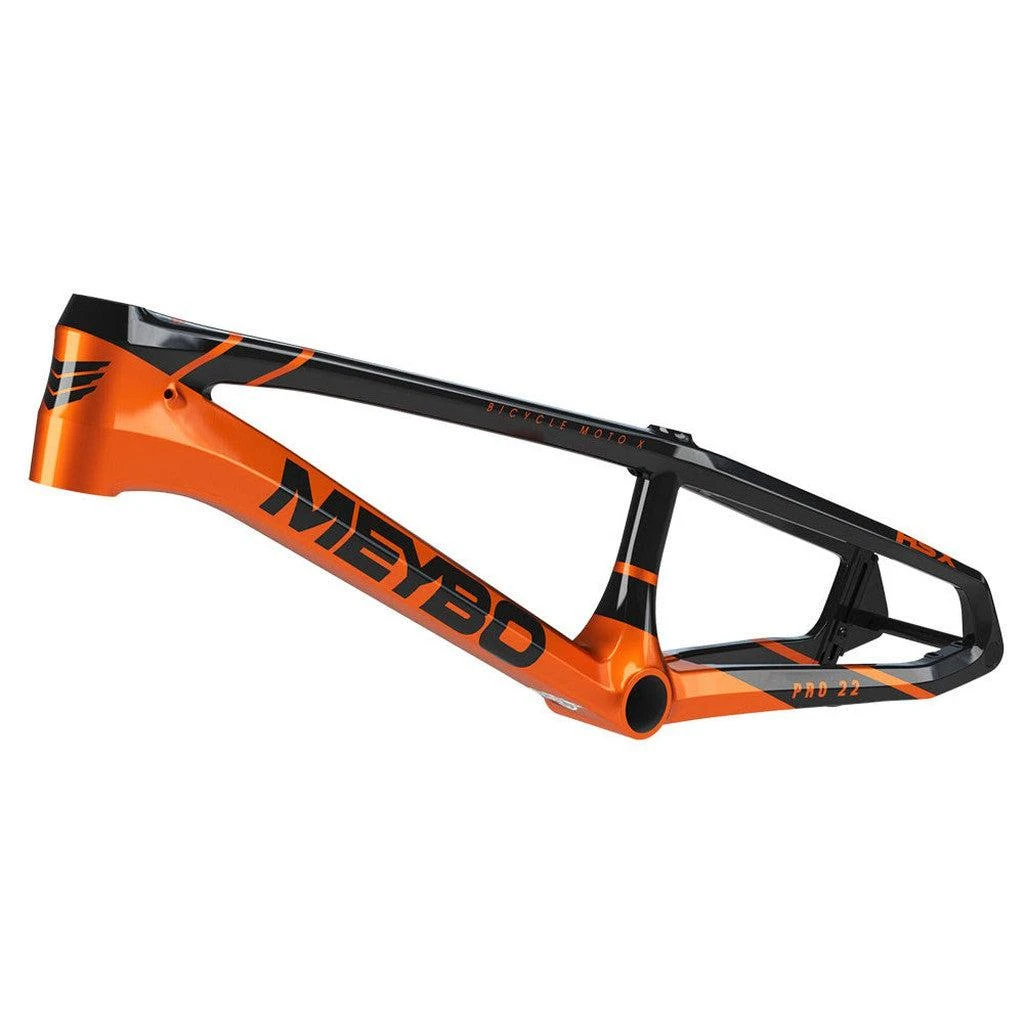

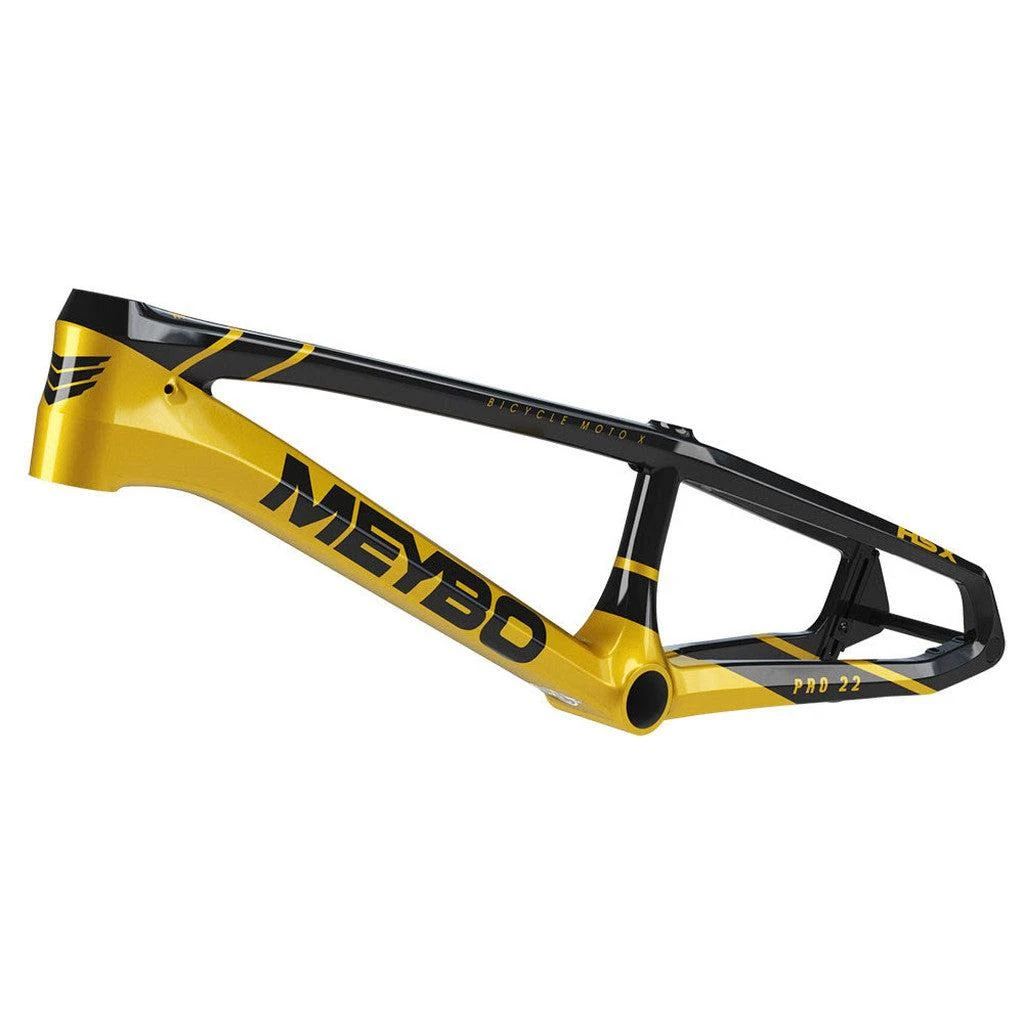

Meybo 2025 Carbon HSX Pro XXL Frame

The 2025 Meybo HSX carbon frame series continues to sit at the pinnacle of BMX race frame design and performance. Not only is this carbon frame extremely light, it’s strong and more importantly, stiff in all the right places, especially in the area surrounding the bottom bracket shell. But it’s not all function over form, for 2025 there’s some eye popping colours that will for sure see the popularity of these frames elevate even more.

Utilising a fixed dropout design, with associated chain tensioning system and flat mount disc caliper set up, the HSX carbon brings to the gate the same simplistic design that has seen the HSX series become popular on the UCI circuit. And not just favoured buy the Dutch, riders all over the world appreciate the ease at which gearing changes can happen, and the outright performance focus this frame has. It has certainly forced other top BMX race manufacturers to re-evaluate their frame designs.

Here at LUX we love these Meybo frames for their simple clean graphics that state perfectly their no nonsense approach to winning. Touches like full internal cable (hose) routing makes building these frames up child’s play. Plus it looks clean! Make no mistake though, the HSX range has all the attributes of dialed geometry, stiffness and proven on the track performance.

Another detail to attention that proves that Meybo is ahead of the game is that fact that every frame in the line up has a specific rear end length with all frames increasing the chain stay length as you go from Expert through to the Pro 23. Other manufactures save money by utilising the same moulds in their Pro sized frames, but Meybo sees the benefit of lengthening the bike overall leading to a holistic design execution.

2025 also sees the introduction of matching colours in the carbon SD fork range, with forks suitable for both the Expert and Pro frames (including cruiser). Grab these to complete the full package.

Frame Specs

Model	2025 Meybo HSX Pro XXL
Frame Material	UD Carbon Formed Tubes
Top Tube Length	22 Inch
Chainstay Length	15.20 Inch
Bottom Bracket Height	Not specified by manufacturer
Head Angle	74 Degree
Seat Angle	71 Degree
Head Tube Type	Tapered 1-1/8th- 1.5 Inch
Wheel Type	406mm (20 x 1.5 to 20 x 1.90 tyres)
Bottom Bracket Type	BB386
Seat Tube Diameter	27.2mm
Seat Clamp Diameter	31.8mm
Brake Type	Disc – Flat Mount
Dropout type	Fixed – 15mm Thru-bolt
