Meybo 2025 Holeshot Mini Frame

We swear that every year these Meybo Holeshot frames get better looking. With a number of race seasons under their belt, the Holeshot range of 6061 T-6 multiple butted hydroformed frames are seen the world over proving that this Dutch firm know how to dominate a pack.

All new colours for 2025, and while design and function, along with strength and a lightweight design are paramount in the world of BMX racing, we are suckers for a beautiful, and minimal, finish. While the Meybos meet all of the criteria of a race winning design, just as important is that they look as cool as they do. A frame doesn’t need to shout about fluid dynamics and materials used in production, a simple Meybo decal is all it needs. The Holeshot frames are light, stiff and manufactured to a level that when you’re building one, all of the components bolt straight up, no fuss.

The 2025 range are disc only, which is now the norm for BMX race frames. They provide strong, precise braking, with minimal maintenance required. They are set and forget compared to V-brakes and we’re converts here at LUX despite being a little sceptical when disc brakes first started to make an appearance on the BMX scene.

Other touches that you would expect on a frame at this level is internal brake hose routing and all of the mounting hardware for the dropouts and caliper mount. On the smaller frame, it’s a 10mm dropout (with 8mm chain tensioners also included), while the Pro frames all have both 10mm and 15mm dropout options.

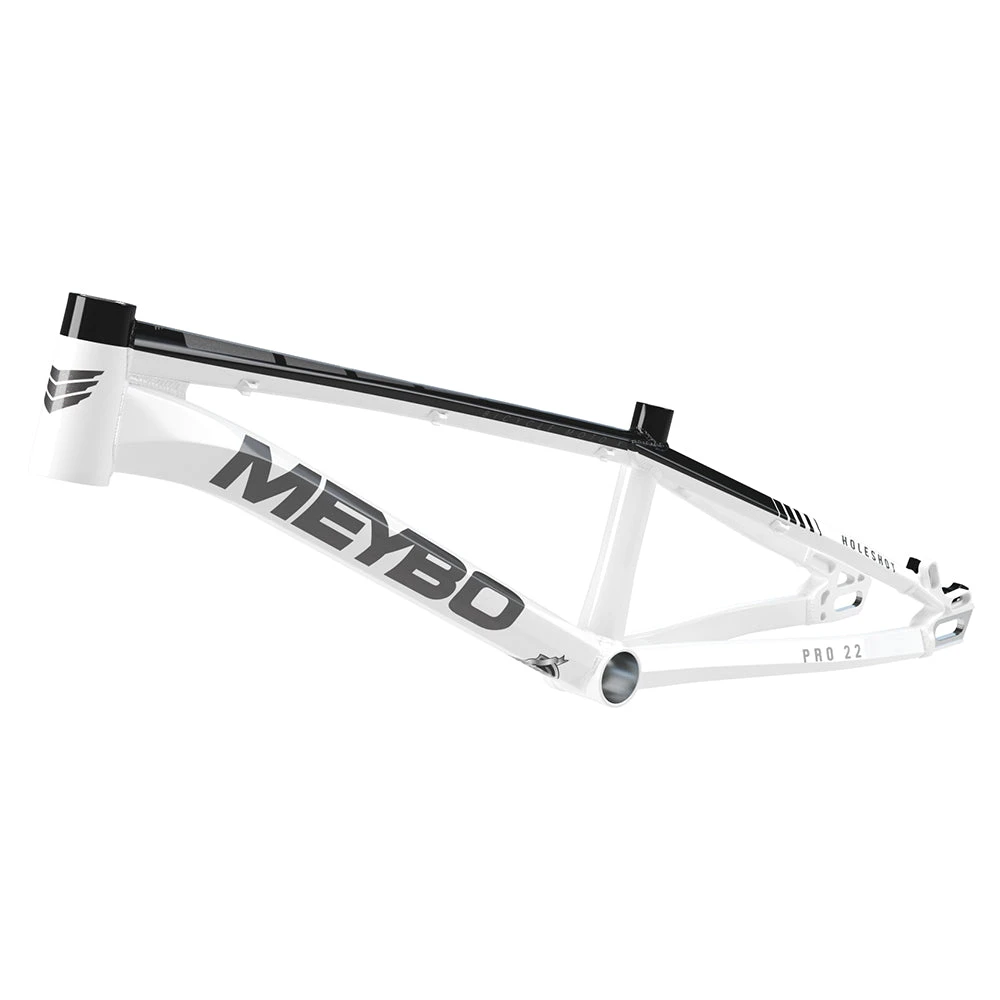

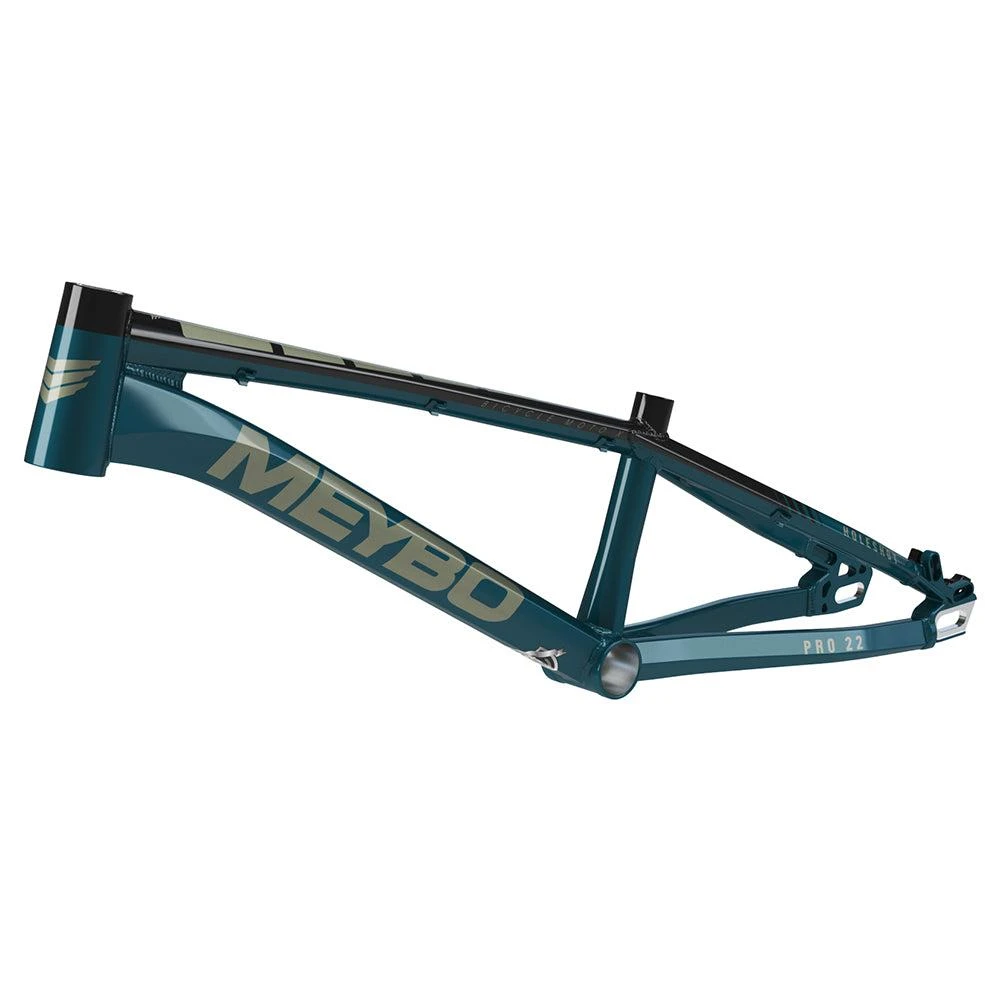

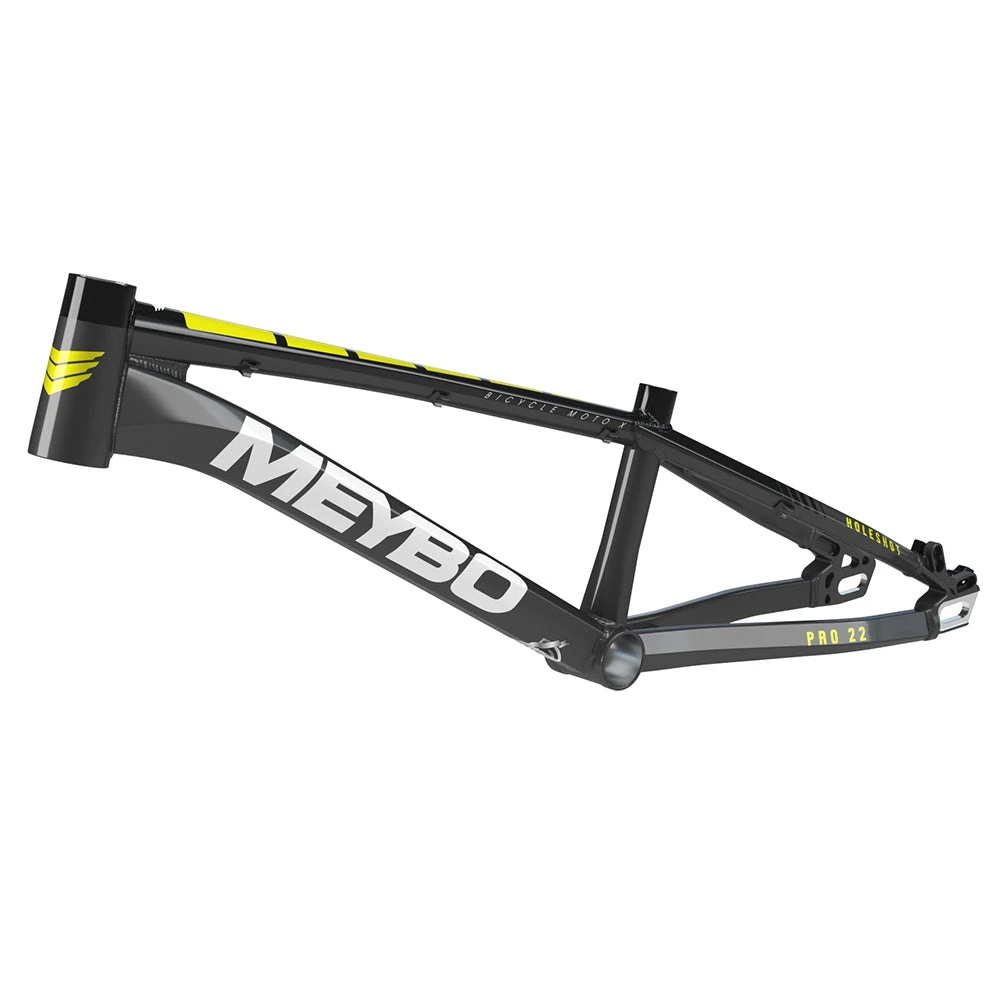

* The head tube on this mini frame is 1 inch, and the BB is Euro. Images provided are for colour reference only and show Pro frames.



Model	2025 Meybo Holeshot Mini
Frame Material	6061 T-6 multiple butted hydroformed tubing;
Top Tube Length	17.7 Inch
Chainstay Length	13 Inch
Bottom Bracket Height	Not Supplied
Head Angle	73 Degrees
Seat Angle	70 Degrees
Head Tube Type	1 Inch
Wheel Type	451mm (20 x 1-1.8th / 1-3/8th)
Bottom Bracket Type	Euro
Seat Tube Diameter	22.2mm
Seat Clamp Diameter	25.4mm
Brake Type	Disc (Post Mount Caliper)
Dropout type	10mm Slotted
