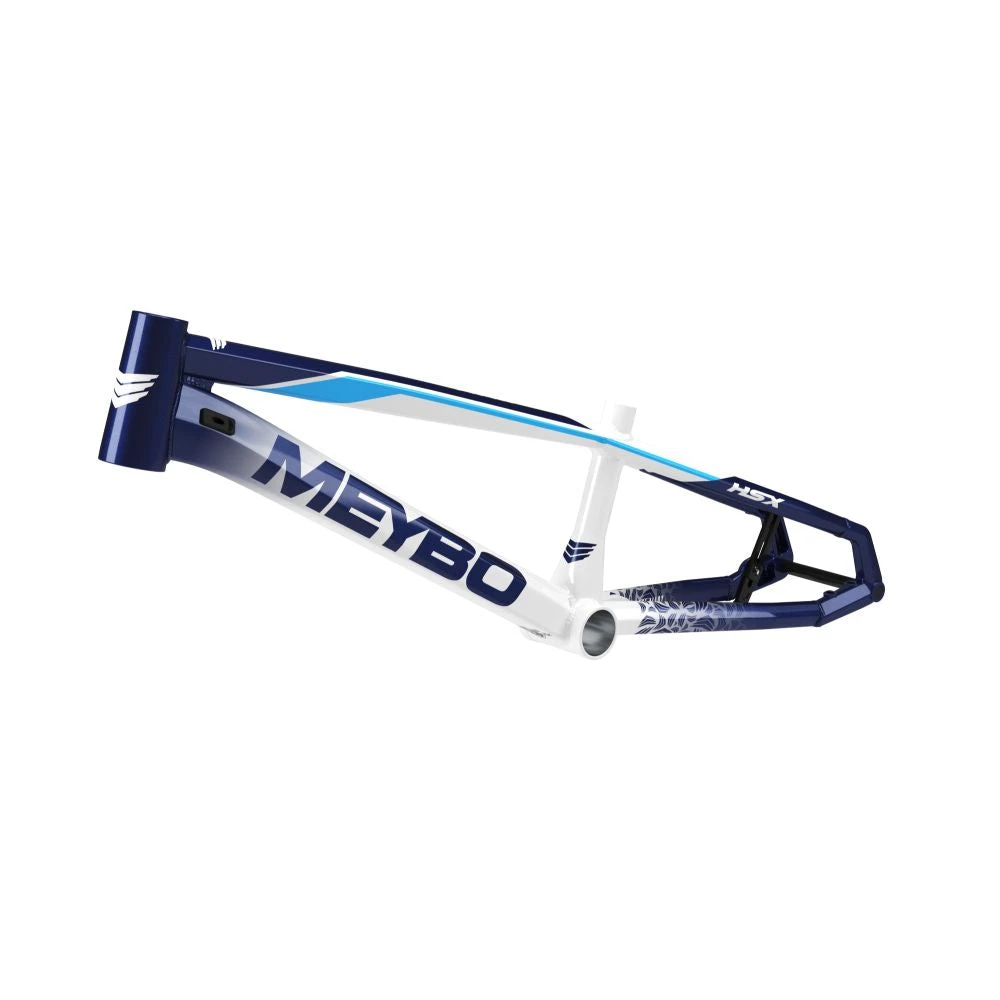

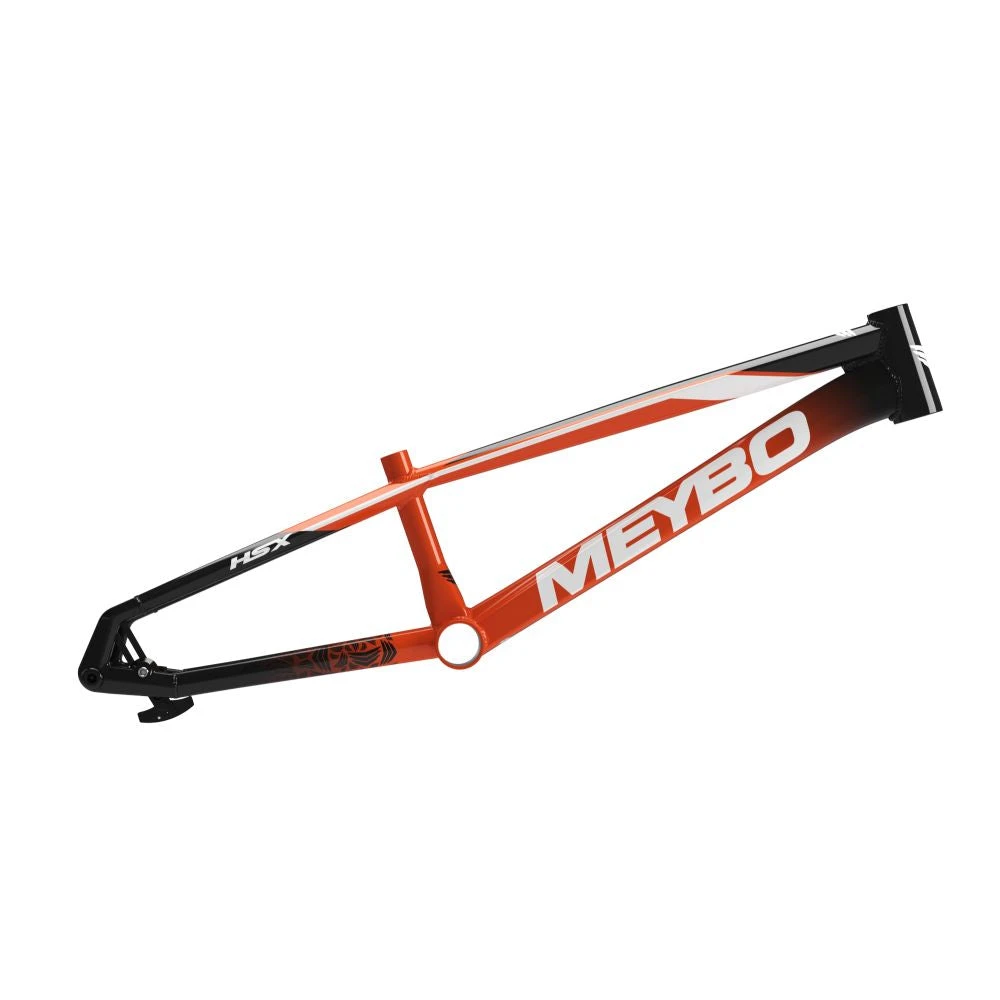

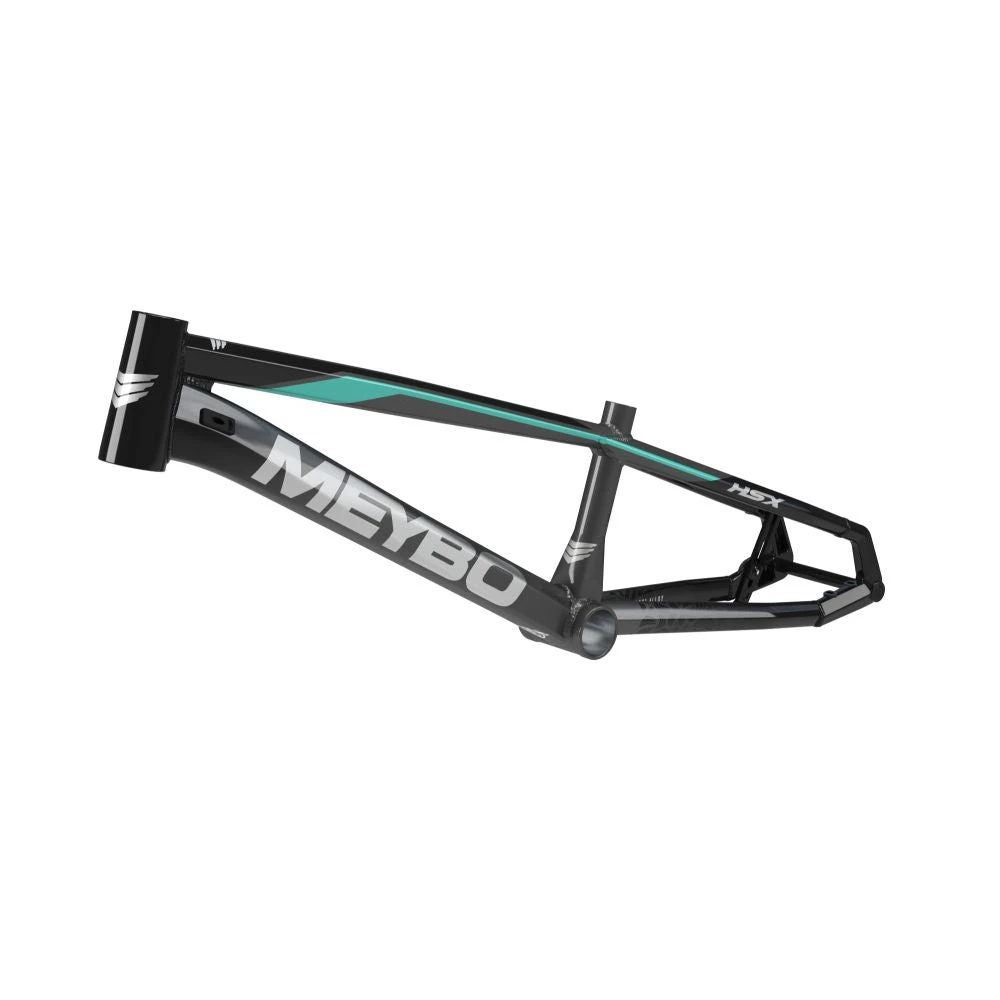

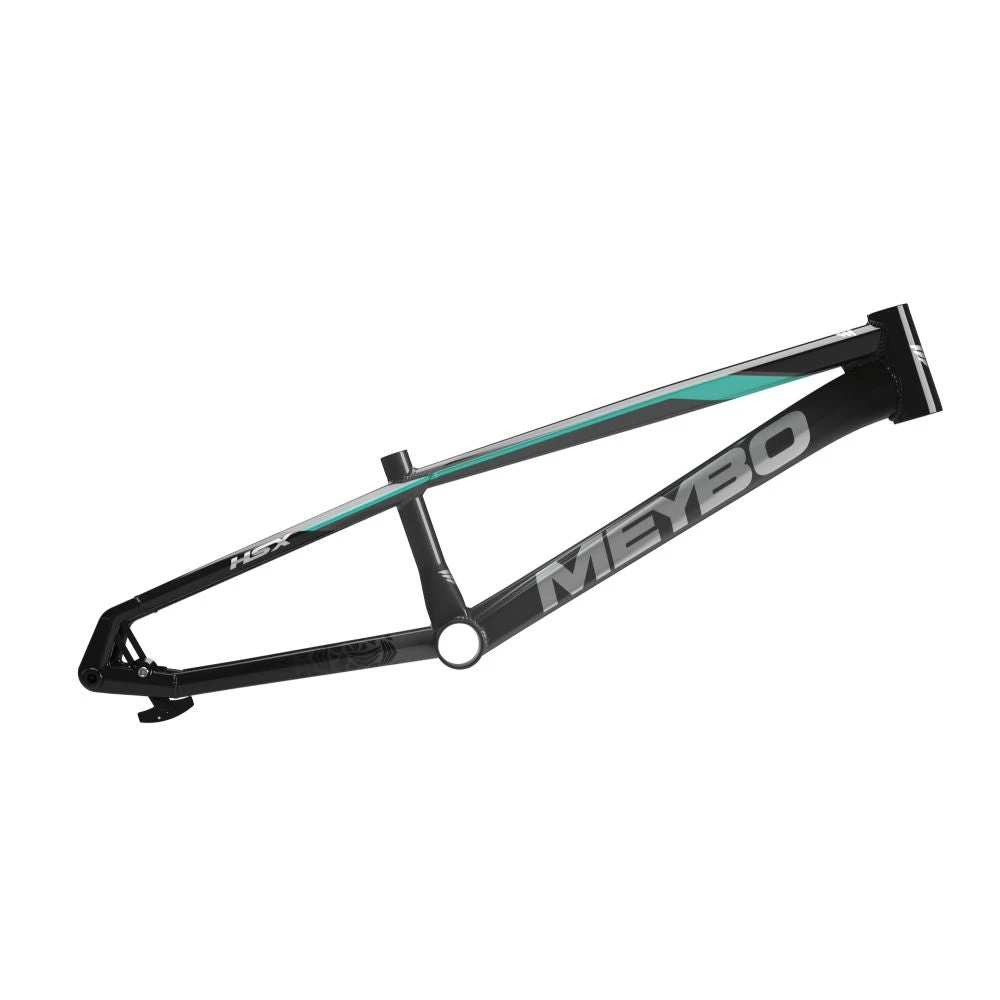

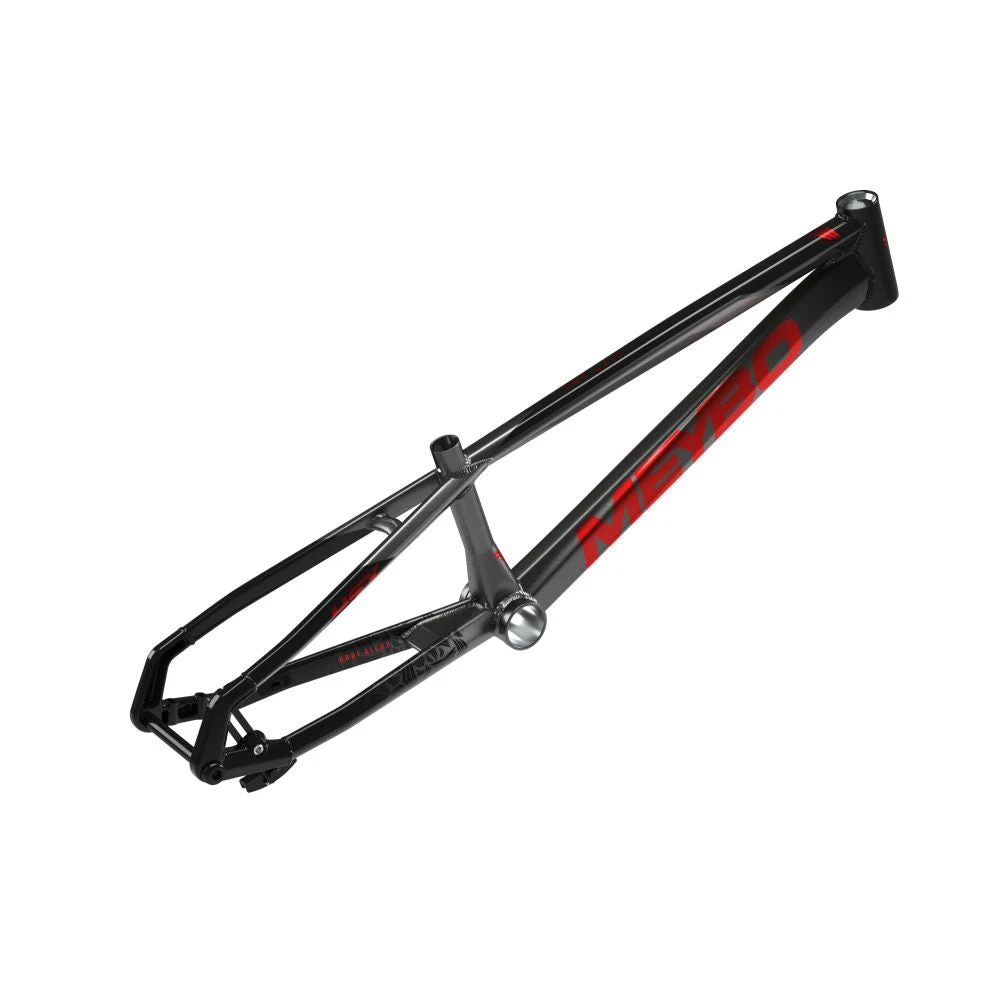

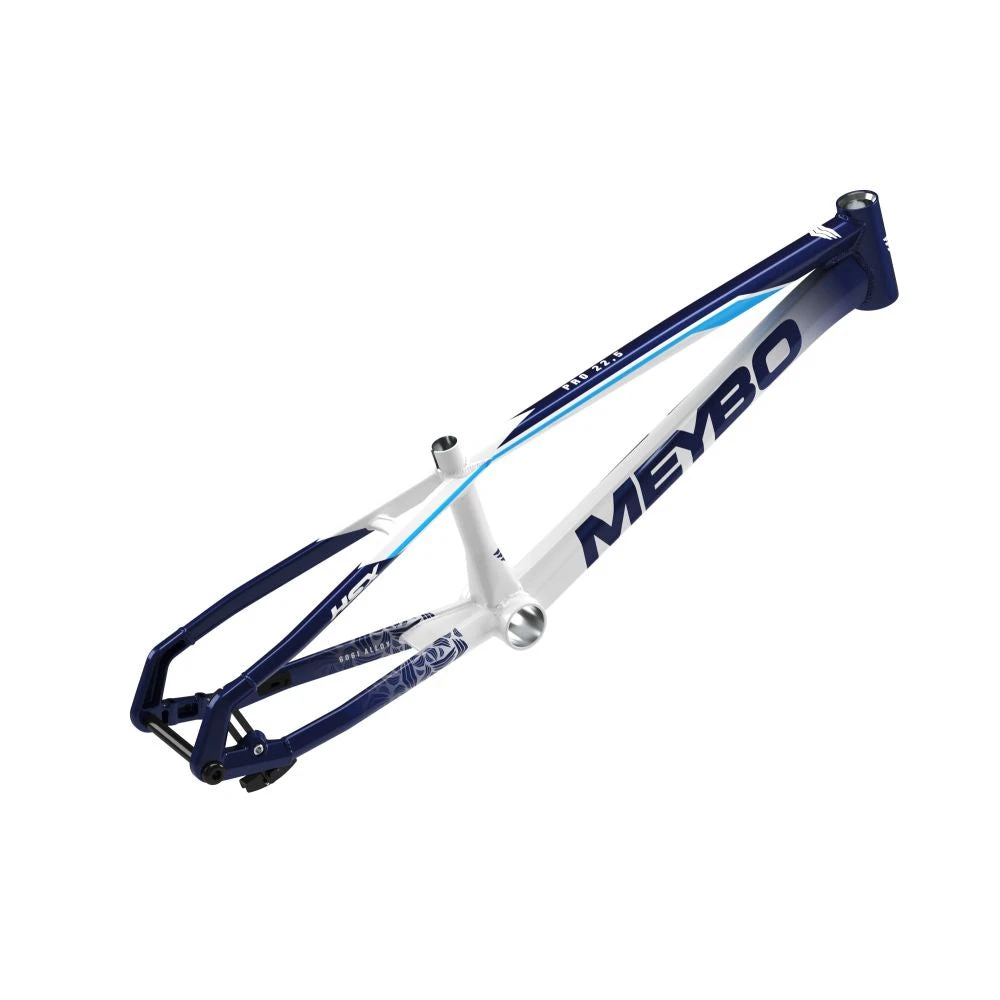

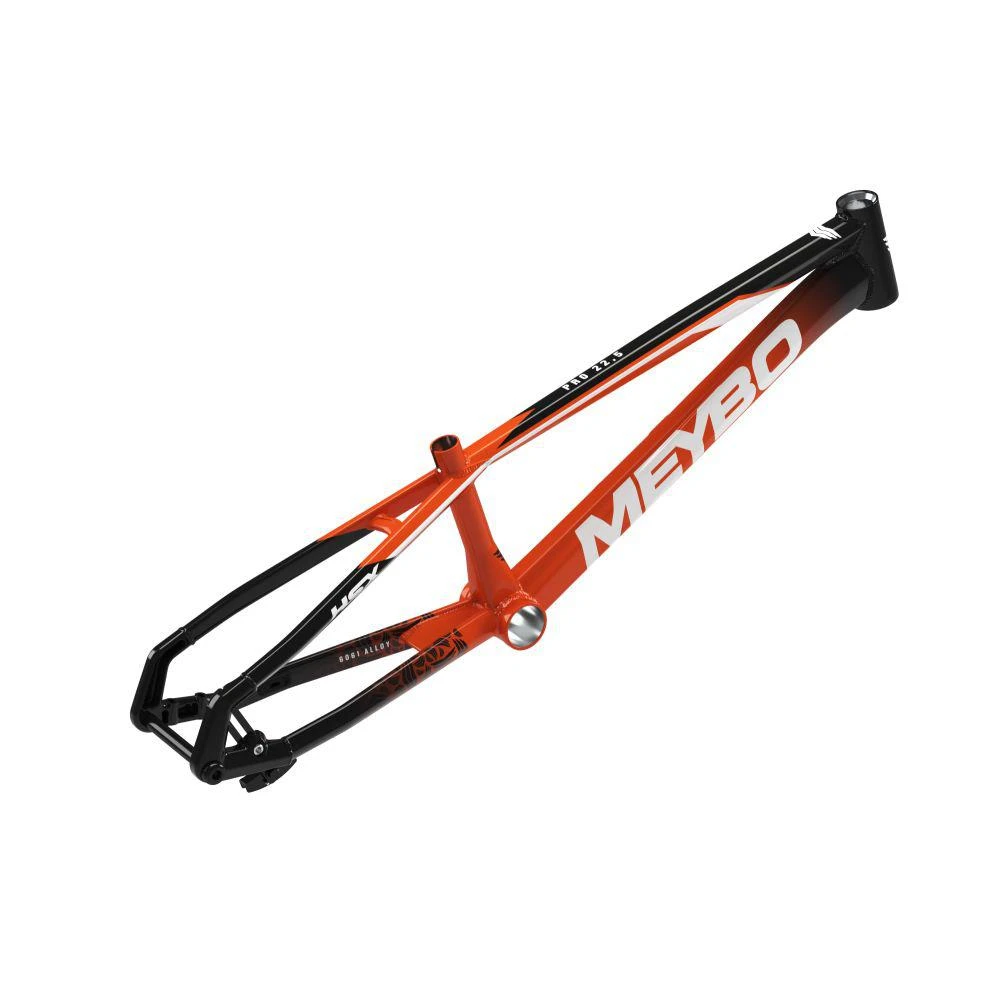

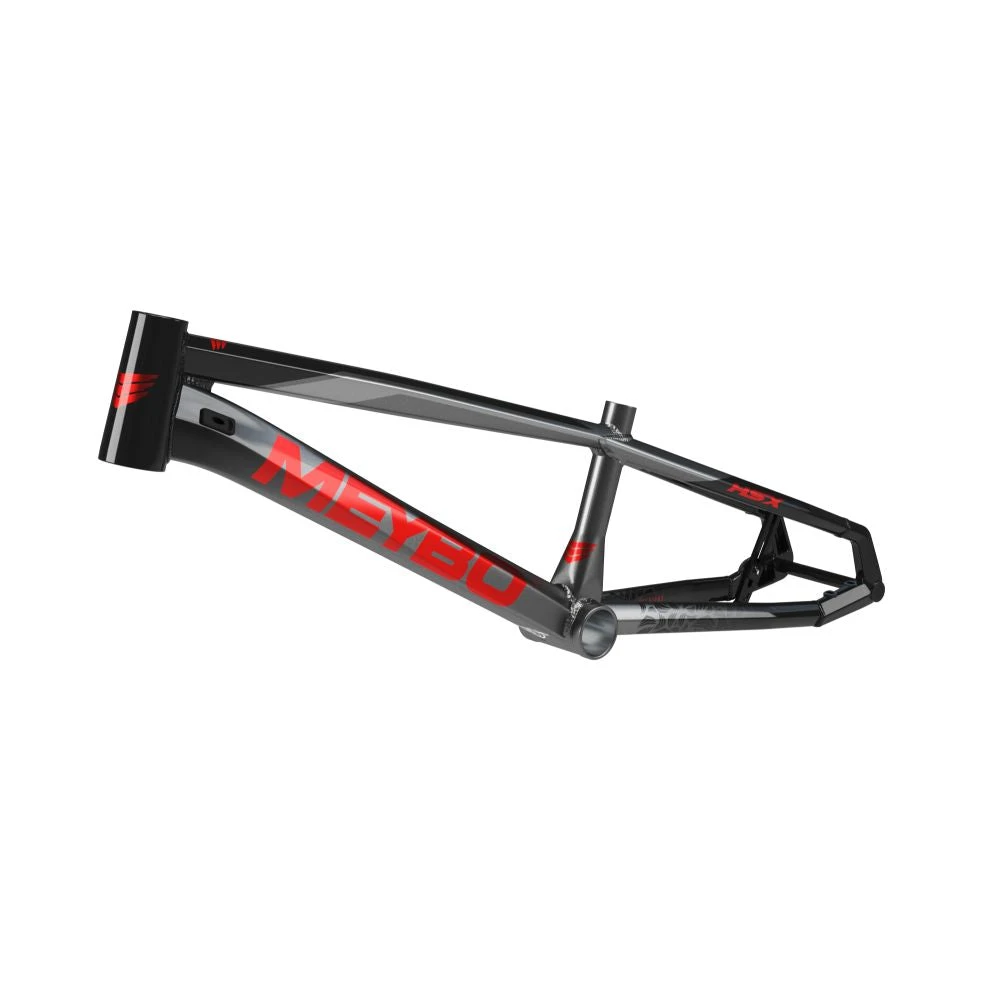

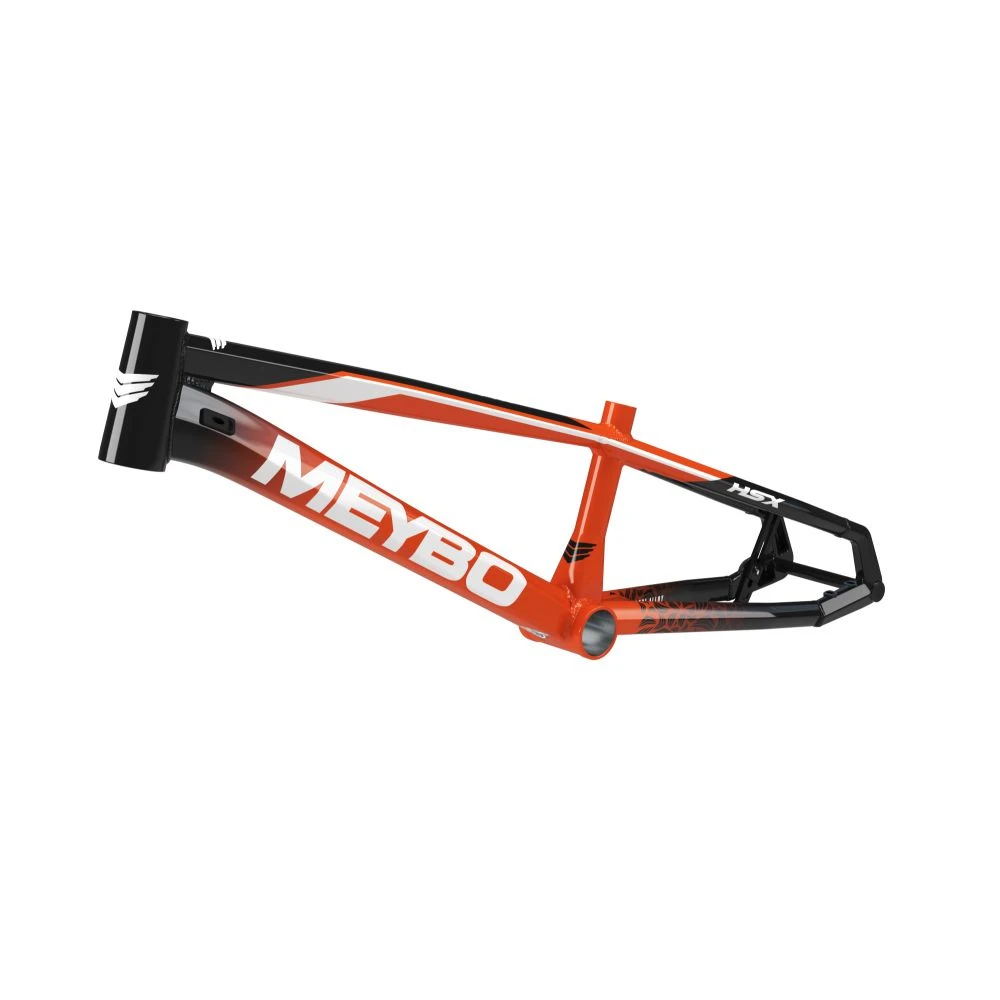

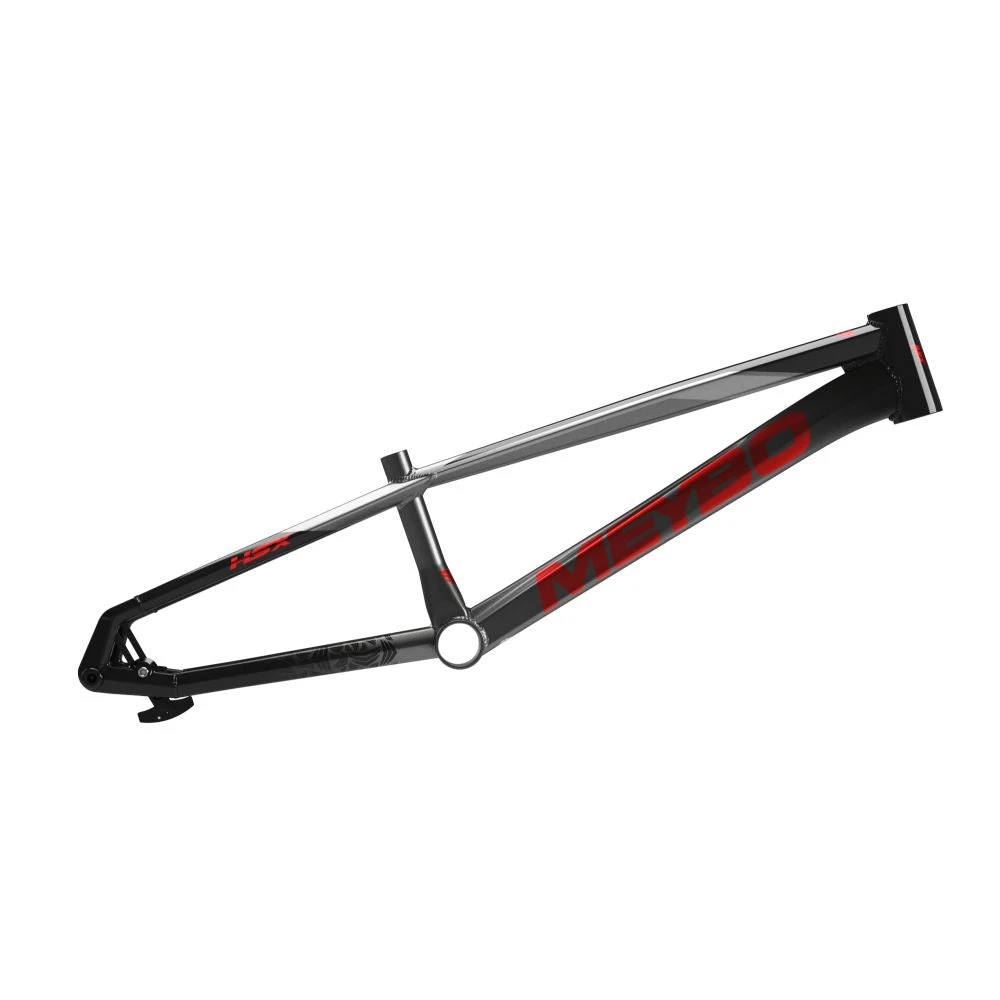

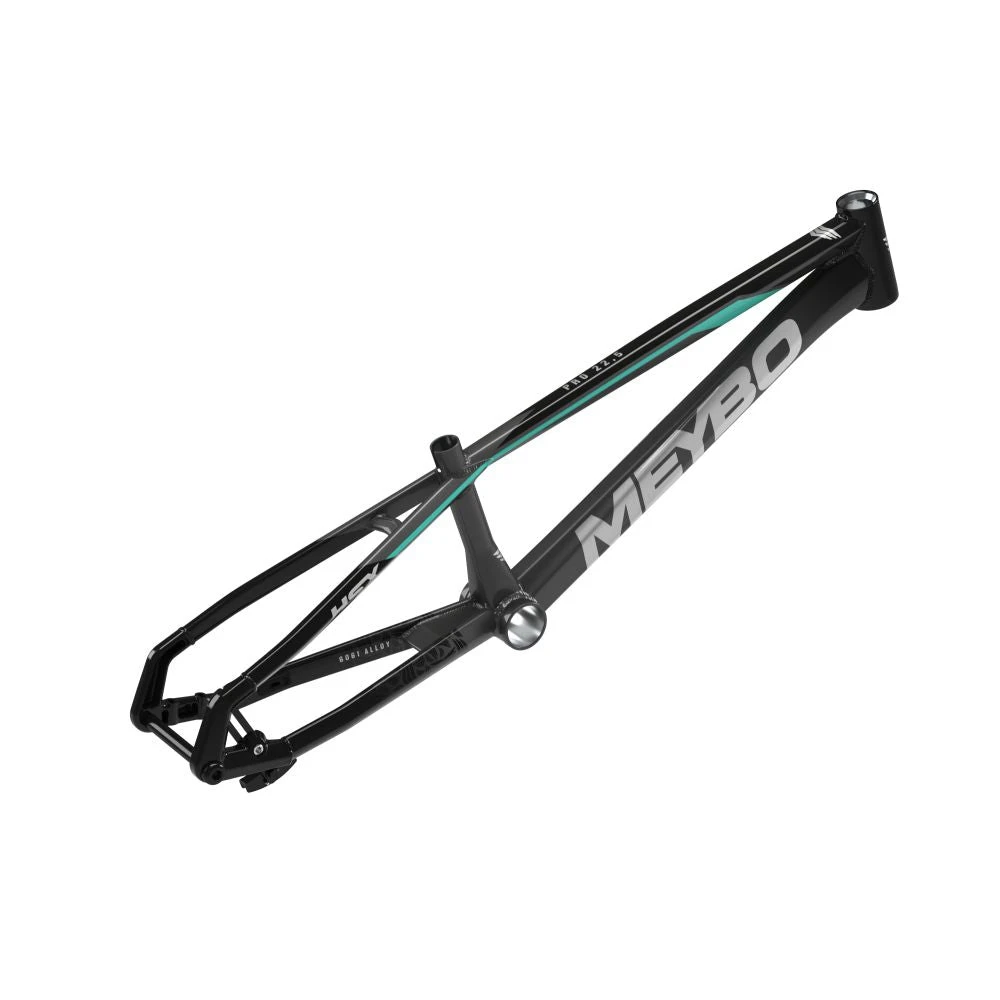

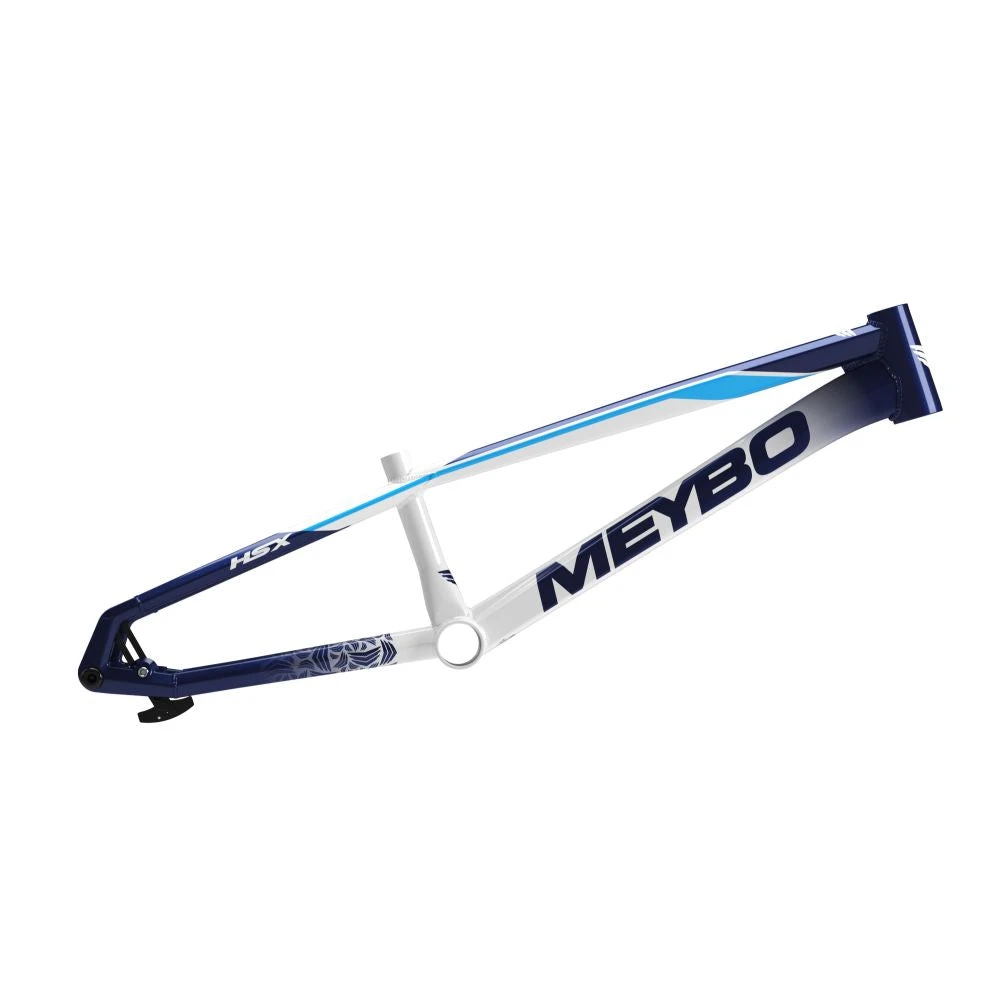

Meybo 2025 HSX Alloy Pro XXL Frame

This HSX frame is the aluminium version of the extremely popular Meybo carbon HSX that mimics the geometry and specifications of its more expensive sibling, with only a very small weight penalty. So small that when built, the difference would be negligible.

Sitting around half the price of the carbon frame, the Meybo HSX alloy frame doesn’t sacrifice in the way of features. Manufactured from 6061 T-6 multiple butted hydroformed tubing and utilising the same fixed dropout system and flat mount disc caliper set up, it brings to the gate the same simplistic design that has seen the HSX series become popular on the UCI circuit. And not just favoured buy the Dutch, riders all over the world appreciate the ease at which gearing changes can happen.

We love these Meybo frames for their simple clean graphics that state perfectly their no nonsense approach to winning. Touches like full internal cable (hose) routing makes building these frames up child’s play. Plus it looks so clean! Make no mistake though, the HSX range has all the attributes of dialed geometry, stiffness and proven on the track performance.

This aluminium HSX frame isn’t the poor cousin of the carbon frame, it’s an astute choice for the racer that will likely put the savings towards other key performance components such as carbon fibre rims and Onyx hubs to build a top shelf BMX race bike capable of competing at the highest level of BMX.

The 2025 HSX alloy frame could be the smartest choice when building a high end race rig as the savings over its carbon cousin can be dropped on a wheel upgrade. And after building a number of HSX race bikes for customers over the past few years, you’ll be pleasantly surprised by how quickly, and easily these frames build up.

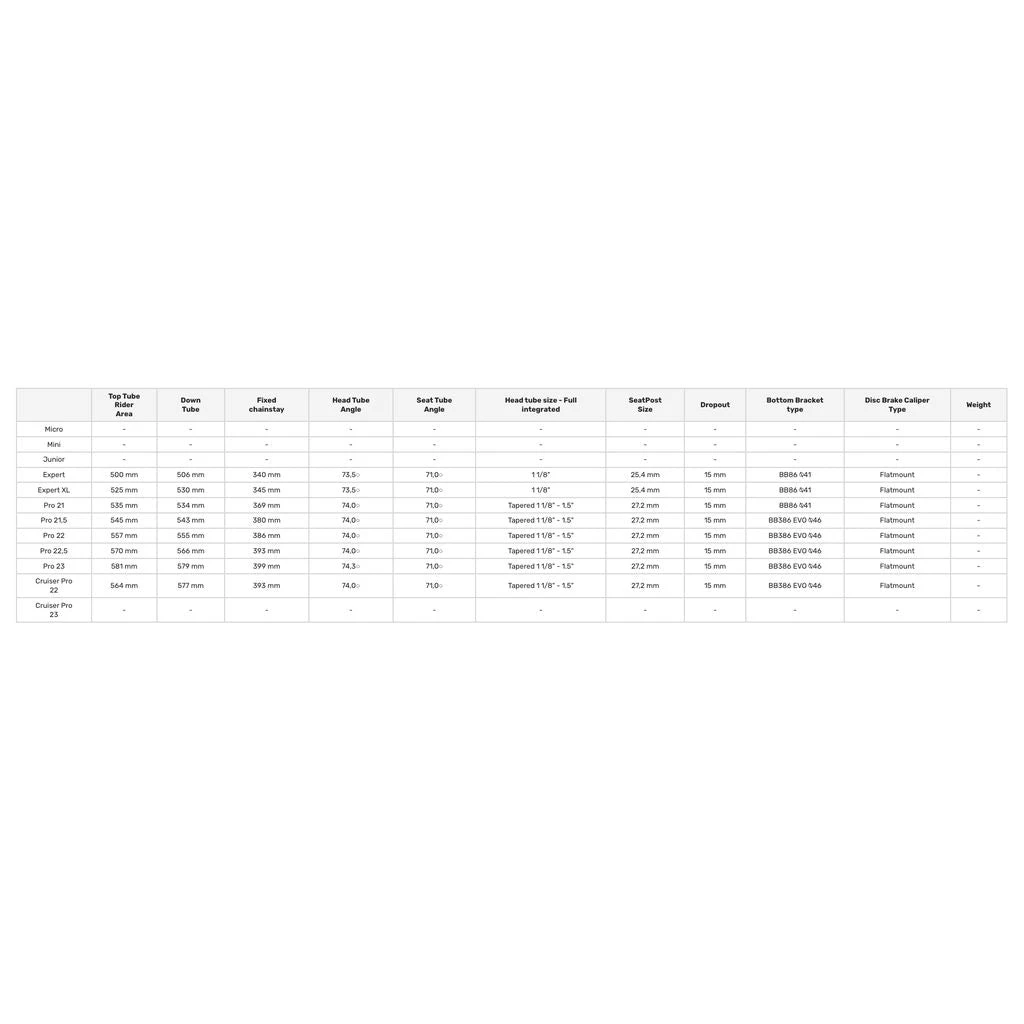

Frame Specs

Model	2025 Meybo HSX Pro XXL
Frame Material	6061 T-6 multiple butted hydroformed tubing
Top Tube Length	22 Inch
Chainstay Length	15.20 Inch
Bottom Bracket Height	Not specified by manufacturer
Head Angle	74 Degree
Seat Angle	71 Degree
Head Tube Type	Tapered 1-1/8th- 1.5 Inch
Wheel Type	406mm (20 x 1.5 to 20 x 1.90 tyres)
Bottom Bracket Type	BB386
Seat Tube Diameter	27.2mm
Seat Clamp Diameter	31.8mm
Brake Type	Disc – Flat Mount
Dropout type	Fixed – 15mm Thru-bolt
