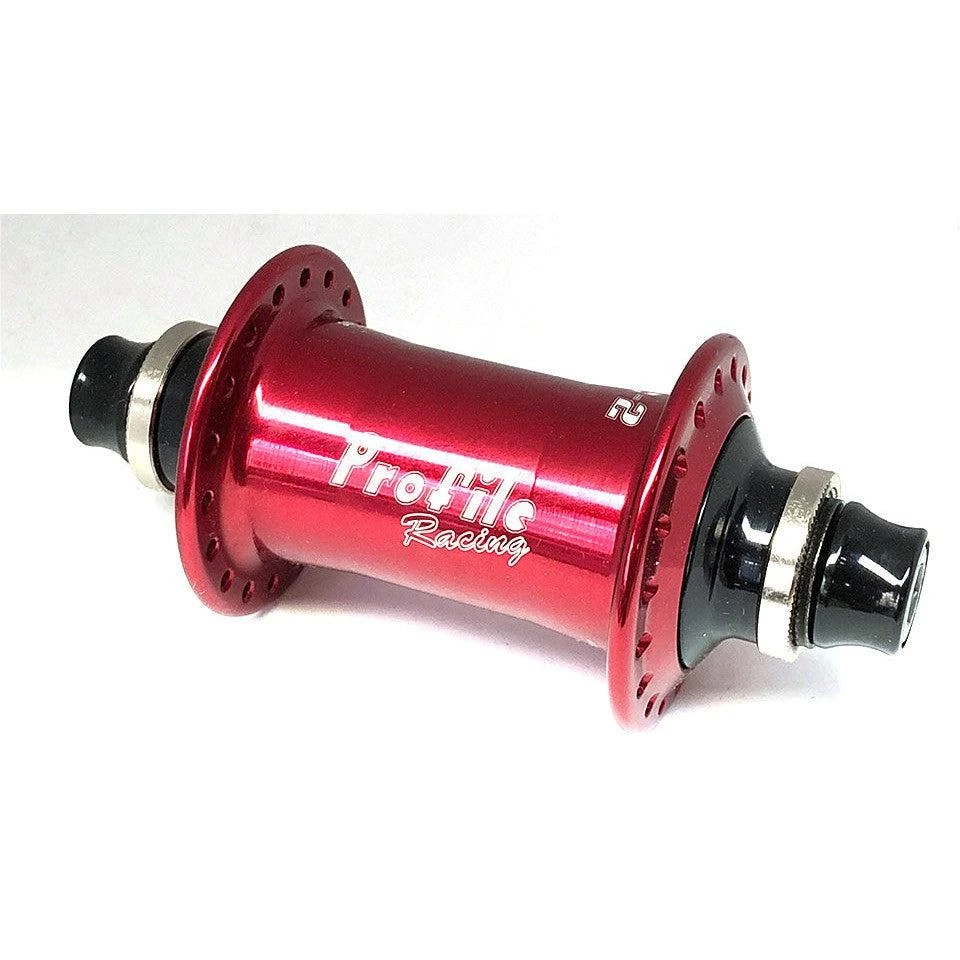

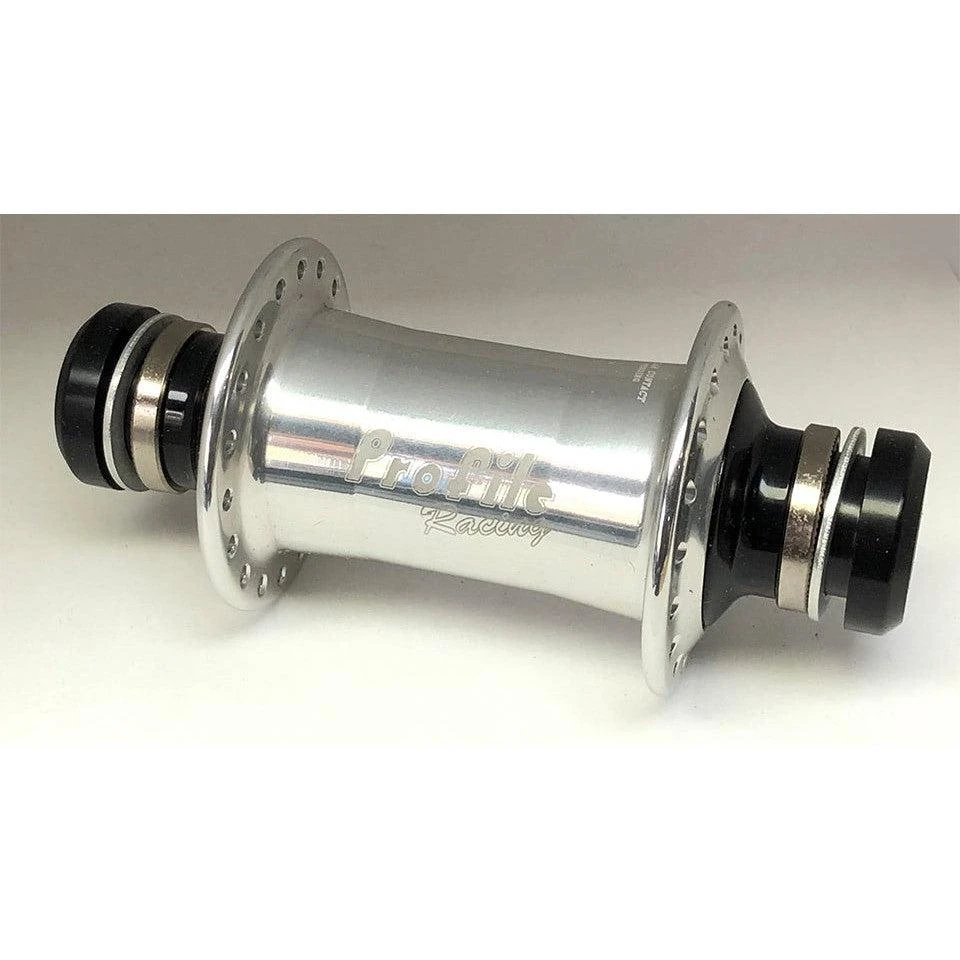

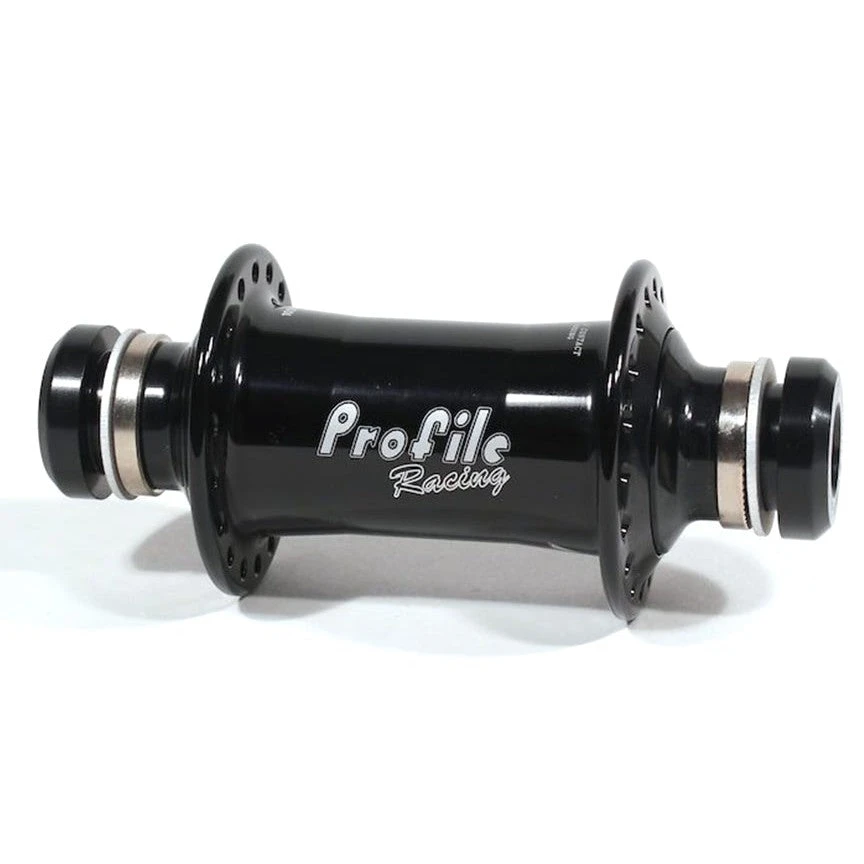

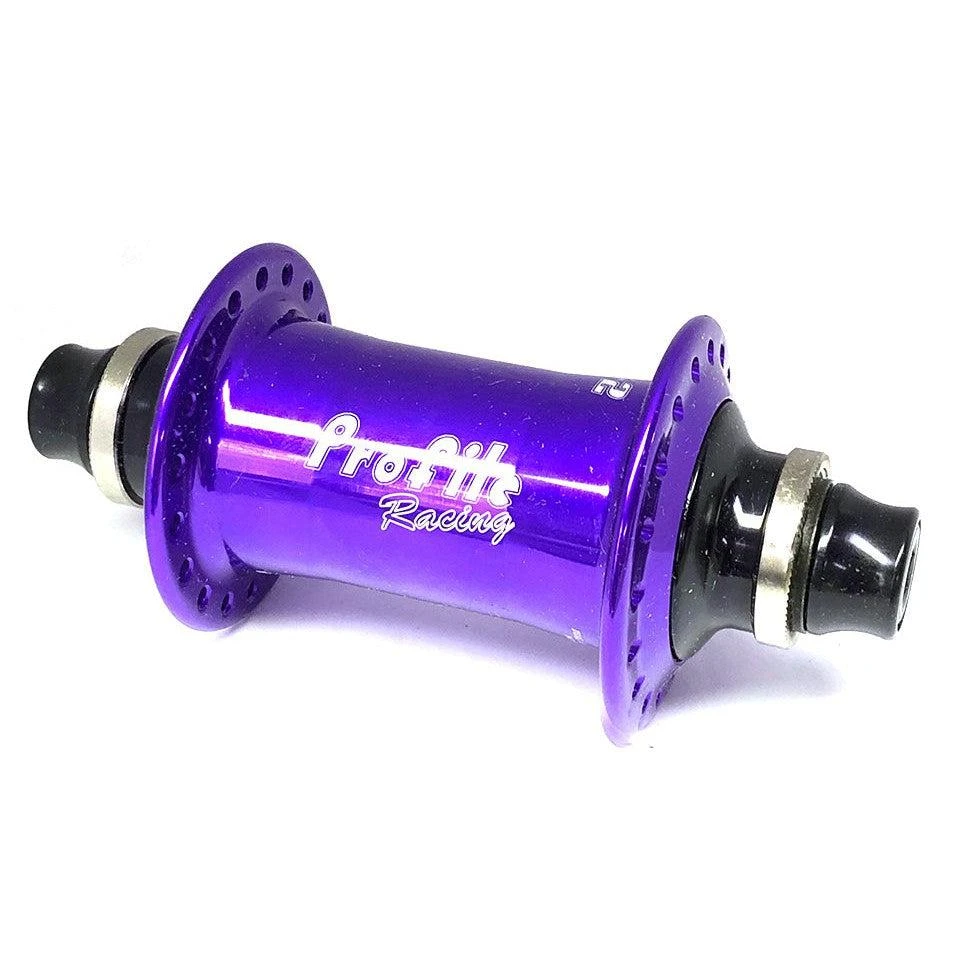

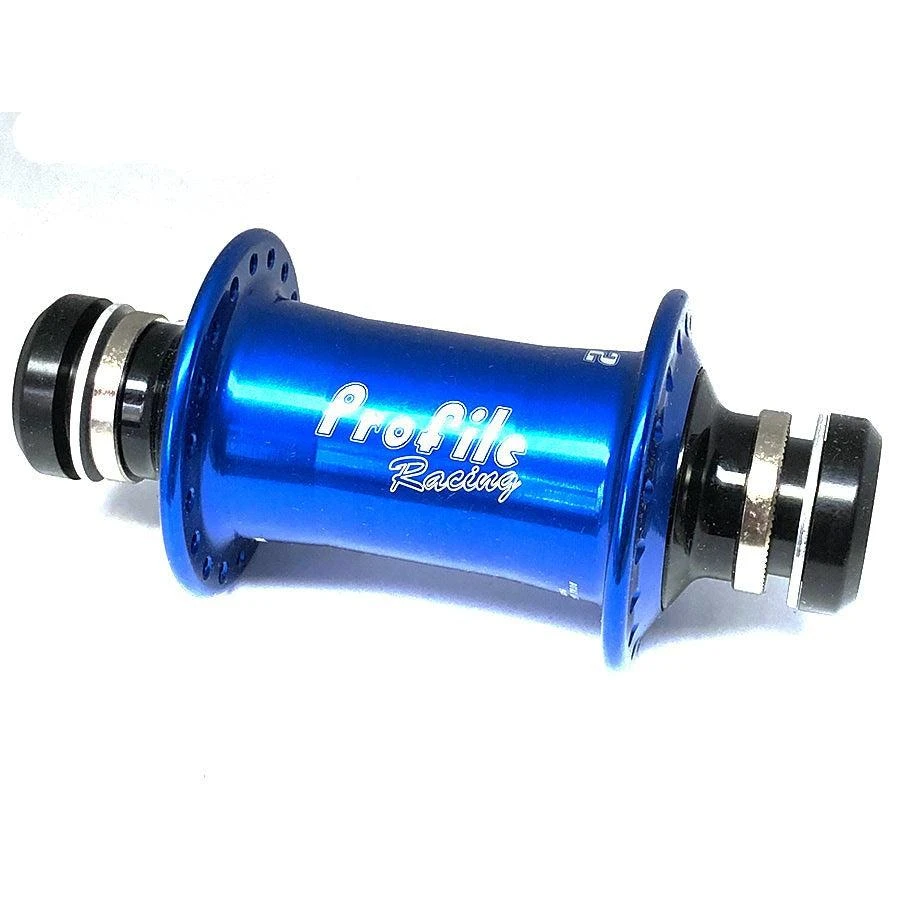

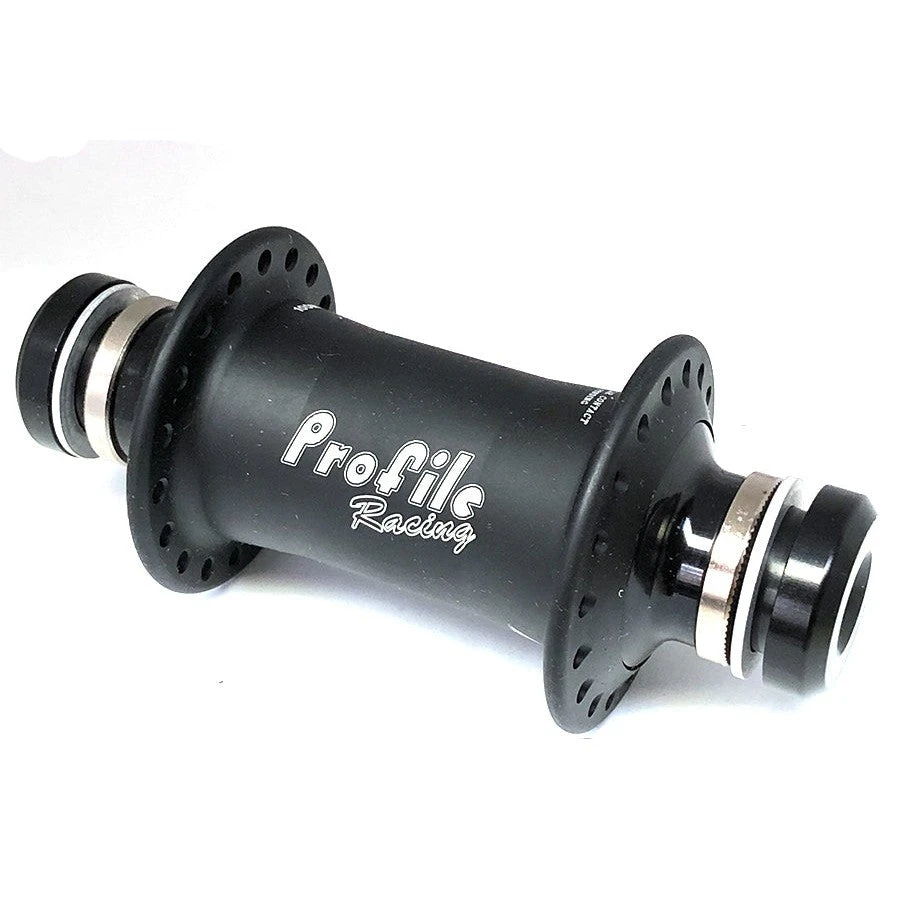

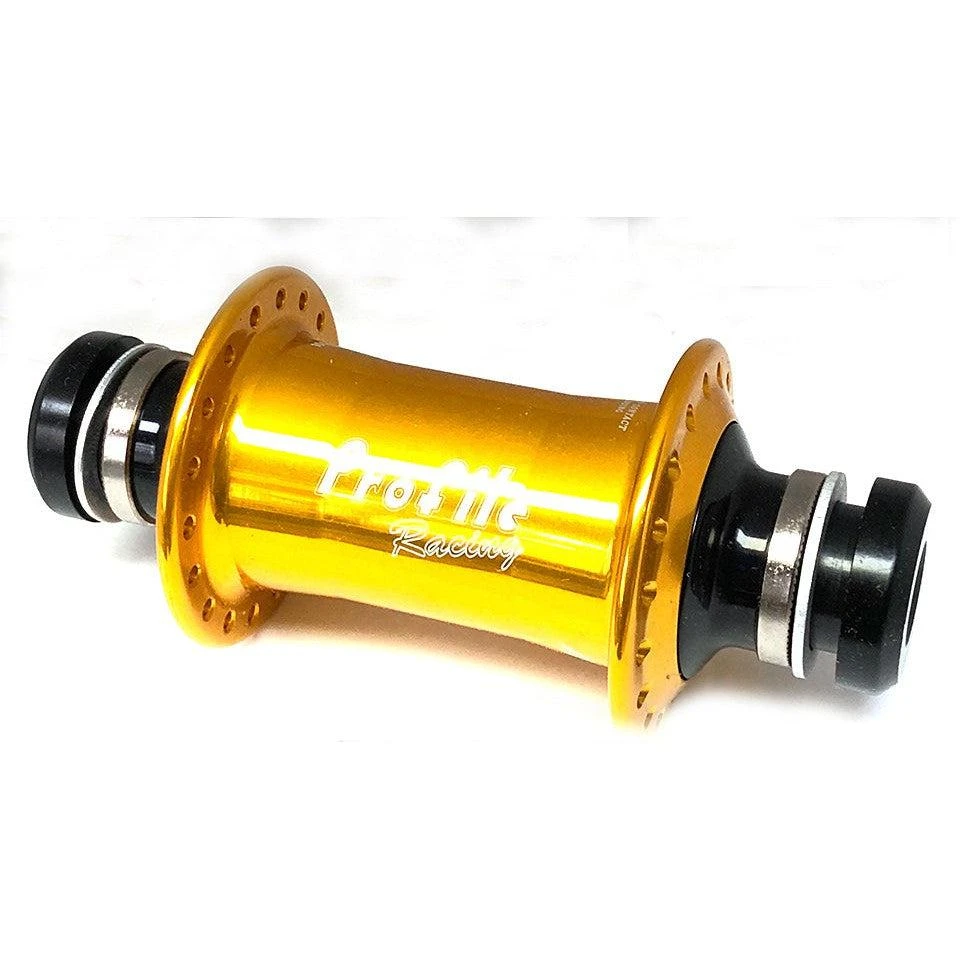

Profile AC-2 BMX Front Hub

The Profile “AC-2” = Dual Angular Contact. This describes the use of both angular contact bearings and angled bearing cups/hub bores used in the hub design.The AC-2 hub features revolutionary bearing installation and function never seen before in a bicycle hub.It has been designed from the ground up for ease of maintenance and optimal bearing performance.

* The AC-2 hubs use 20mm Angular Contact bearings with a wave spring pre-load. Bearings are pressed into tapered cups that mate with the angled bores machined into the hub shell. This design feature allows bearing/cup to be easily installed and removed from hub shell without any special tools. No more presses or hammers needed! Another attribute of the tapered bearing cup/angled hub shell bore design is how the bearings seat in the hub. The bearings/cups on each side of the hub shell are in perfect alignment with each other! This ensures superior bearing performance and less chance of premature wear.

* Hub shell literally “floats” on the axle. The only force on the bearings is supplied by the wave spring(which     delivers the appropriate bearing pre-load needed for angular contact bearings). Tightening of axle bolts has  absolutely no affect on the bearings!

* The bearings, wave spring, and shim(s) are secured on the axle by one retaining ring. The only tool used to assemble/disassemble the AC-2 hub is a pair of snap ring pliers!

* Profile Racing does offer a simple tool to aid in retaining ring installation and bearing/cup removal, but is not necessarily needed.*

* The AC-2 BMX hub has a true 20mm bolt-on hollow aluminum axle.

* You have a choice of either 10mm socket head(steel or titanium), 10mm summary head(steel or titanium), 15mm alum, or 20mm alum bolts when ordering your hub. This hub can be used with any standard chromoly, aluminum, or carbon frame.

* The Profile Racing AC-2 hub is manufactured from a high grade, aerospace quality billet aluminum.

* Front and Rear hubs sold separately.

* Ceramic Hybrid bearing option available for hub shell bearings.

* Standard BMX 100mm width.

* Made in the USA!

Bolts: 10mm socket head steel, 10mm socket head titanium, 10mm summary head steel, 10mm summary head titanium, 15mm aluminum, 20mm aluminum

Bearings: Steel 20mm angular contact, Ceramic Hybrid 20mm angular contact

Weight: 220g (weighed w/20mm bolts)

Dimensions:

• Flange diameter – 47.5mm
• Axle width (Locknut to Locknut) 100mm
• Flange to locknut – 19mm



** Please note, due to Profile’s anodising process, colours can be slightly miss matched.
