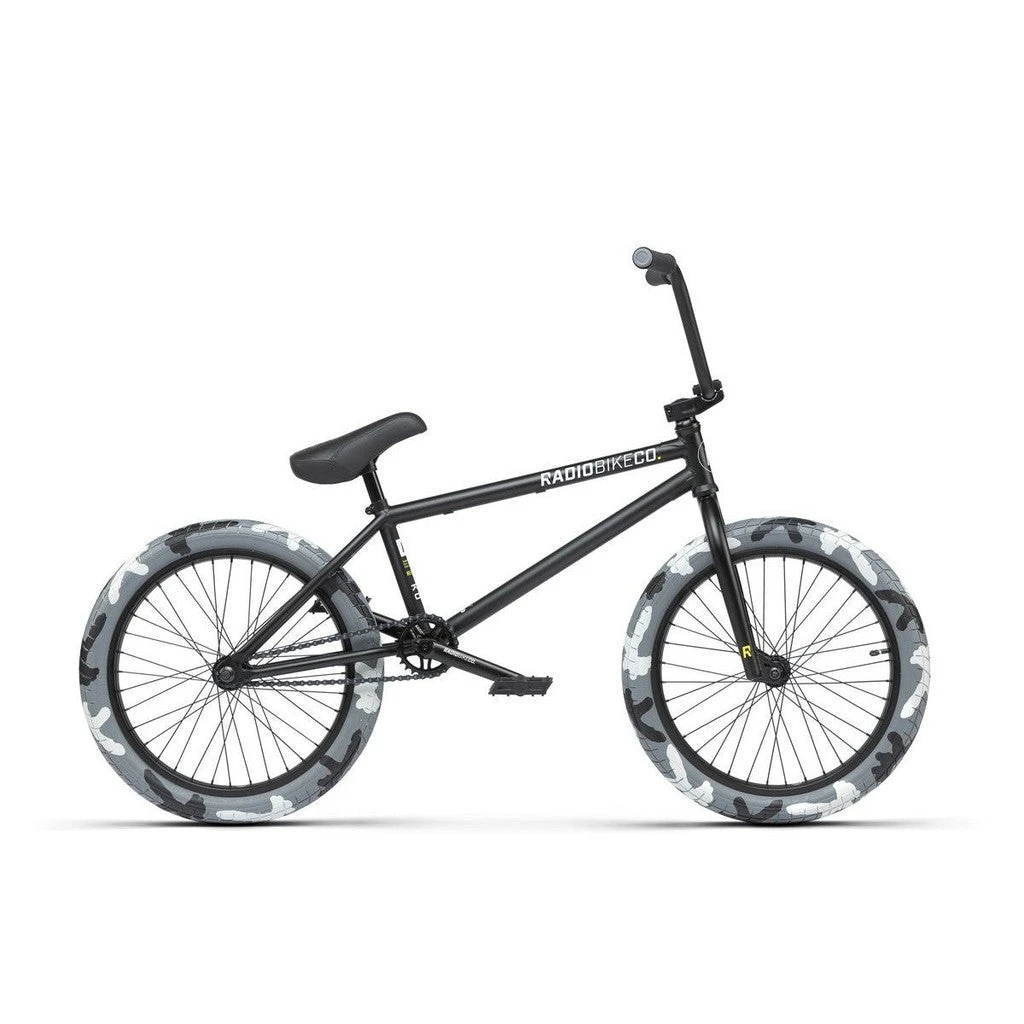

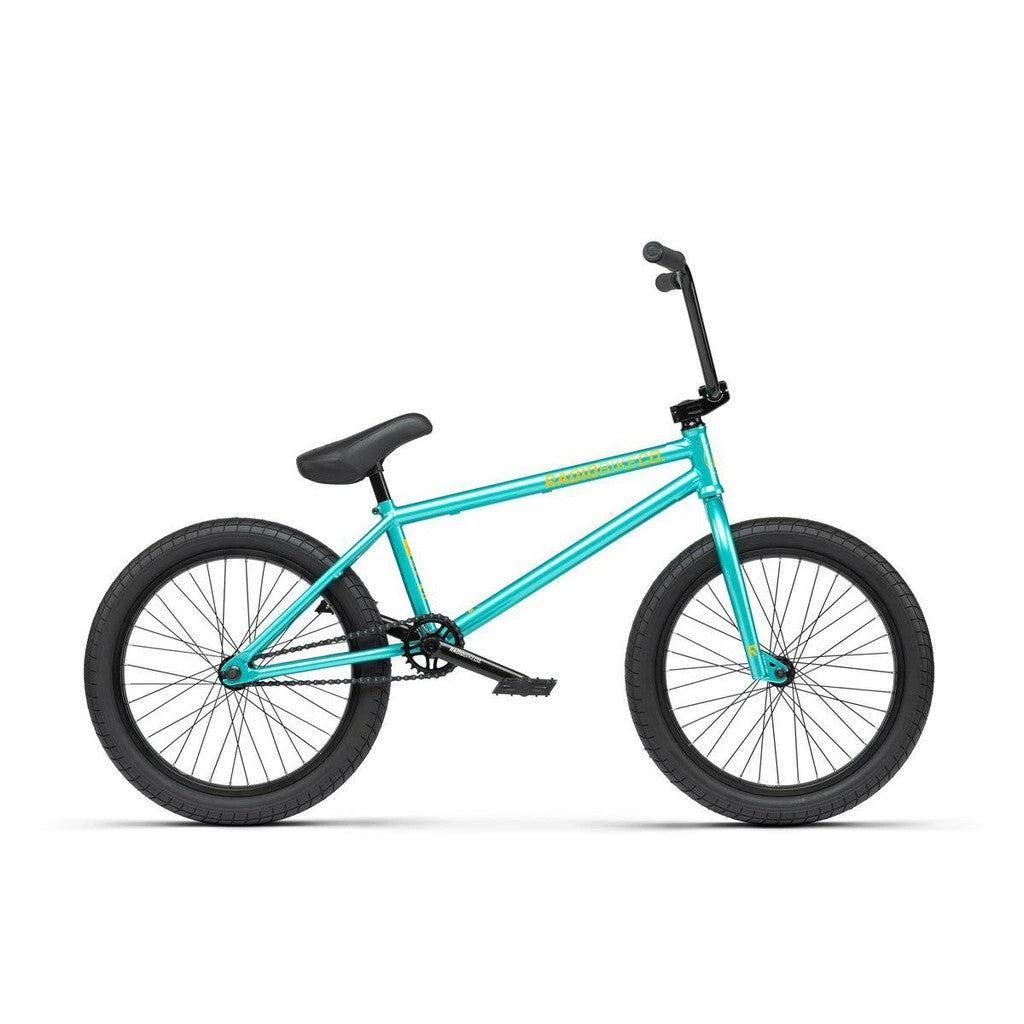

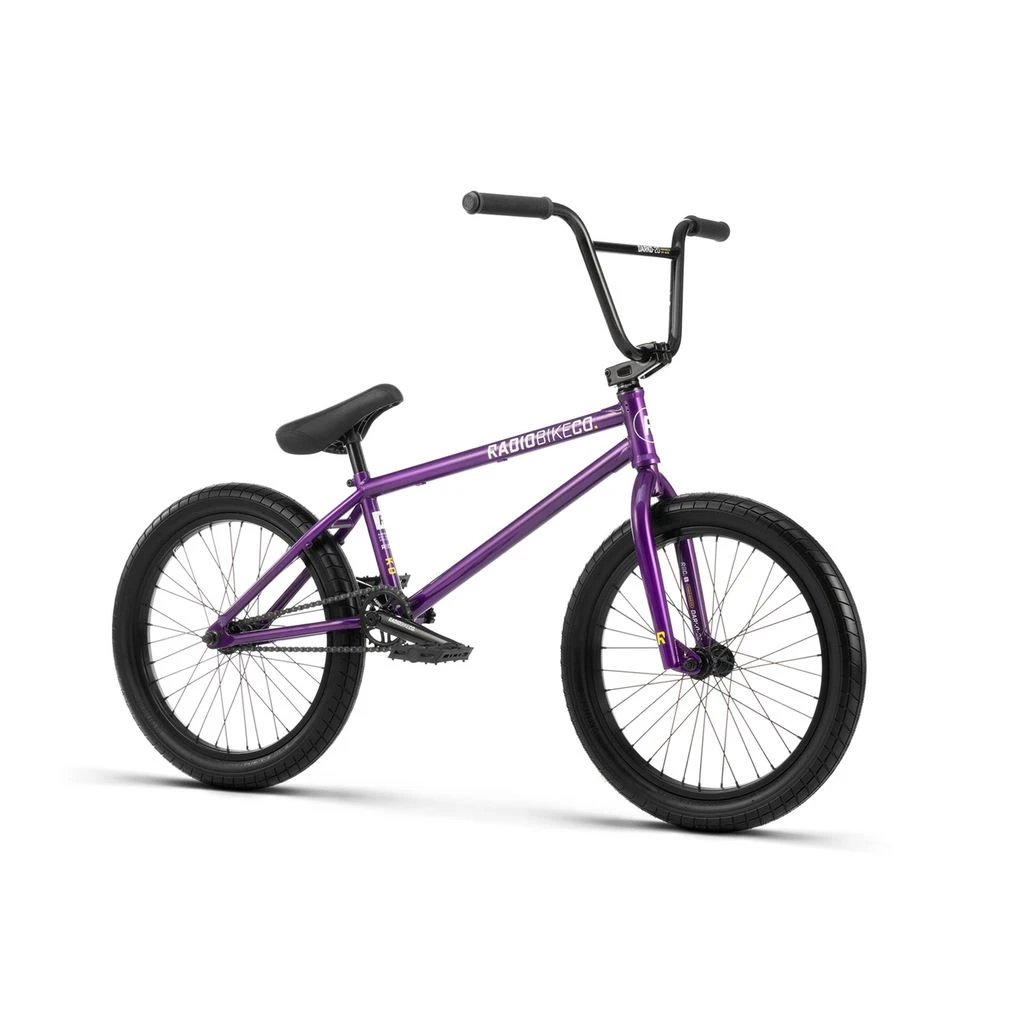

Radio Darko 20 Inch Bike

Radio Darko 20 Bike

Rip the fattest skids in your street with one of these burly shred-sleds from Radio! They threw in some Salt Burn Tyres in 2.35″” because they know whats up! Built tough with a Chromoly Top Tube and Down Tube in the frame, and Chromoly Three Piece Cranks, you can feel calm and in control on this rig! A Salt Pro Headset gets those bars spinning at blistering speeds and the Radio Pro Pedals will keep your Crocs glued in place. This is a beast of a bike so get out there and start taming it!

FRAME – RADIO “”DARKO”” frame, crmo top tube & down tube, 1020 hi-ten, removable brake mounts & guides
FORK – RADIO “”AM”” fork, 1020 hi-ten, crmo steerer, tapered legs
BARS – RADIO “”DARKO”” bar, 1020 hi-ten
GRIPS – RADIO “”AM XL”” grips, 160mm
STEM – SALT “”PRO”” top load stem, 50mm reach
HEADSET – SALT “”PRO”” integrated headset, sealed bearing
GYRO – holes for removable gyro tabs
LEVER – RADIO “”AM”” brake lever, alloy, rear
BRAKES – RADIO “”AM”” u-brake, alloy, rear
CRANKS – RADIO “”AM”” 3pc crank, tubular, crmo, 170mm, 8 spline
BB – RADIO “”MID”” bb set, press fit, sealed bearing
PEDALS – RADIO “”PRO”” pedals, nylon/fiberglass
CHAIN – SALT “”AM”” chain, WZ1 type
SPROCKET – RADIO “”VISION”” sprocket, steel, 25t
DRIVER – cassette driver, 9t, sealed bearing
FRONT HUB – SALT “”AM”” hub, alloy, loose ball, 3/8″”s male axle, 36h
REAR HUB – RADIO “”AM”” cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
FRONT RIM – SALT “”FRACTION”” rim, single wall
REAR RIM – SALT “”FRACTION”” rim, single wall
SEAT – RADIO “”CENTURY”” combo seat, fat padded
SEAT POST –
SEAT CLAMP – integrated seat clamp
TYRES – SALTPLUS “”BURN”” TYREs, 2.35″”, front & rear
WEIGHT – 11.59kg

FRAME/BAR GEOMETRY

TOP TUBE LENGTH – 20.5″” & 21″”
CHAIN STAY LENGTH – 13.2″”
HEAD TUBE ANGLE – 75°
SEAT TUBE ANGLE – 71°
BOTTOM BRACKET HEIGHT – 11.7″”
STANDOVER HEIGHT – 8.6″”/8.9″”

RISE – 9″”
WIDTH – 29.5″”
BACKSWEEP – 12°
UPSWEEP – 2°
