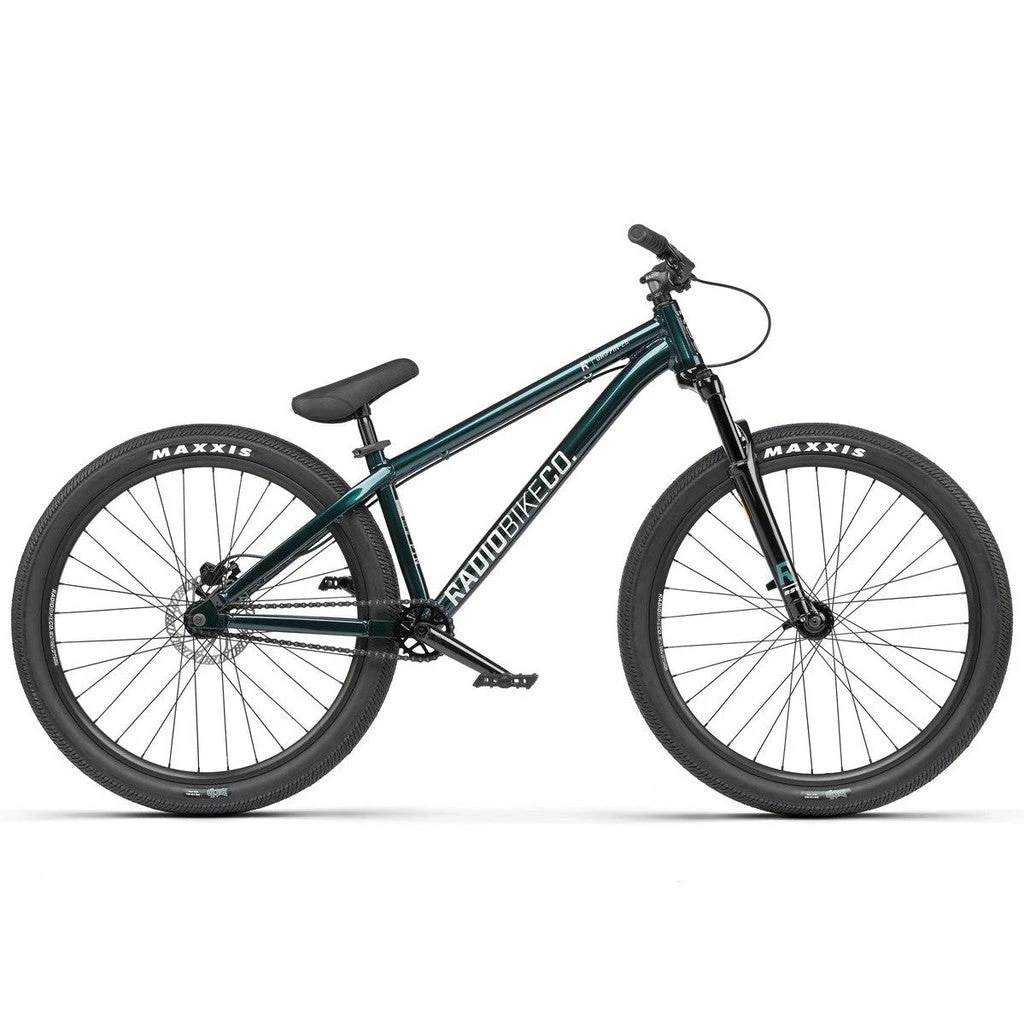

Radio Griffin 26 Inch Bike

Radio Griffin 26 Bike

We don’t need no doors for this Griffin! Just an open track, a gentle breeze, sunny skies and we can let the good times roll on and on! These bikes are built for having a blast and the epic list of parts that Radio have included on this rig ensures it! To get the most out of the ground you float through, Radio have opted for Maxxis DTH Tyres in 2.3, these provide loads of grip whilst still reaching some blistering speeds. SaltPlus Ultra Three Piece Cranks gives your bikes midsection a boost in strength and the Tektro Disc Brakes make skids your new best friend. This rig is ready to shred!



FRAME – RADIO “”GRIFFIN”” frame, 6061-T6 alloy, tapered head tube, forged yoke
FORK – RST “”DIRT RA”” fork, 100mm travel
BARS – RADIO “”ASURA”” bar, 6061-T6 alloy, 31.8mm
GRIPS – RADIO “”FREQUENCY XL”” grips, flangeless, 160mm
STEM – RADIO “”ZOOM”” frontload stem, alloy, 40mm reach
HEADSET – FSA “”NO.42/ACB-A”” integrated A-headset, 1-1/8″”-1.5″”
GYRO –
LEVER – TEKTRO “”RS-360A”” front lever/TEKTRO “”HD-M275″” rear lever
BRAKES – TEKTRO “”ARIES”” mechanical disc brake, 160mm rotor, front/TEKTRO “”HD-M275″” hydraulic disc brake, 160mm rotor, rear
CRANKS – SALTPLUS “”ULTRA”” 3pc crank, TSS, crmo, 170mm, 8 spline
BB – RADIO “”BSA19″” bb set, sealed bearing
PEDALS – RADIO “”SLIM”” pedals, nylon/fiberglass
CHAIN – SALT “”AM”” chain, WZ1 type
SPROCKET – SALT “”GATEWAY”” sprocket, alloy, 25t
DRIVER – cassette driver, 10t, sealed bearing
FRONT HUB – RADIO “”PRO-DJ”” disc hub, alloy, sealed, 3/8″”s male axle, 32h
REAR HUB – RADIO “”PRO-DJ”” disc hub, alloy, sealed, 3/8″”s crmo axle, 32h
FRONT RIM – RADIO “”DB32″” rim, double wall
REAR RIM – RADIO “”DB32″” rim, double wall
SEAT – RADIO “”DJ”” combo seat, medium padded
SEAT POST –
SEAT CLAMP – RADIO “”QUICK RELEASE”” seat clamp, alloy
TYRES – MAXXIS “”DTH”” TYREs, 2.3″”, front & rear
WEIGHT –

FRAME/BAR GEOMETRY

TOP TUBE LENGTH – 22.6″”
CHAIN STAY LENGTH – 15″”
HEAD TUBE ANGLE – 69°
SEAT TUBE ANGLE – 72°
BOTTOM BRACKET HEIGHT – 20mm drop
STANDOVER HEIGHT – 11″”

RISE – 50mm
WIDTH – 760mm
BACKSWEEP – 8°
UPSWEEP – 3°
