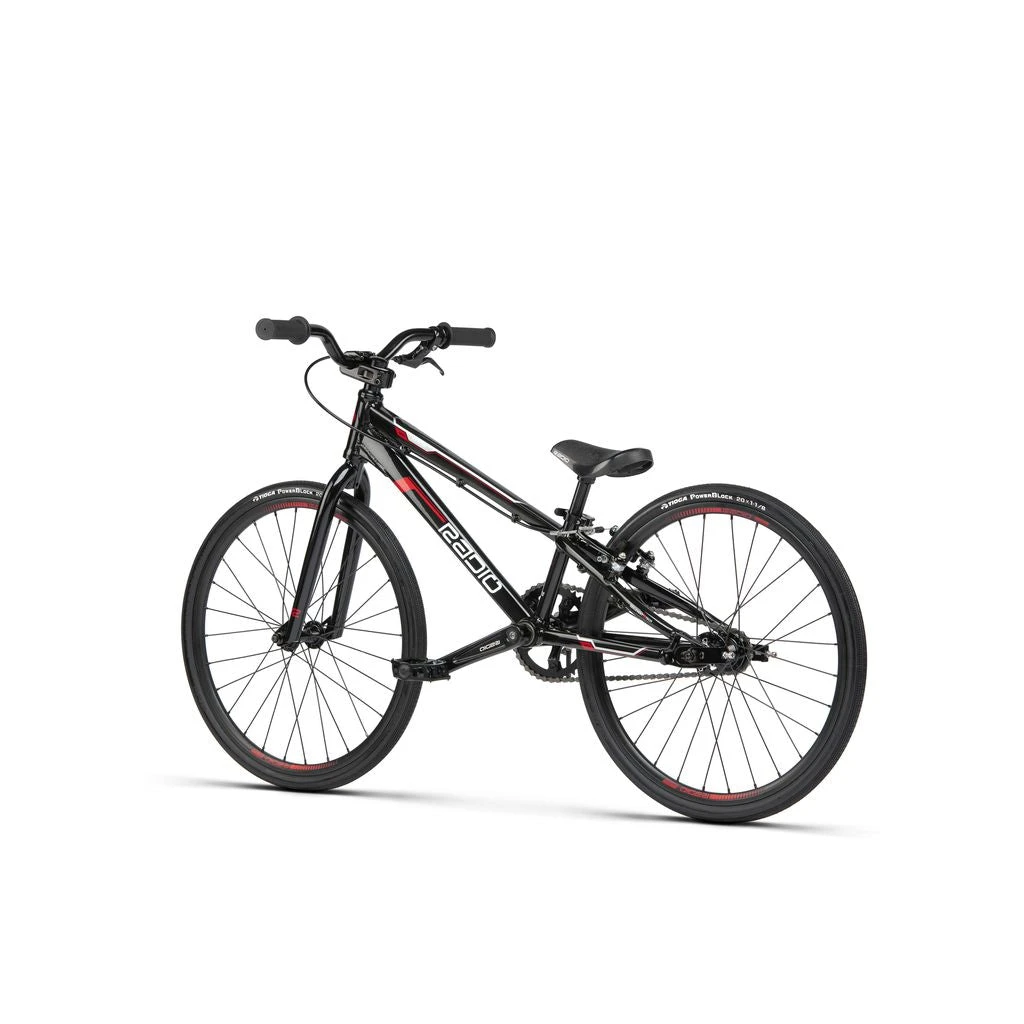

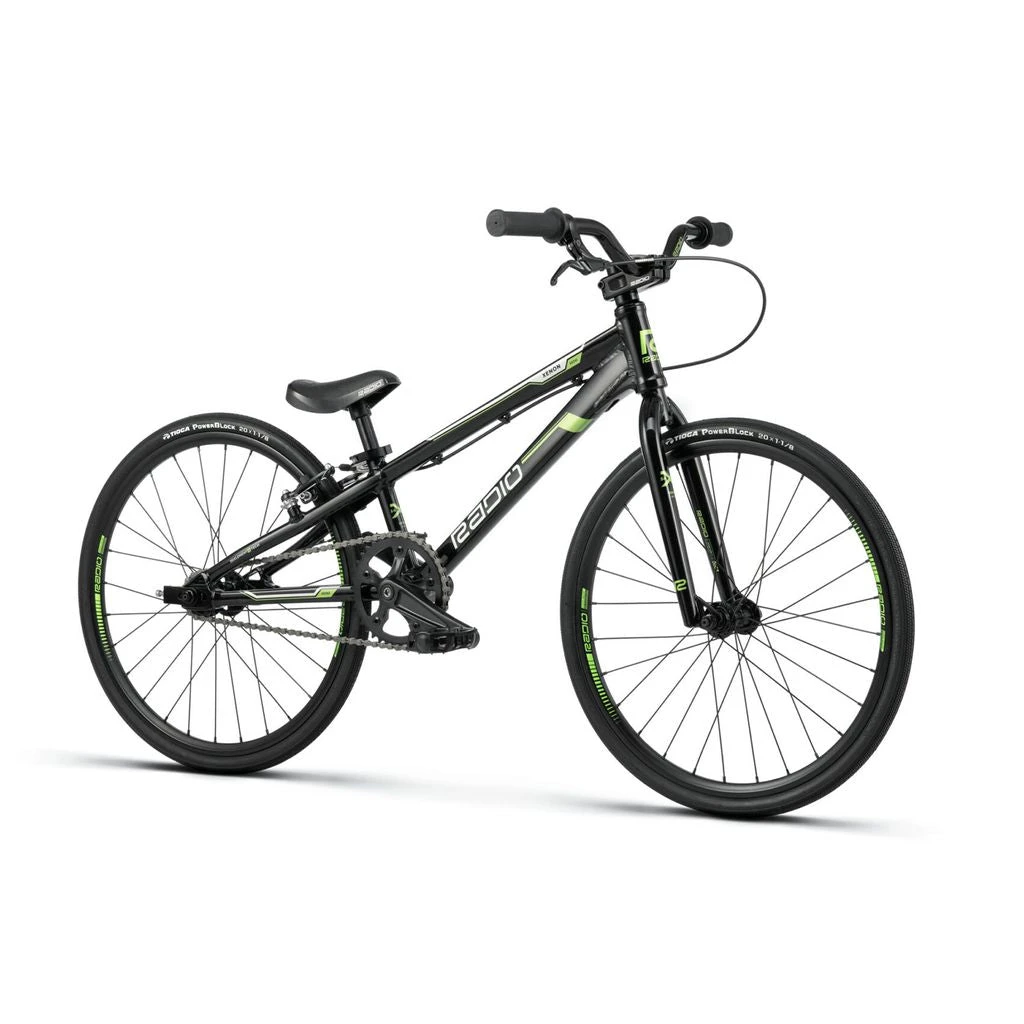

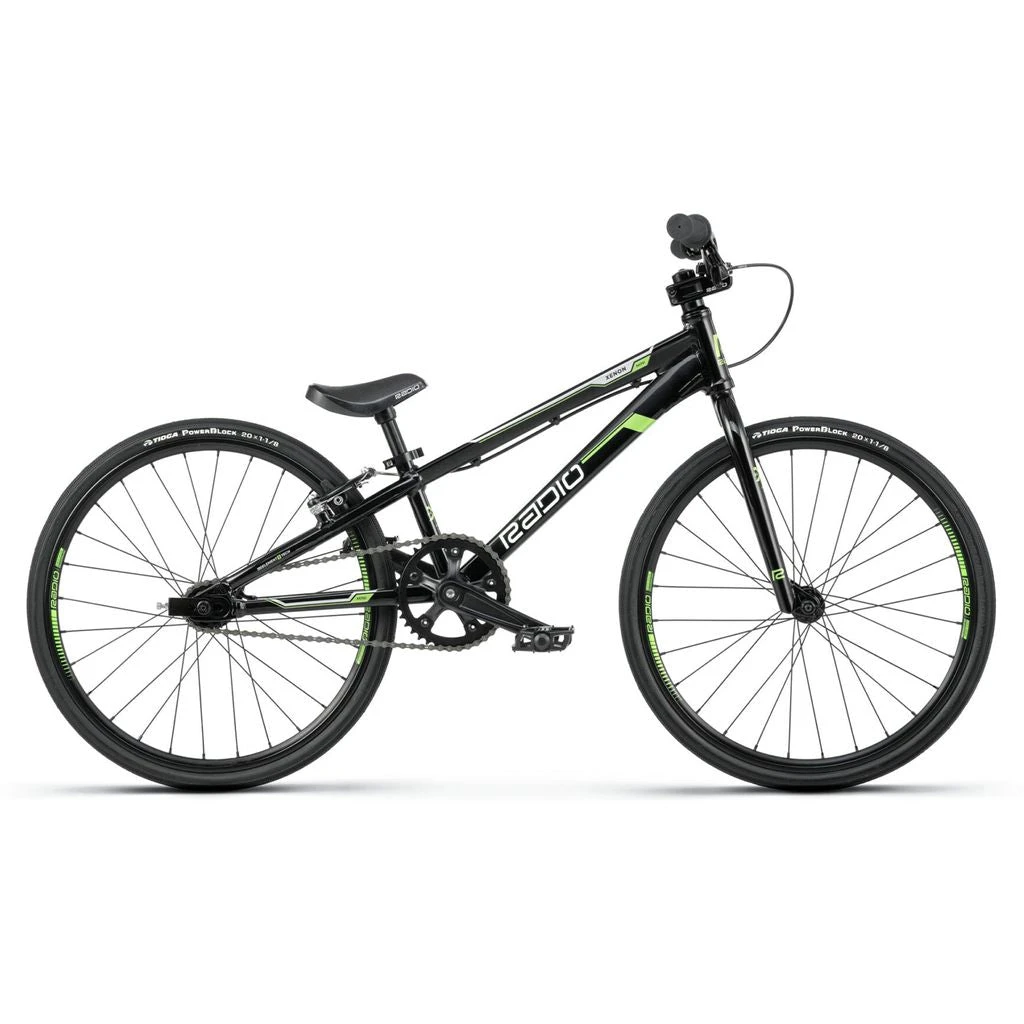

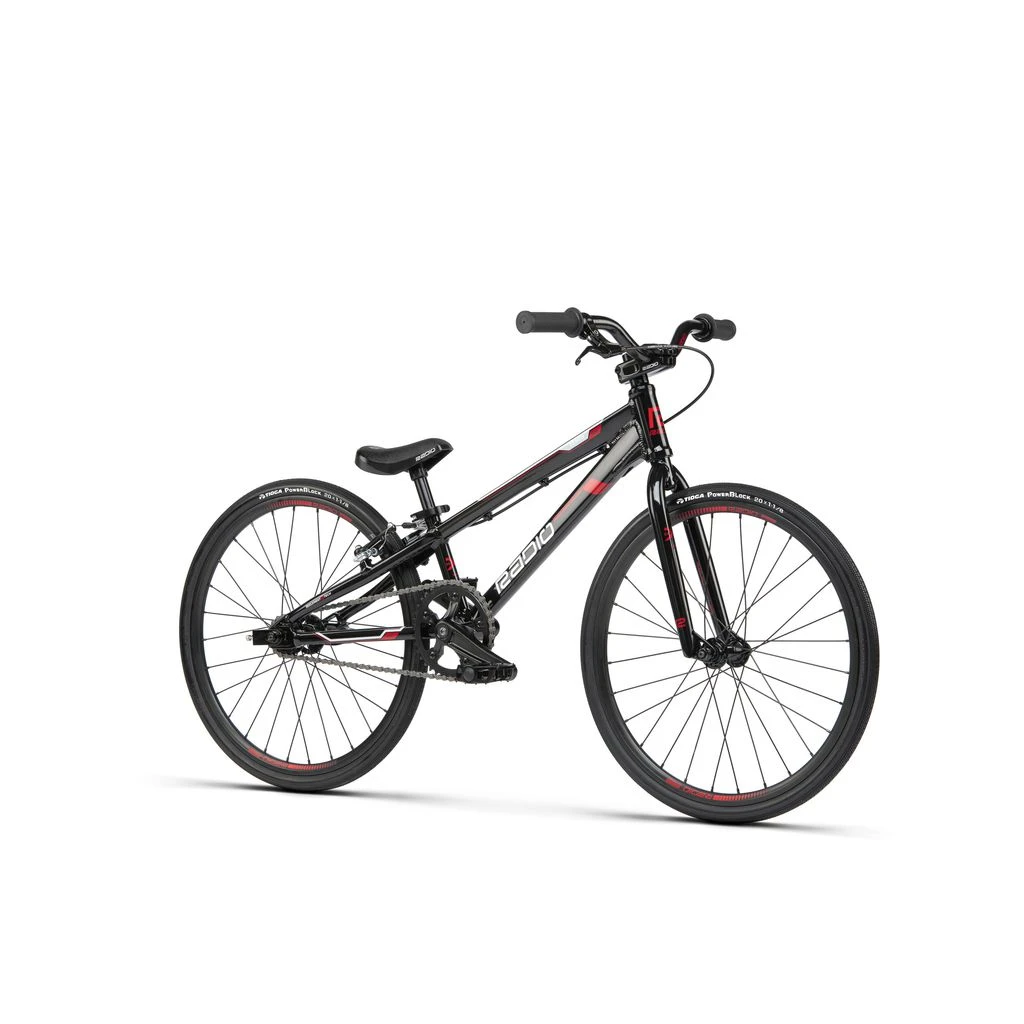

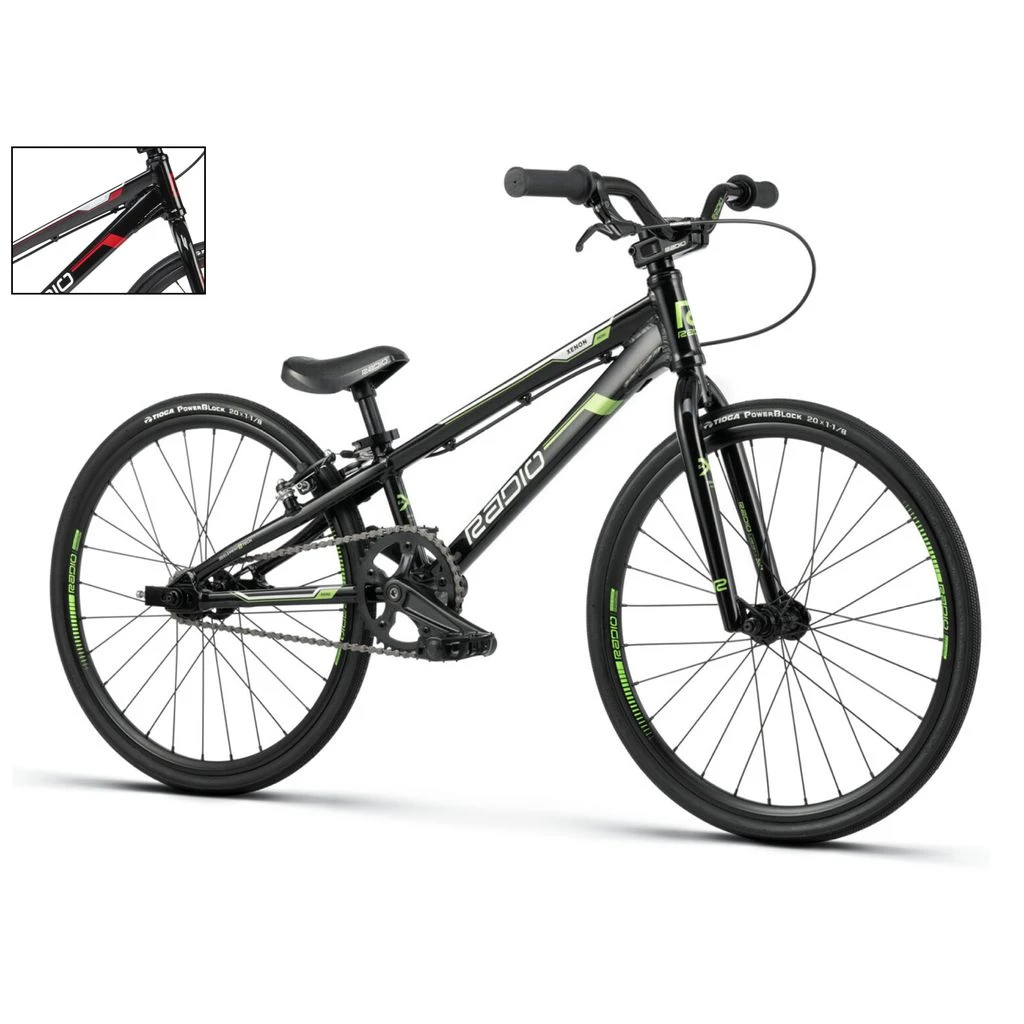

Radio Xenon Mini Bike

Building upon their ever increasing successes, the Radio Xenon range is solidifying itself as a trusted mid level complete race bike. The Radio Xenon Mini Bike comes with an array of race winning components, including disc brake ready dropouts.

The frame is manufactured from hydro–formed 6061–T6 alloy, with forks fully built from chromoly, from the steerer tube, to the fork legs. This means that it’s a light bike, yet with tough forks, so that it can take on the biggest jumps that your sprocket rider can throw at it.

Sealed bottom bracket and hubs keep maintenance down to a minimum, with quality Radio Raceline components fitted across the bike. The ever-dependable Tioga Powerblocks are employed to keep this pocket rocket rolling and sticking to the race line in the corners.

This BMX race bike is perfectly suited to the rider starting off their racing journey at a club level, whether they are starting off at a club’s training sessions, or tackling club racing.

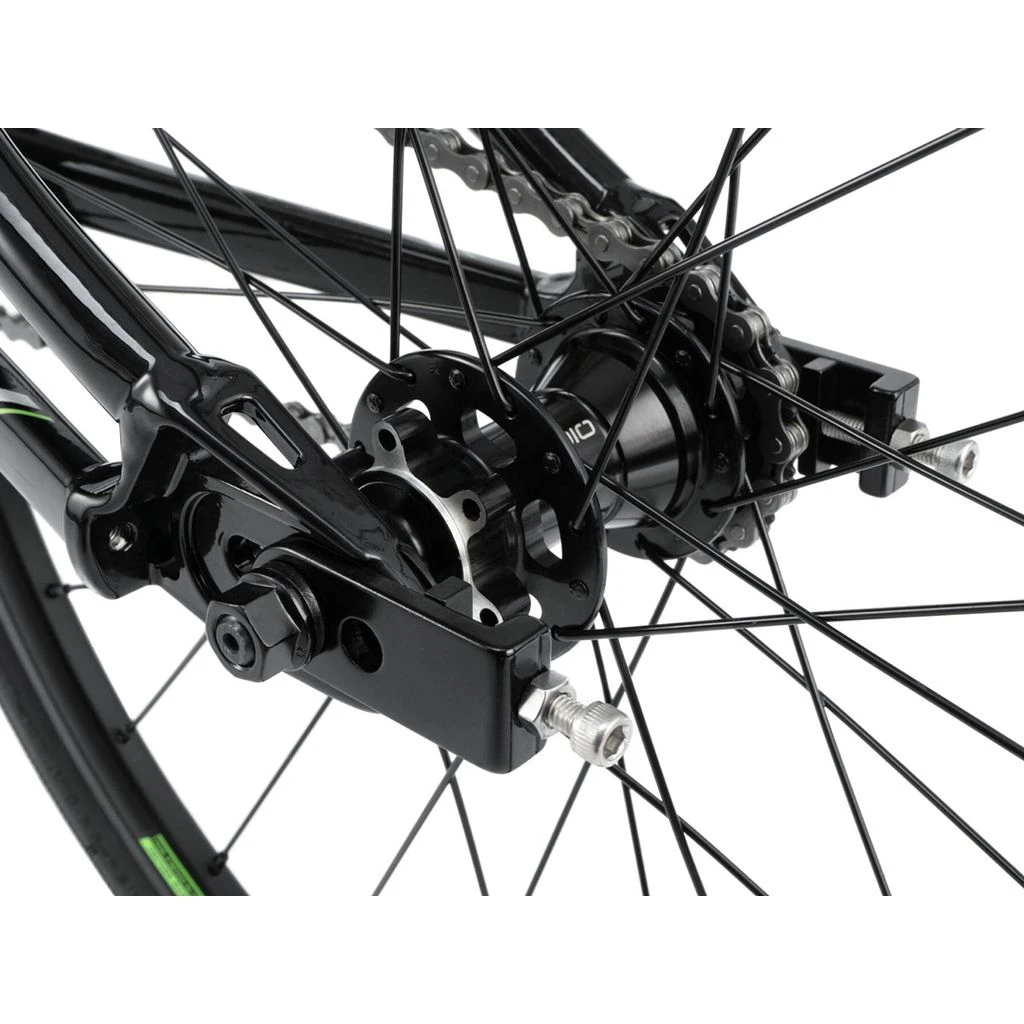

And when they are ready to move their racing up a notch or two, then the Radio Xenon is ready to move with them with a disc brake ready rear disc hub and dropout set up. This means that you can upgrade the brakes or wheels as they take things a little more seriously.

Key Specs:

• TT Length: 17.5″
• Wheel: 20″
• BB Height: 10.6″
• Crank Length: 140mm
• Gearing: 38 x16
• Gear Ratio: 48.44″
• Tyre Size: 20×1-1/8″

Size	17.5TT
Frame	Hydro formed 6061-T6 alloy frame, forged & disc brake mount ready dropouts

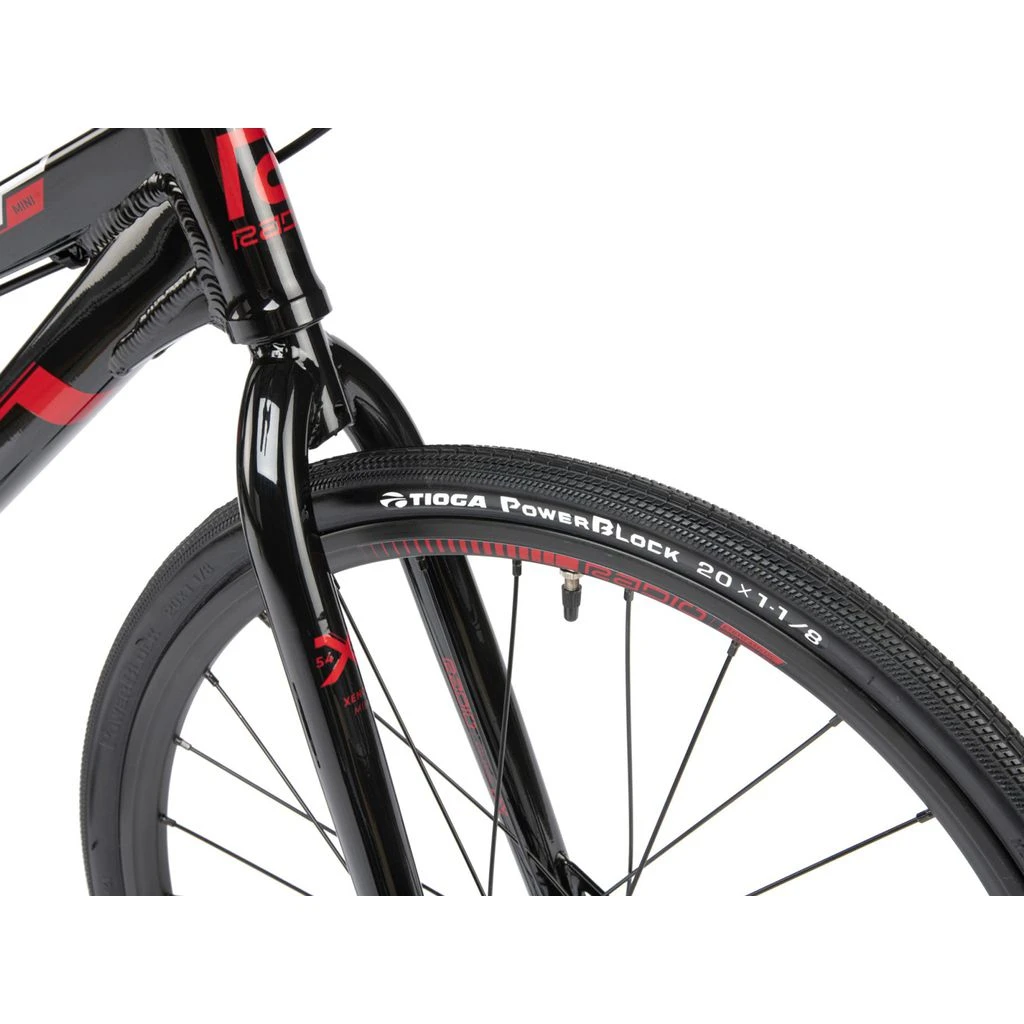

Fork	Crmo fork, 1″” butted steerer, crmo fork legs, 23mm offset

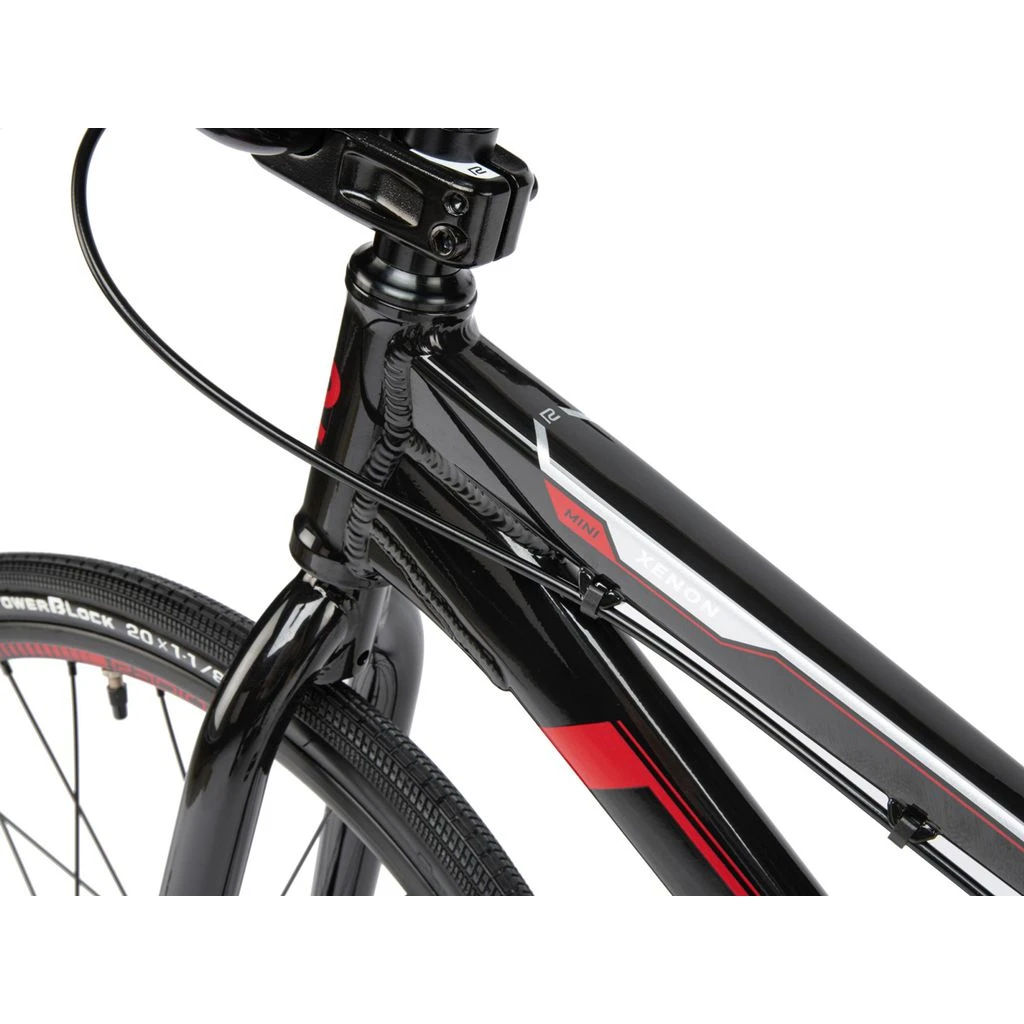

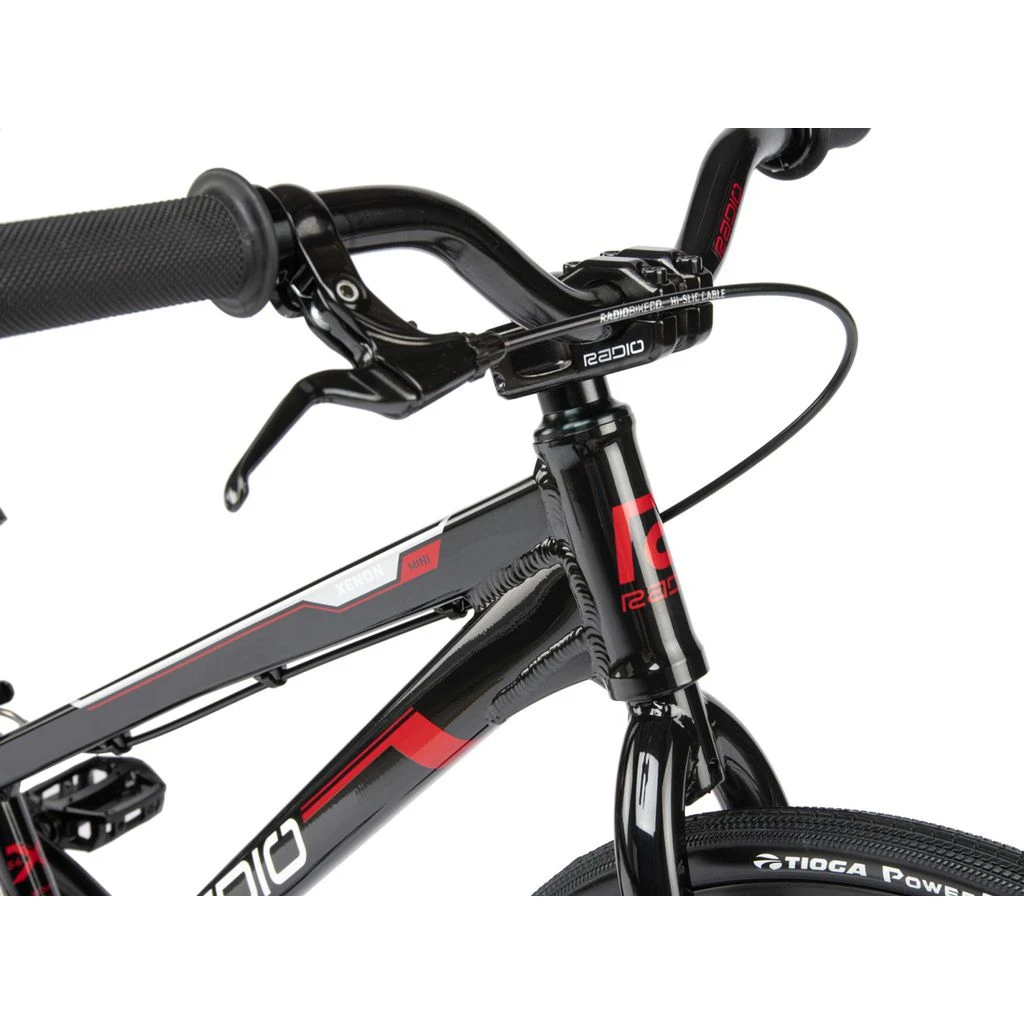

Headset	RADIO RACELINE integrated headset, sealed, 1″”
Stem	RADIO RACELINE “”COBALT”” top loader stem, ext. 40mm, alloy

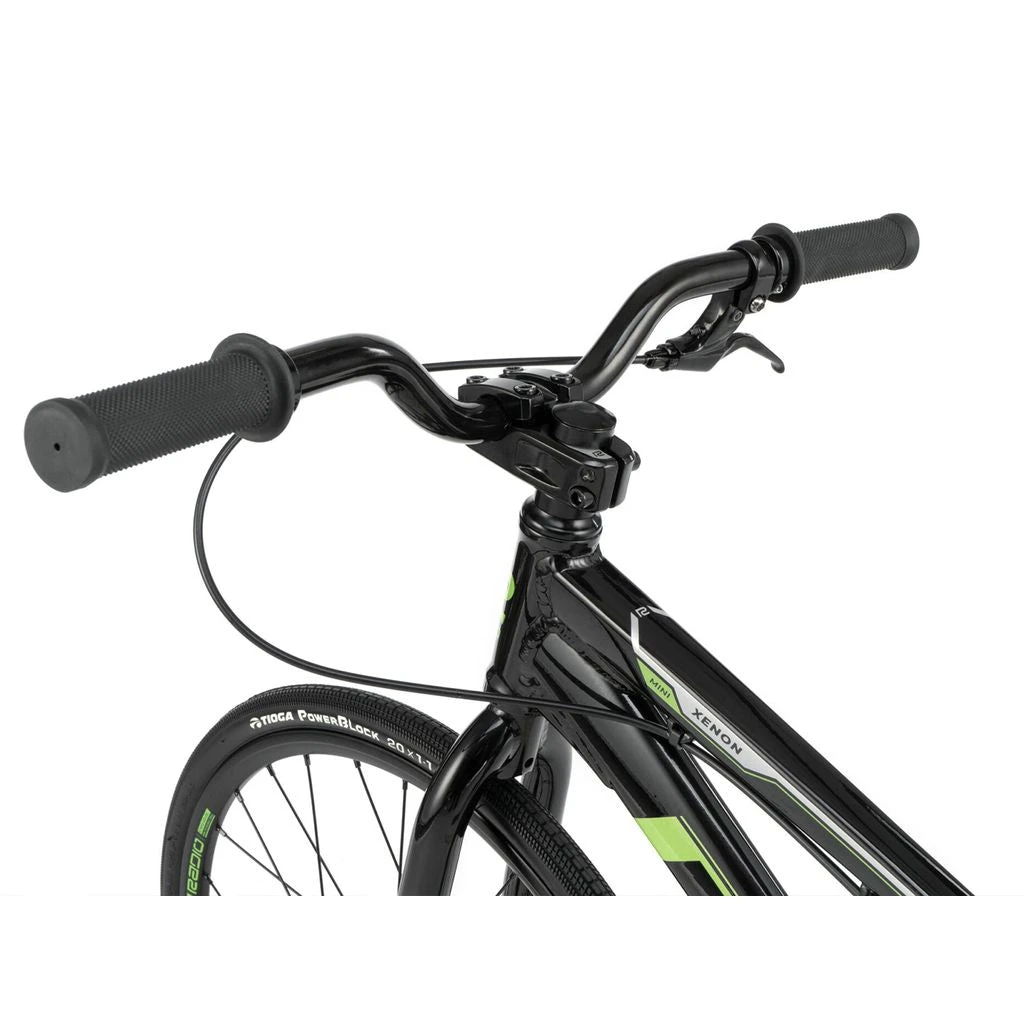

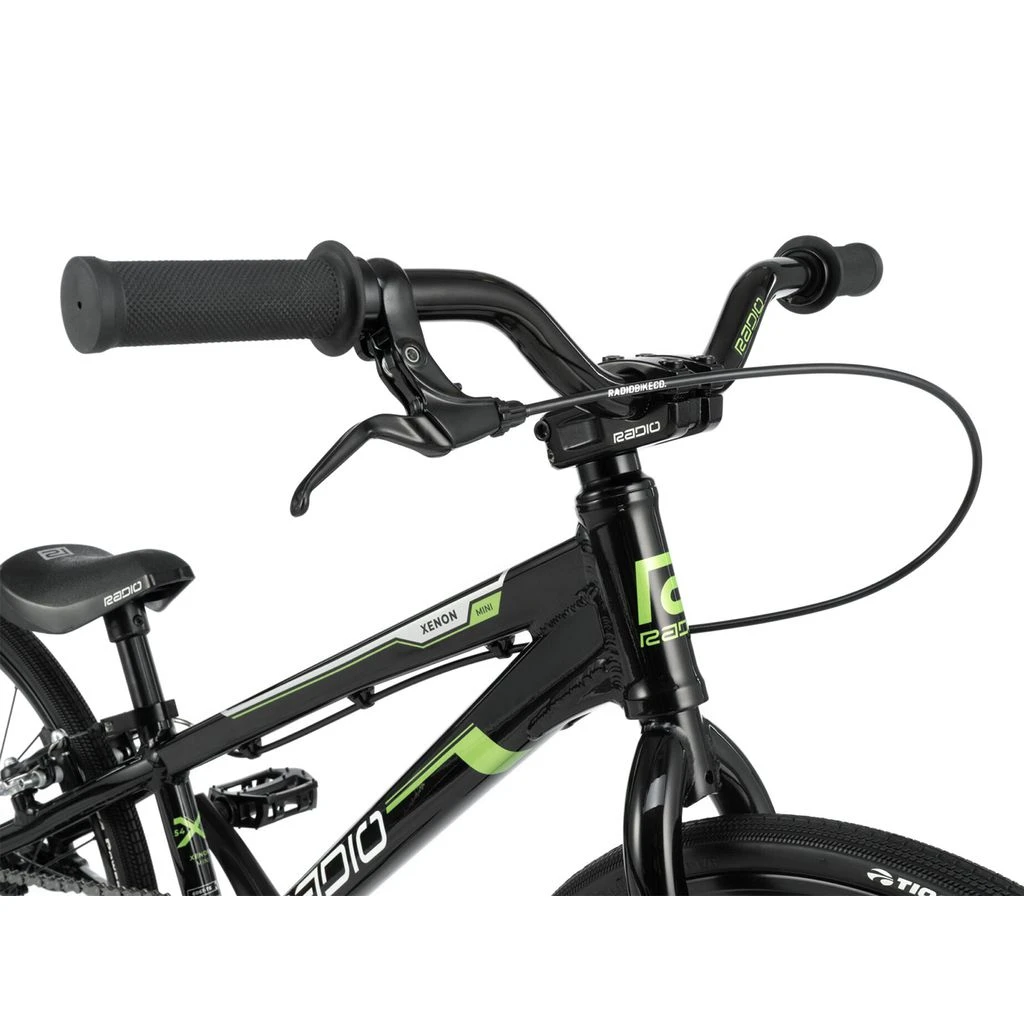

Handlebar	6061-T6 alloy bar: Rise – 2.25″, Width – 21″, Backsweep – 8°, Upsweep – 2°
Grips	RADIO RACELINE “”XENON”” grips, diamond knurling, clamp on grip, 115mm length
Brake Lever	PROMAX “”XL-378″” brake lever, rear
Rear Brake	PROMAX “”MV-85″” brake, rear

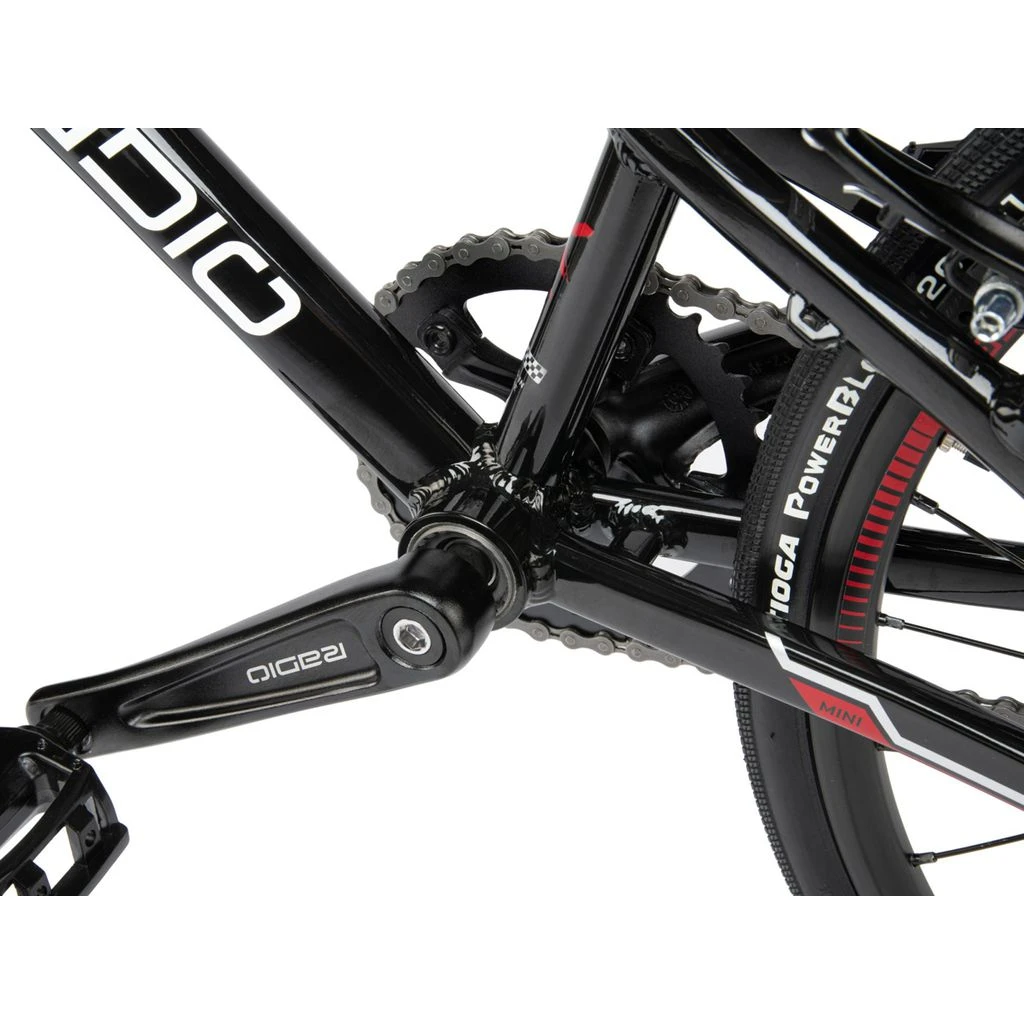

Crank	RADIO RACELINE “”XENON”” 3pc crank, forged alloy, cnc machined, 140mm length

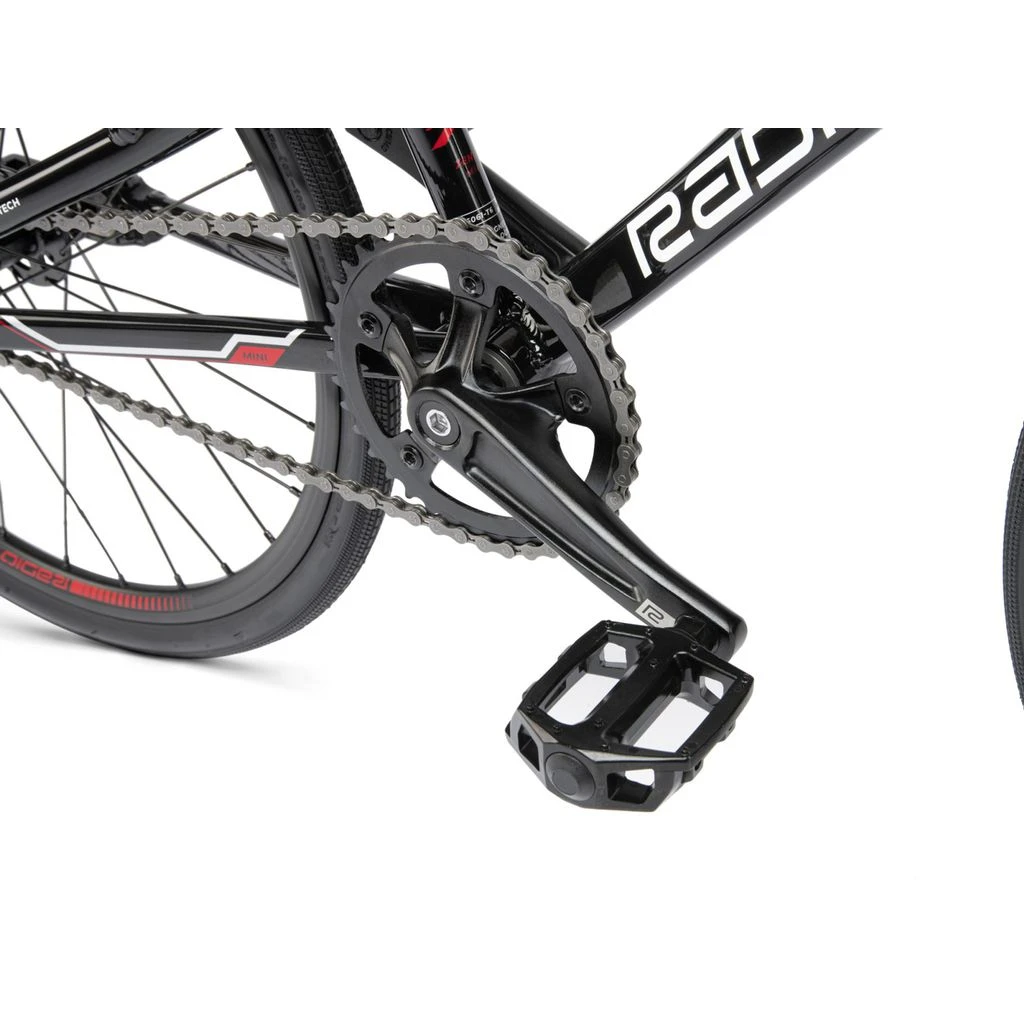

Chainring	RADIO RACELINE sprocket, 38T, alloy

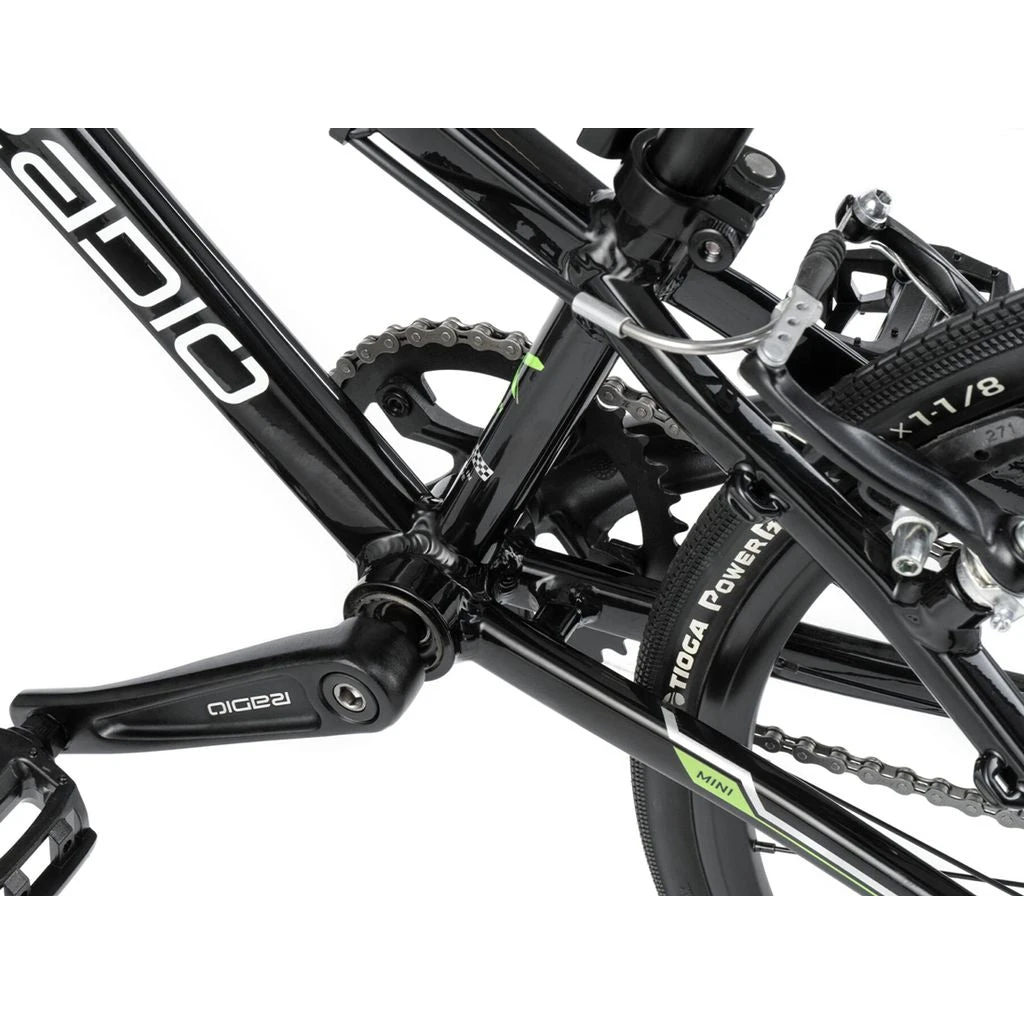

Bottom Bracket	RADIO RACELINE BB set, BSA square taper, sealed
Pedals	RADIO RACELINE “XENON JUNIOR” pedal, alloy
Chain	KMC “Z6″ chain, 1/2″ x 3/32”

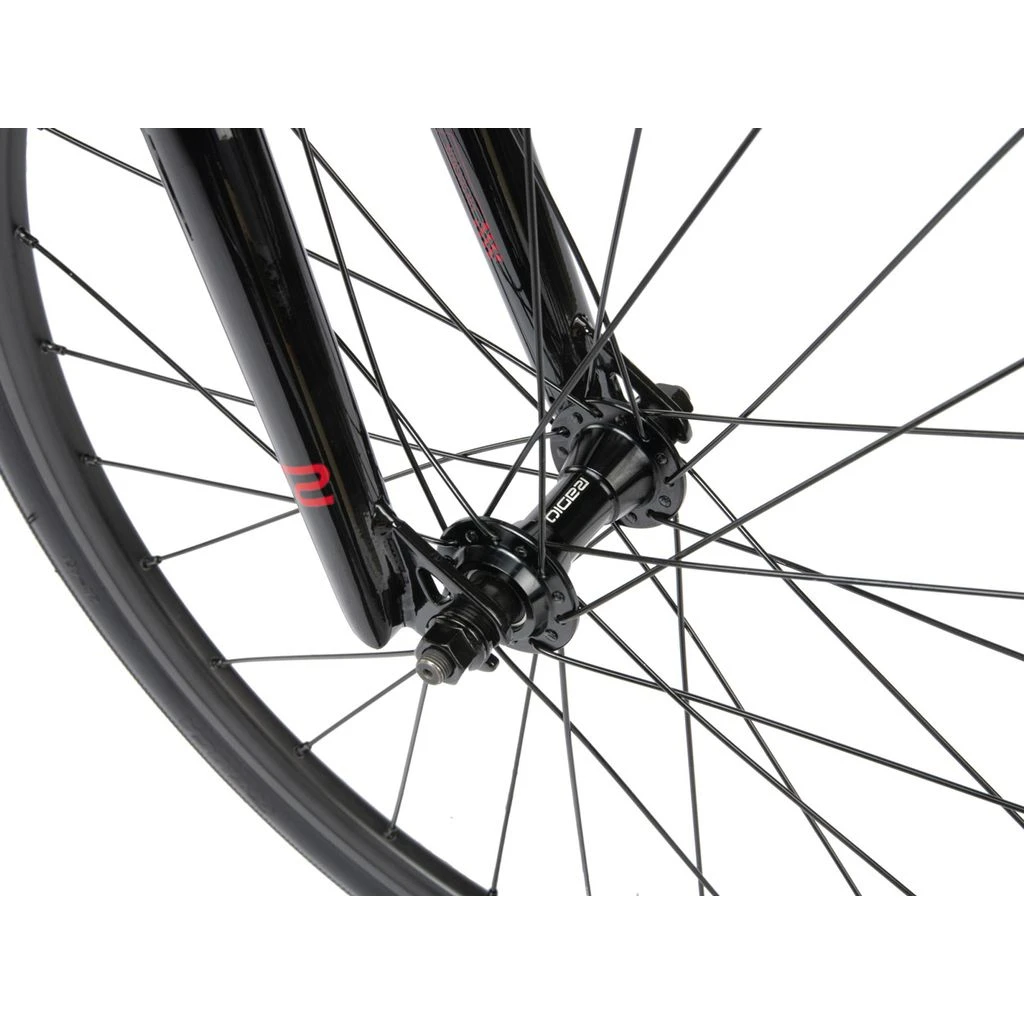

Front Hub	RADIO RACELINE “XENON” front hub, alloy cnc, fully sealed, 28H, 3/8″” crmo axle

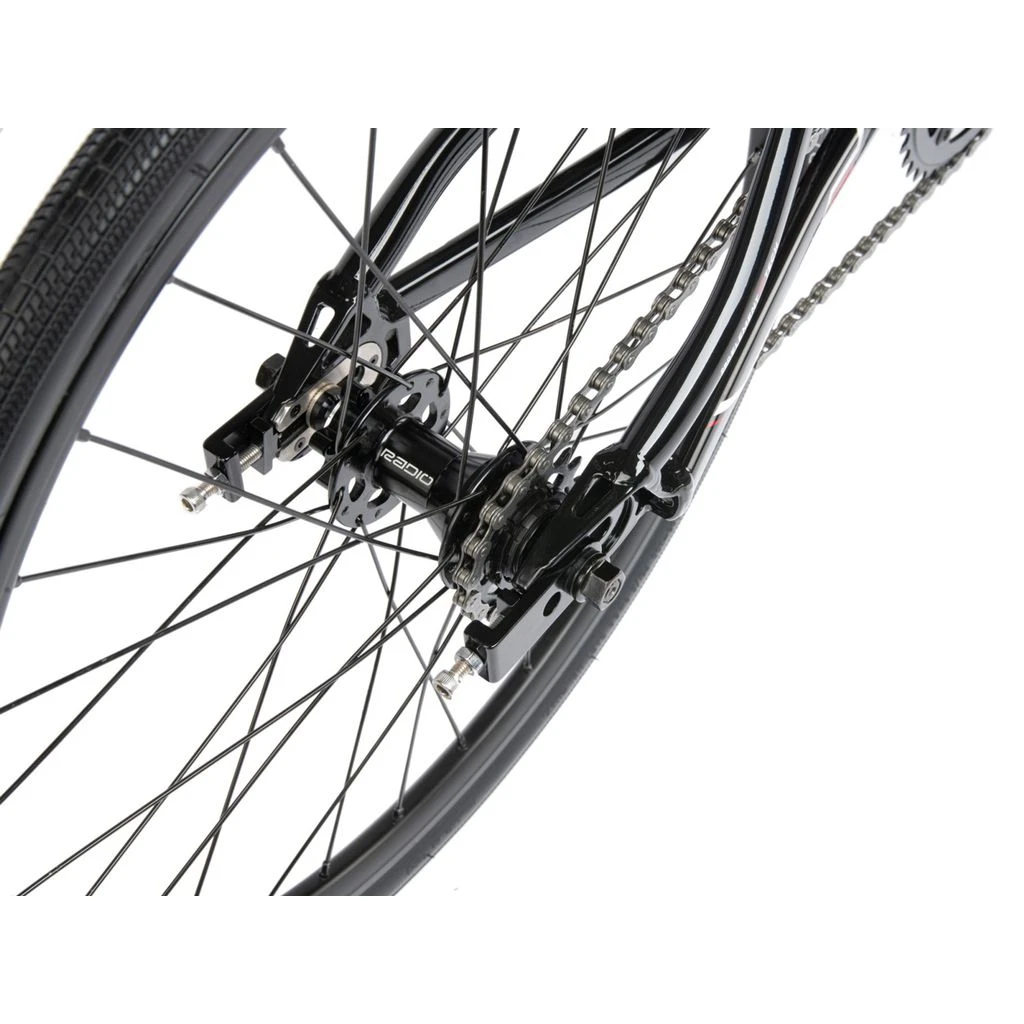

Rear Hub	RADIO RACELINE “XENON” rear hub, alloy cnc, fully sealed, 28H, disc brake cassette, 3/8″” crmo axle
Rear Cog	RADIO RACELINE driver, 16T, 1/2″- 3/32″, sealed cassette
Rim (F)	RADIO RACELINE “CLIPPER JUNIOR” rim, sleeved joint, 28H, alloy
Rim (R)	RADIO RACELINE “CLIPPER JUNIOR” rim, sleeved joint, 28H, alloy
Tyres	TIOGA “POWER-BLOCK” TYRES 20″ x 1-1/8″

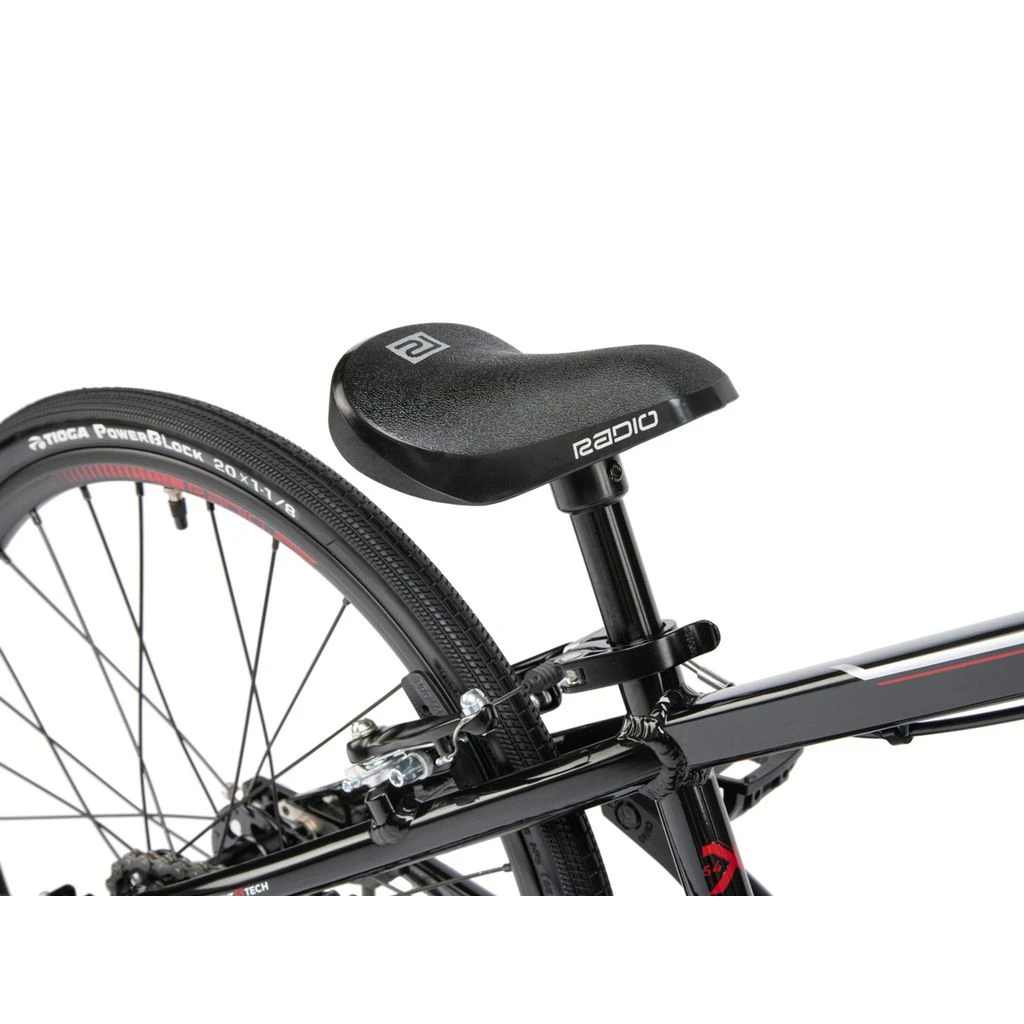

Seat	RADIO RACELINE “XENON” pivotal seat, no padding
Seat Clamp	RADIO RACELINE “XENON” seat post, quick-release, alloy
Seat Post	RADIO RACELINE seat post, 22.2mm, alloy
Gearing / Ratio	38×16 / 48.44″
Weight	7.55 kg
