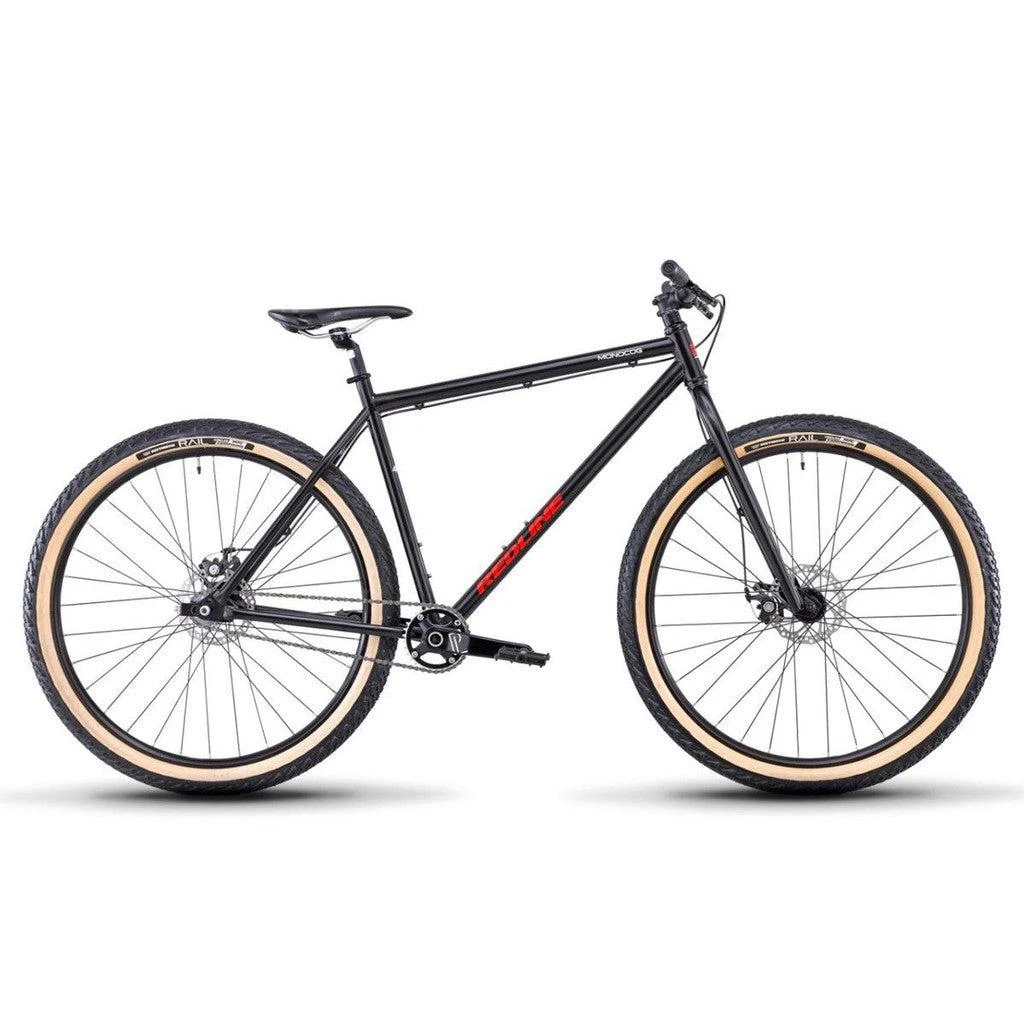

Redline Monocog 29 Inch Bike

Redline Monocog 29 Inch Bike

Swing a leg over this beauty and let the world pass you by as you enjoy the ride. These big wheeled machines are designed for cruising in style and are available in a bunch of sizes so that you can get dialled in with the perfect fit.

The Monocog is a steel singlespeed 29er for the ultimate in simplicity. A chromoly frame and fork makes for old-school style and gives you the smooth ride quality that steel is known for. Durable double wall 29-inch wheels let you roll over obstacles, whether you are on the road or cruising on trails. Tektro mechanical disc brakes and a nice, wide 740mm riser handlebar round out the package for great control and a comfortable riding position. This fully rigid mountain bike is at home on trails, gravel roads, and even pavement to give you a versatile ride that’s plenty fun on the singletrack.

Frame Size	SM/15	MD/17	LG/19	XL/21
Bike Stand Over Height	721.0 “”	753.0 “”	796.0 “”	819.0 “”
Bike Seat Tube Length	385.0 “”	432.0 “”	482.0 “”	535.0 “”
Bike Top Tube Length	585.0 “”	603.0 “”	625.0 “”	640.0 “”
Bike Head Tube Length	95.0 “”	100.0 “”	110.0 “”	115.0 “”
Bike Head Angle	68.0 °	68.0 °	68.0 °	68.0 °
Bike Seat Angle	74.0 °	74.0 °	74.0 °	74.0 °
Bike Wheel Base	1121.0 “”	1140.0 “”	1163.0 “”	1179.0 “”
Bike Chain Stay Length	450.0 “”	450.0 “”	450.0 “”	450.0 “”
Bike Fork Offset	46.0 “”	46.0 “”	46.0 “”	46.0 “”
Bike Bb Height	292.0 “”	292.0 “”	292.0 “”	292.0 “”
Bike Bb Drop	65.0 “”	65.0 “”	65.0 “”	65.0 “”
Bike Stack	582.0 “”	586.0 “”	596.0 “”	600.0 “”
Bike Reach	418.0 “”	435.0 “”	454.0 “”	468.0 “”
Bike Fork Length	481.0 mm	481.0 mm	481.0 mm	481.0 mm

Size	15TT, 17TT, 19TT, 21TT
Frame	full chromoly disc
Fork	chromoly disc
Headset	fsa impact integrated 1 1/8″”
Stem	alloy, 3d forged, 40mm, 35mm bar bore
Handlebar	alloy, 740mm wide, 15mm rise, 9 deg back, 5 deg up, 35mm
Grips/Bar Ends	redline monster 151, no flange
Brake	Brake levers – tektro ml520 Brakes – tektro md-m300, mechanical disc, 160mm rotor
BB	sealed external euro
Cranks	proline 2pc alloy forged cranks 175mm w/24mm chromo spindle
Sprocket	alloy, 104 bcd, 32t
Chain	kmc z33
Pedals	monster pc, sealed bearing, ultra low profile w/ broached chromo spindle
Front Hub	formula alloy disc, qr, 32h
Rear Hub	formula alloy disc, cassette spaced for single speed, nutted, 32h Cogset – 18t
Rims	alloy ddm-2 double wall, disc
Tyres	vee rubber, 29 x 2.25
Seat/Post/Clamp	Seat – redline mtb Seatpost – alloy, 26.8 x 350mm
