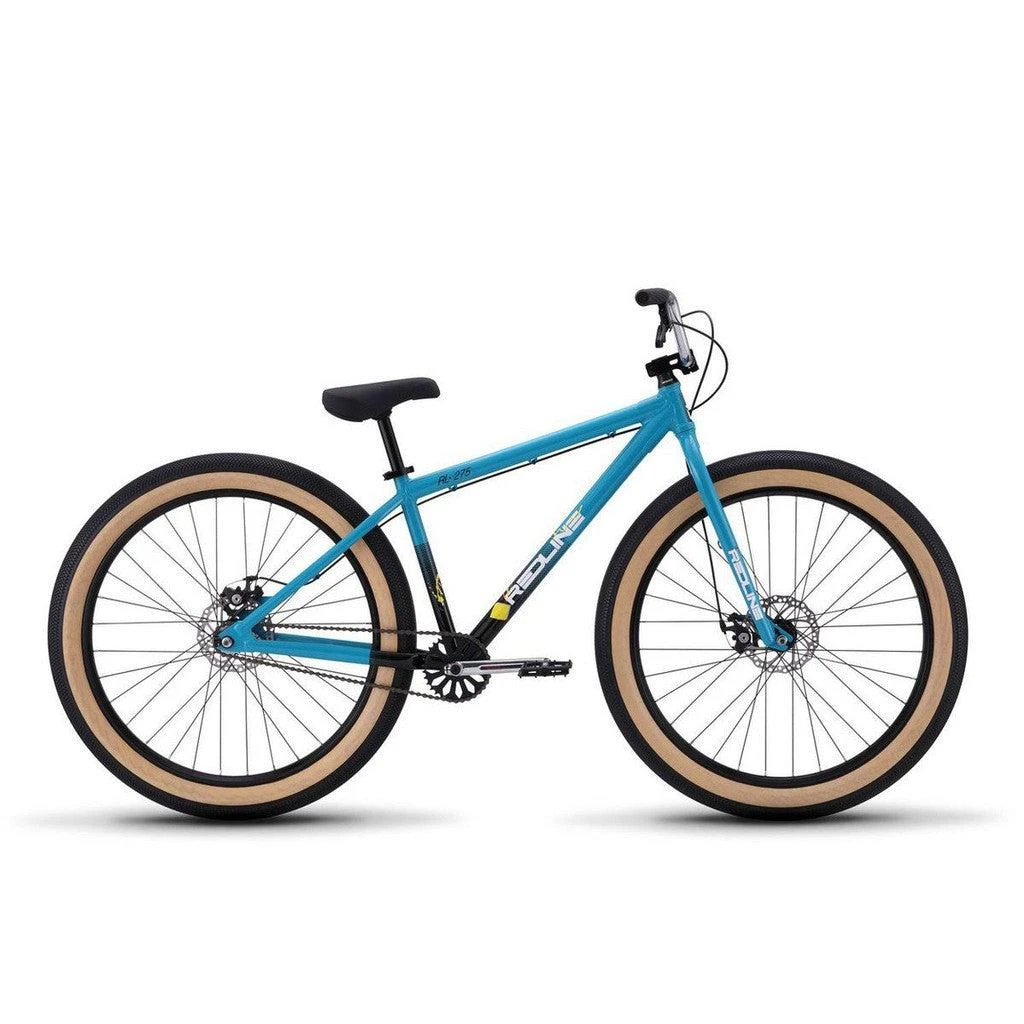

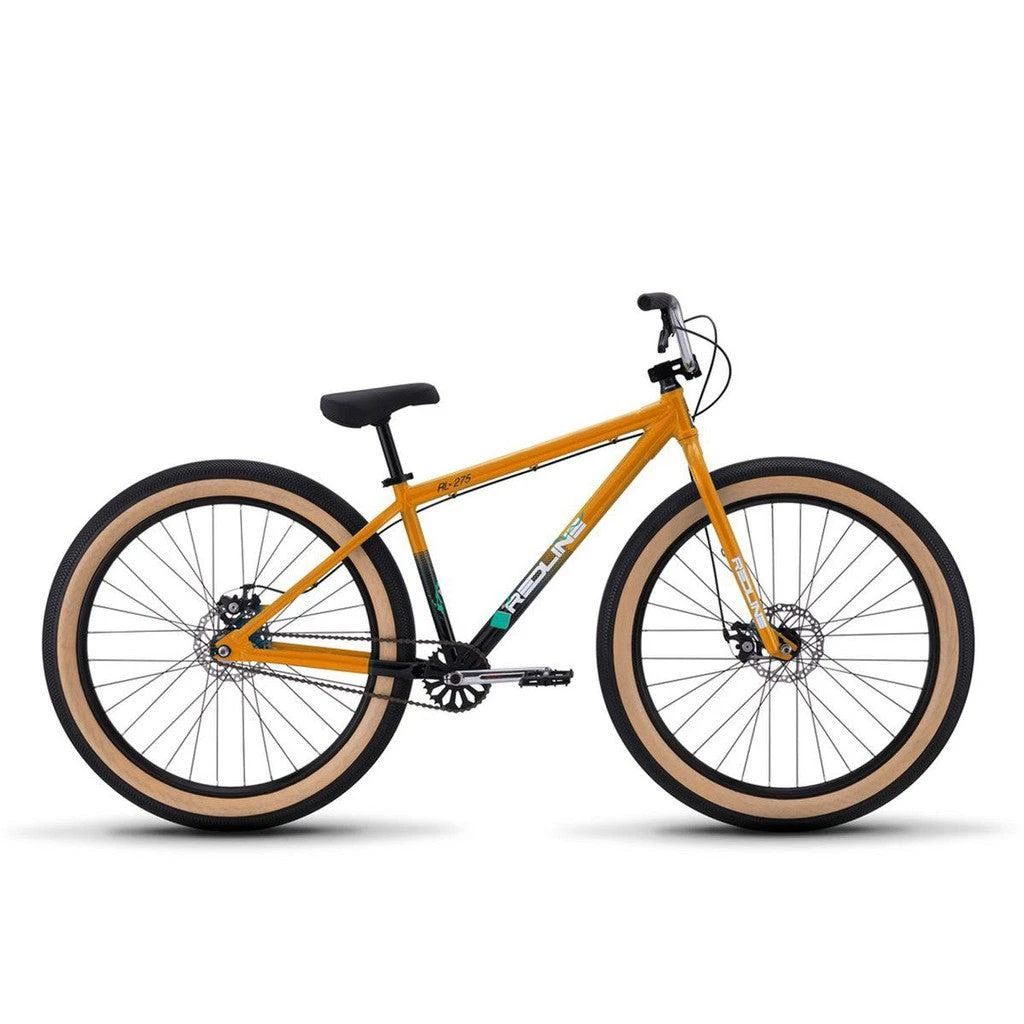

Redline RL 275 27.5 Inch Bike

Redline RL 275 27.5 Inch Bike

Throw it back with one of these sweet looking rigs from Redline. Built to perfection with loads of great parts and features. This bikes styling will definitely get heads turning! The Redline RL-275 is in a category of its own. This BMX bike for adults looks like a classic BMX cruiser, until you take a gander at the Tektro mechanical disc brakes and those ultra fat 3-inch wide tires mounted on 27.5 Plus size rims. The Vee Speedster tires roll fast and grip the corners on both pavement and dirt. They also give you some float if you decide to take a short-cut down a staircase or cruise on the beach. With retro graphics and a V-style handlebar, the RL-275 gives you an old-school look with new-school spec.



Size	22.2TT
Frame	6061 alloy with disc tabs
Fork	full chromo, disc
Headset	sealed integrated headset 1 1/8, aluminum top cap
Stem	rl aluminum hollowpoint 55mm
Handlebar	retro double bend crossbar, chromo, 5.5″” rise, 12d backsweep, 29″” wide, chrome finish
Grips/Bar Ends	monster 151, no flange, monster plug
Brake	Brake levers – tektro ml520 Brakes – tektro md-m300 mechanical disc
BB	sealed euro bb
Cranks	classic flight cranks, dual pinch, chromo, w/chrome finish and retro decal, 180mm
Sprocket	alloy, 33t
Chain	kmc z33
Pedals	monster ultra low profile, pc, sealed, broached chomoly spindle
Front Hub	formula aluminum disc, nutted axle, 32h
Rear Hub	formula aluminum, cassette spaced for single speed, disc, 32h Cogset – 16t
Rims	alloy ddm-7 plus rim
Tyres	vee speedster 27.5 x 3.0
Seat/Post/Clamp	Seat – monster fat pivotal Seatpost – alloy pivotal, 27.2 x 350mm
Weight
Extras



Geometry
Frame Size- 27.5″
Bike Top Tube Length – 22.2 “
Bike Head Angle – 71.0 °
Bike Seat Angle – 73.0 °
Bike Chain Stay Length – 16.9 “
Bike Bb Height – 12.0 “
Bike Stem Length – 55.0 mm
Bike Handlebar Width – 28.0 “
Bike Crank Length – 180.0 mm
