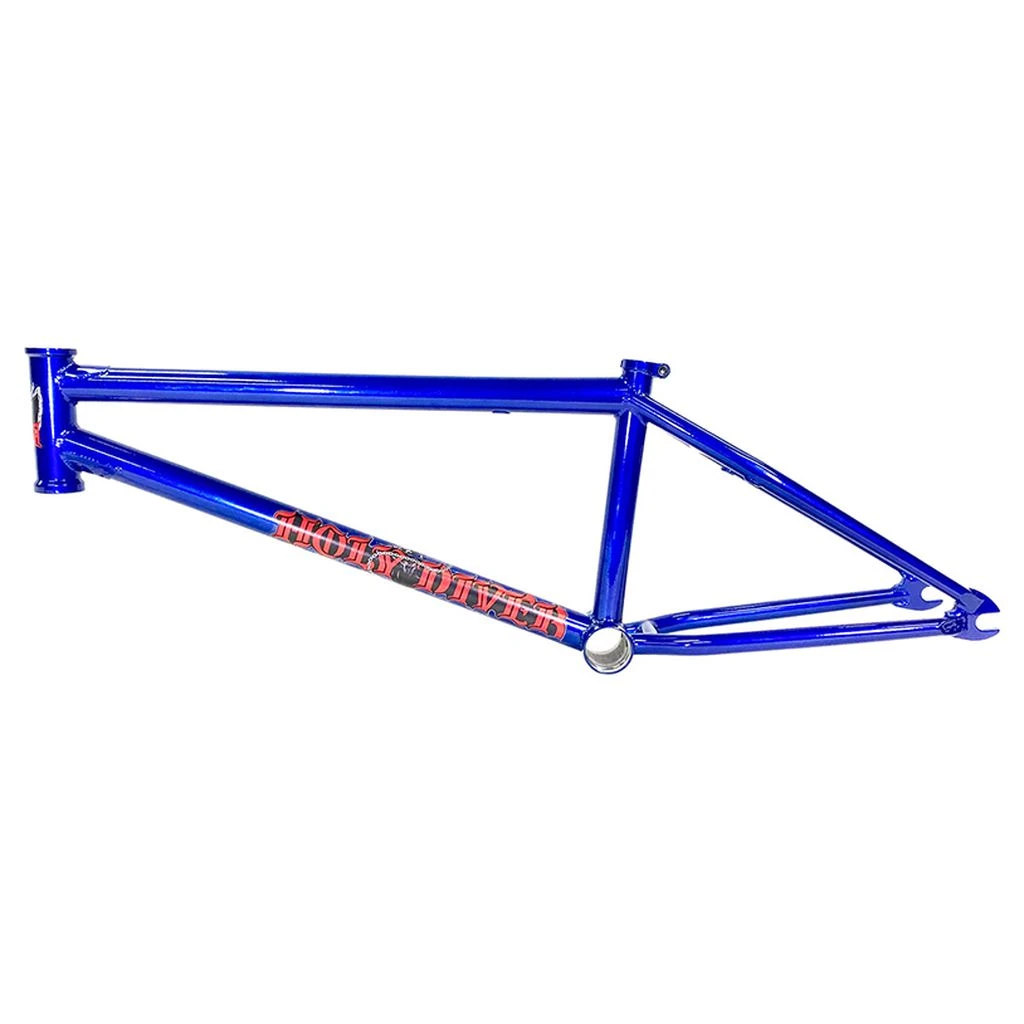

S&M Holy Diver Frame

S & M Holy Diver Frame
HD has risen! Resurrected from the depths of the midnight sea, the Holy Diver frame was designed to react quickly, take a beating and come back swinging. Its ¼” thick, compact, heat-treated dropouts are ultra-strong and allow for ample peg clearance. A taller head tube reduces the number of spacers needed, a laser cut top tube gusset adds strength and a responsive, modern, street geometry ensures that we’ve crafted a sword ready for battle. Go on now, Ride the Tiger.

Specifications
Top Tube Length – 21″
Rear End Length – 12.7″-13″
Head Tube Angle – 75.5°
Head Tube Style – 5″ Integrated (45°/45°, 41.8mm)
Seat Tube Angle – 71°
Seat Clamp – Investment Cast
Seat Post Size – 1″ (25.4mm)
BB Height – 11.7″
BB Style – Mid
Standover Height – 9″
Brake Mounts – Thread-On (sold separately) 990 Mounts
Dropouts – 14mm Slot, 4Q-Baked
Gyro Tabs – None
Weight – 2.12 kg
Tubeset – ThermalX Butted Tubing
