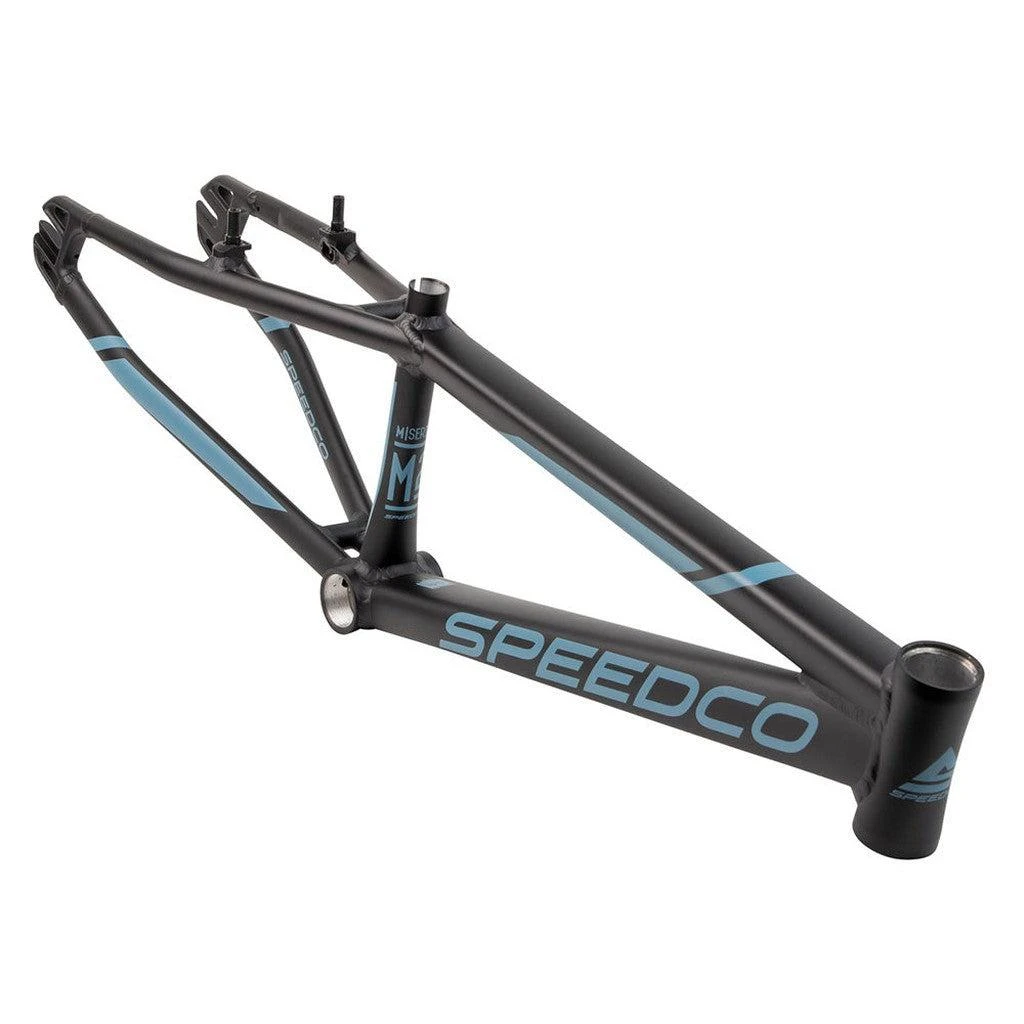

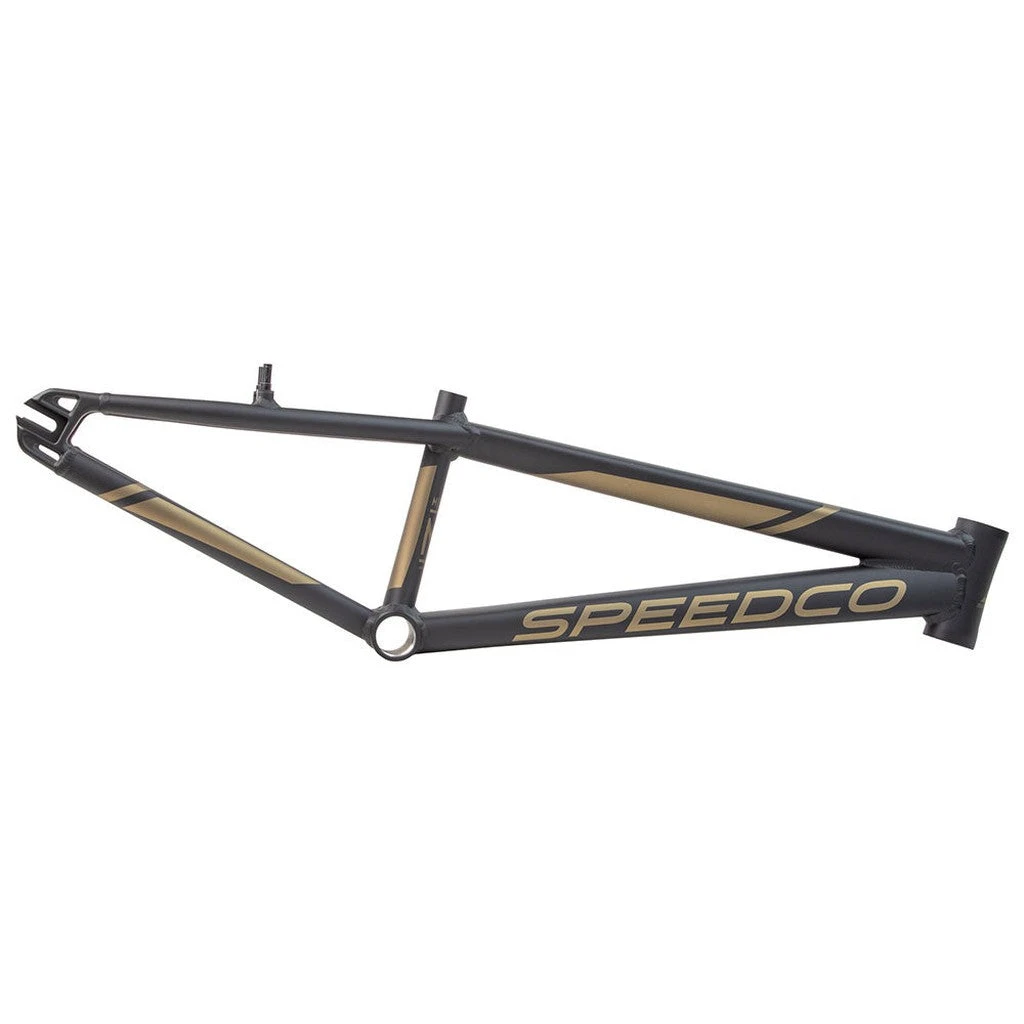

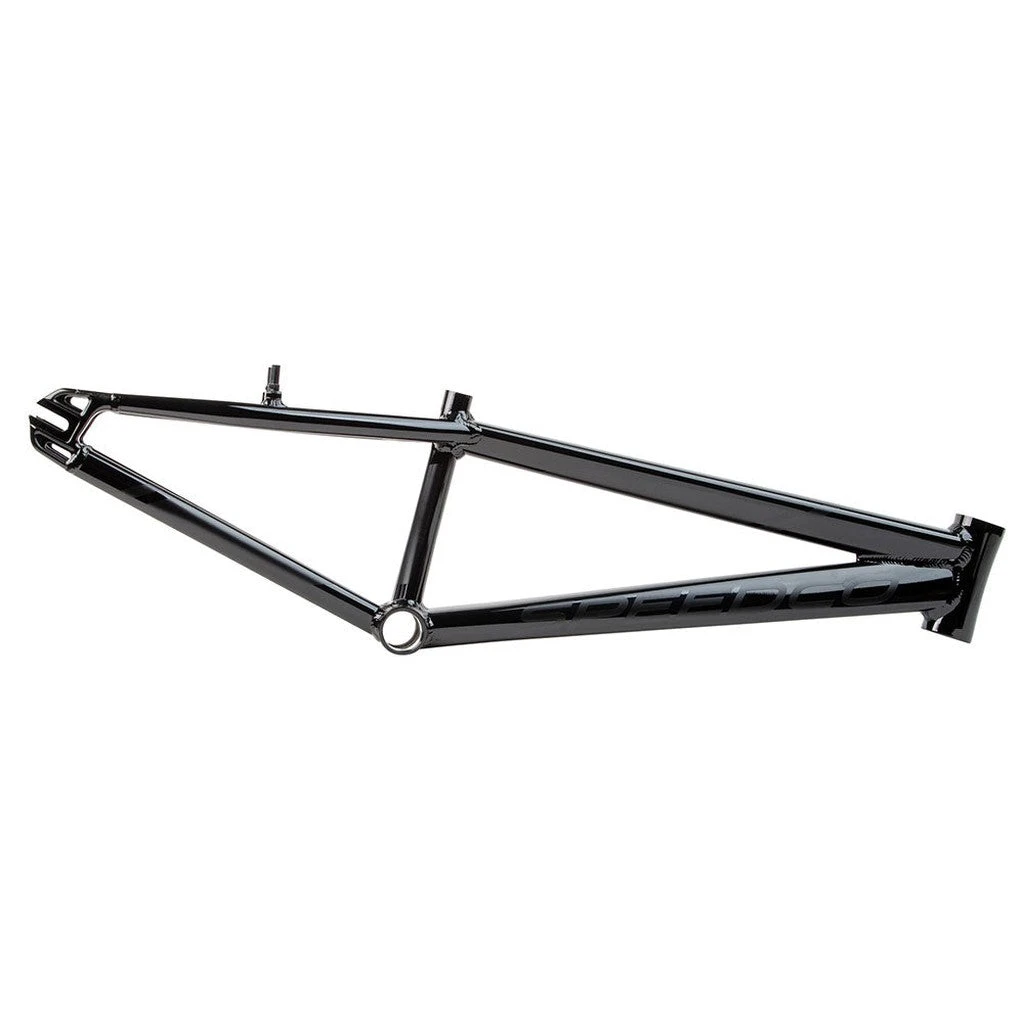

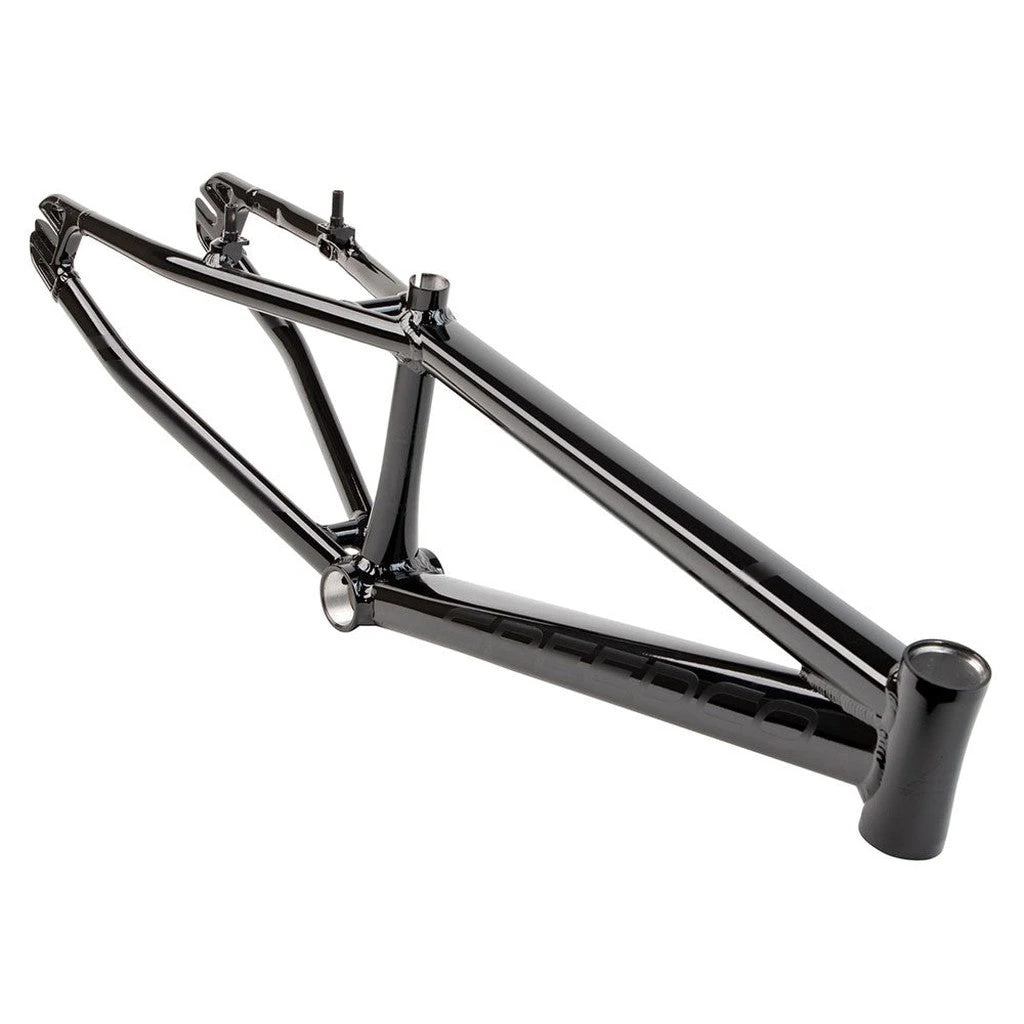

Speedco M2 Expert XL Frame

New colours for the 2024 Speedco M2 Alloy Youth frames bring a fresh update and confirm that the V-brake is not quite dead, yet! The Speedco M2 youth series retains the brake post mounts on the seat stay, though you have the option to run disc brakes using the M2 adapter.

Reliable 7005 series aluminium is used to manufacture the Speedco youth series of frames, tubing that is heat treated and double butted for weight reduction and increased strength. The down tube is tapered and wider at the bottom bracket to provide increased stiffness in this critical area. Bottom line, these are super light aluminium frames.

Additional features of the M2 frames include a seamless integrated chain tensioner system and internal cable routing from front of top-tube to mid seat-stay exiting right at the brake caliper, keeping the hydraulic hose protected as possible.

If you are making the jump to your first disc brake frame? Contact LUX’s customer service team and they will step you through the process to ensure that everything goes together smoothly. They can help you choose the right wheelset and disc brake set up for your new Speedco race rig.

Bottom Bracket Type: Euro

6 sizes available:

• Mini – 17″TT
• Junior – 18TT
• Expert – 19.25″TT
• Expert XL – 20″TT
• Junior Cruiser – 18.75″TT
• Expert Cruiser- 20″TT

Speedco M2	TT	BB	Chainstay	Head Tube	Head Tube	Seat Tube	Seat Tube	Weight
Disc Frame	Length	Height	Length (Centre)	Angle	Type	Angle	Post Size
Mini	17″	10.6″	13.5″	73°	1-1/8th”	70°	22.2mm	1.13kg
Junior	18″	10.75″	13.75″	73°	1-1/8th”	70°	22.2mm	1.118kg
Expert	19.25″	11″	14″	73°	1-1/8th”	70°	22.2mm	1.29kg
Expert XL	20″	11.5″	14.5″	73°	1-1/8th”	70°	22.2mm	1.33kg
Junior Cruiser	18.75″	11.2″	15″	73°	1-1/8th”	69.5°	22.2mm	1.32kg
Expert Cruiser	20″	11.5″	15″	73°	1-1/8th”	69.5°	22.2mm	1.34kg
