Staystrong V5 Disc Mini Frame

The disc evolution continues as Stay Strong moves to the V5 version of their ever popular aluminium race frame series. The team behind this iconic brand know their race stuff and hundreds of racers around the world confirm this by taking out race wins and titles every weekend.

What makes these Stay Strong V5 frames special? From the Mini to the Pro XXXL the same attention to detail is applied in manufacturing these disc brake beauties. Starting with the tested and proven 6061 alloy tubing that is butted in various directions, Stay Strong have applied their years of knowledge and experience to the geometry of these frames. They run a little higher BB than other frames in this segment, pitching the rider a little further over the front of the bike on the gate. Well, that’s our take on the specs.

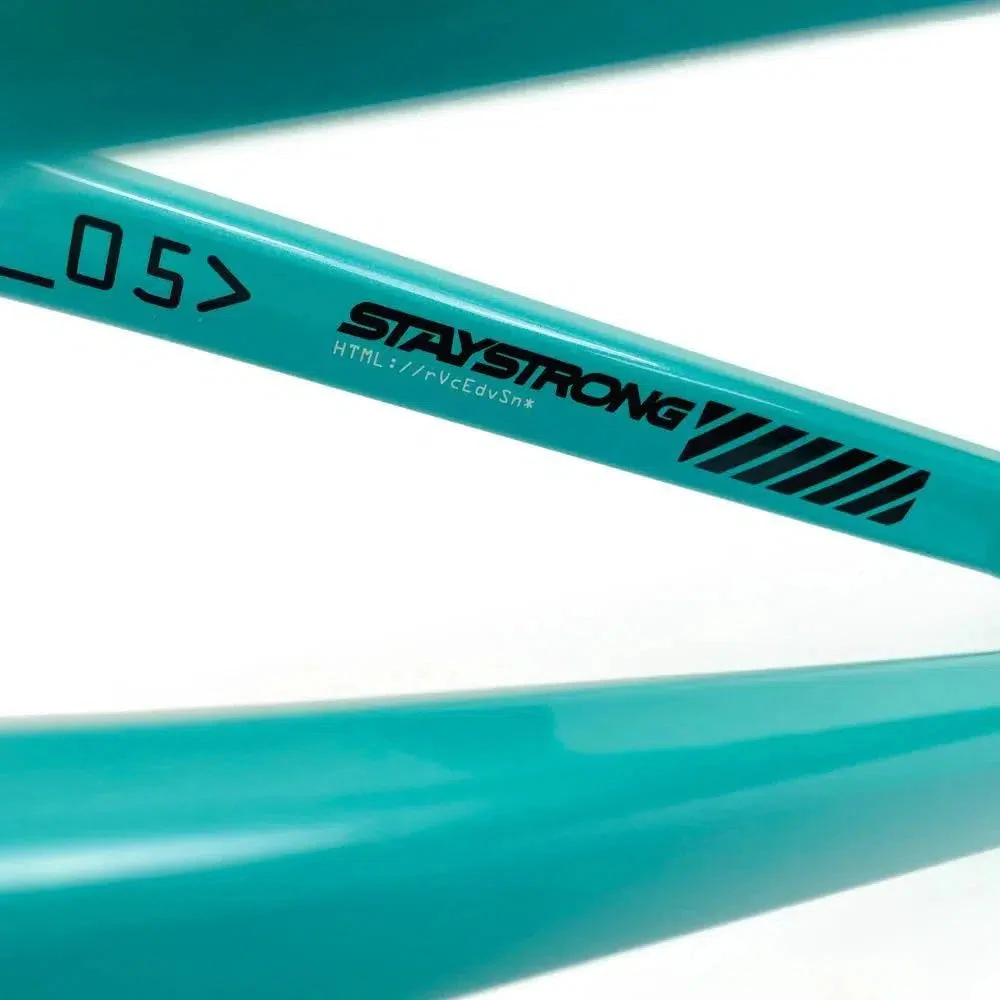

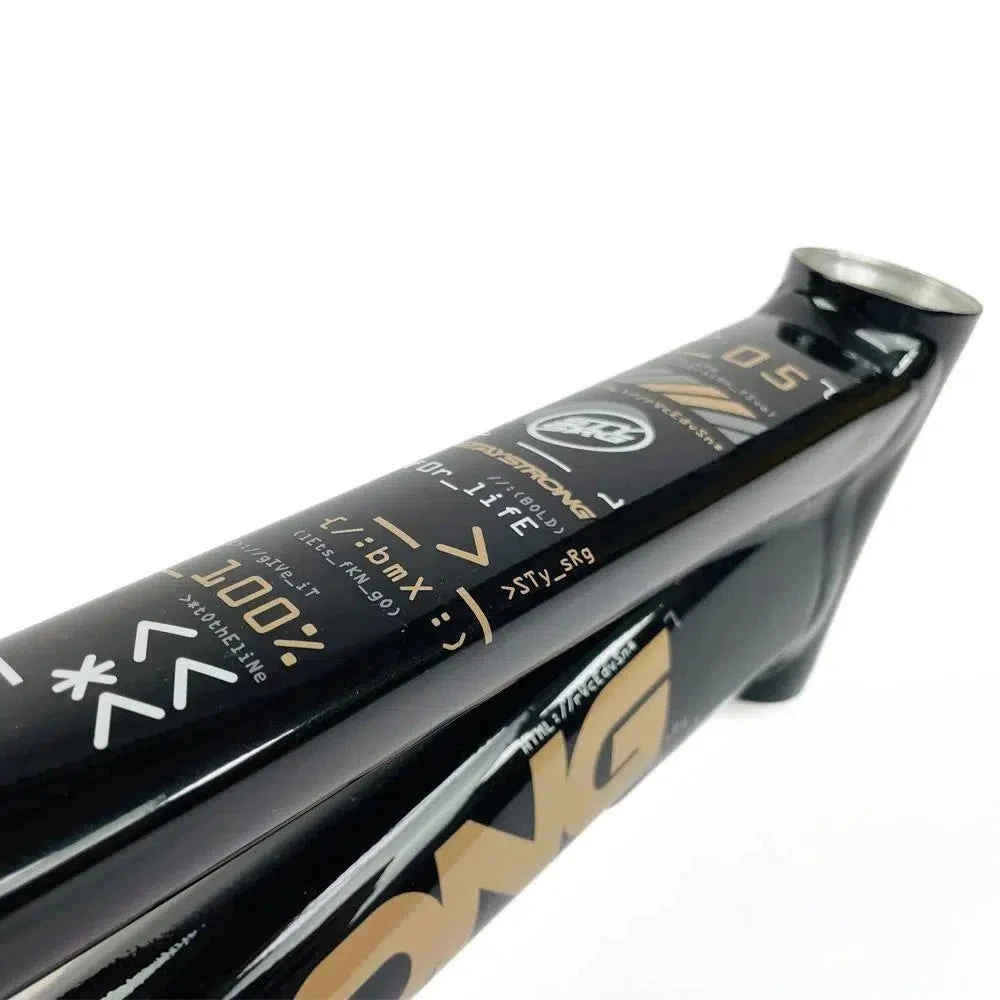

With new colours and decals for the V5 series of frames, plus the deletion of brake mounts carries over from the V4 frames all adds up to a smooth looking premium aluminium frame

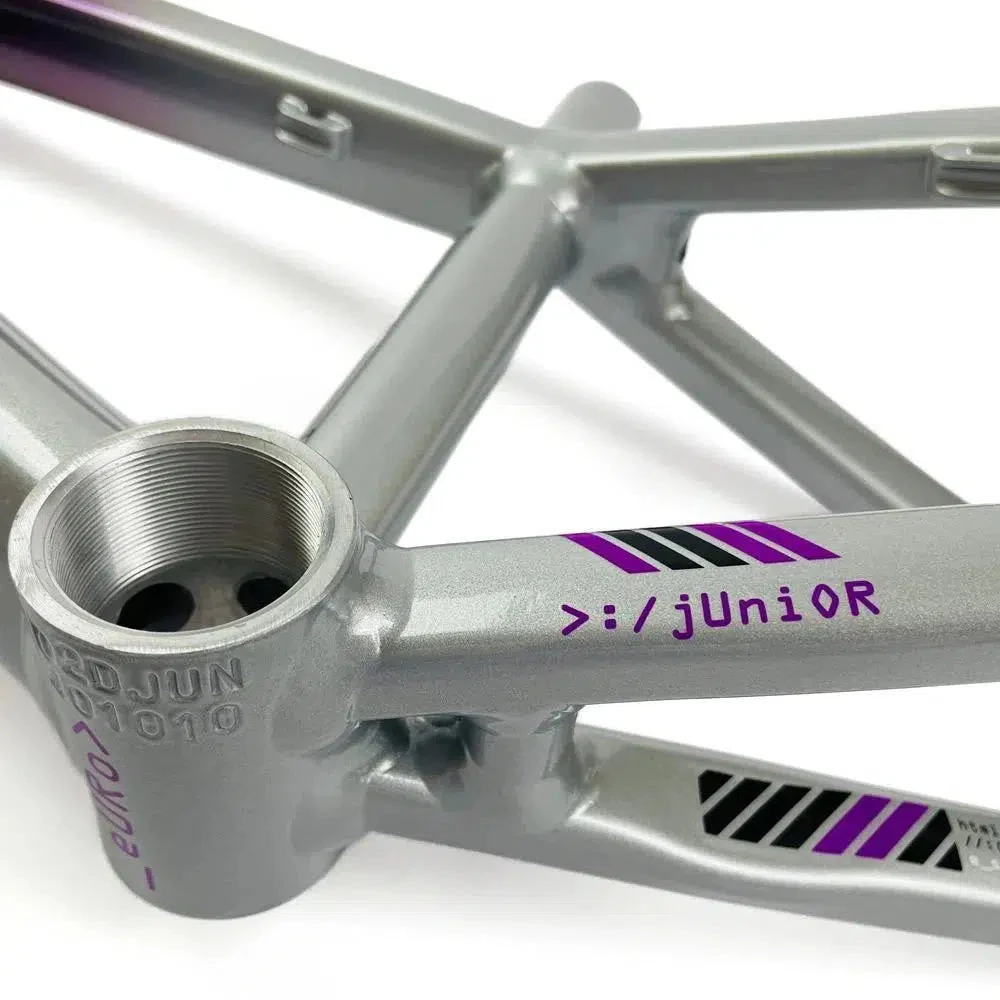

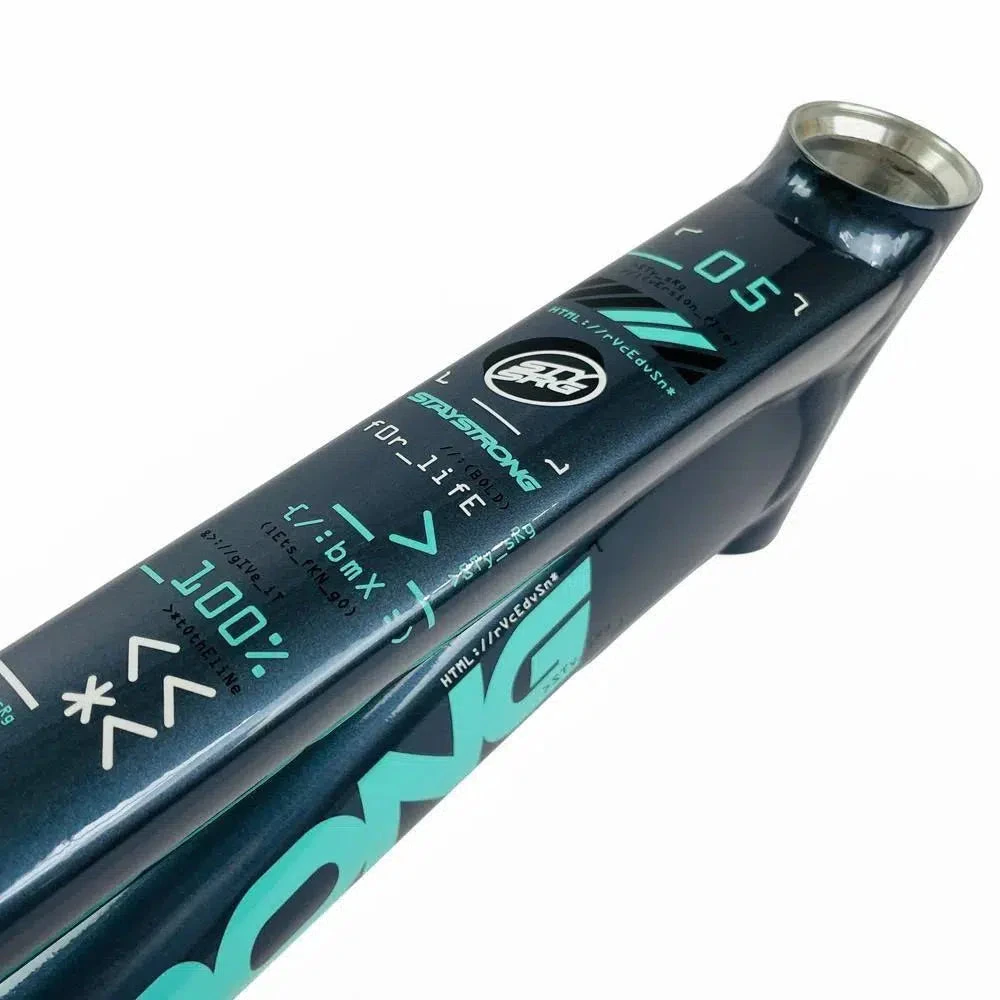

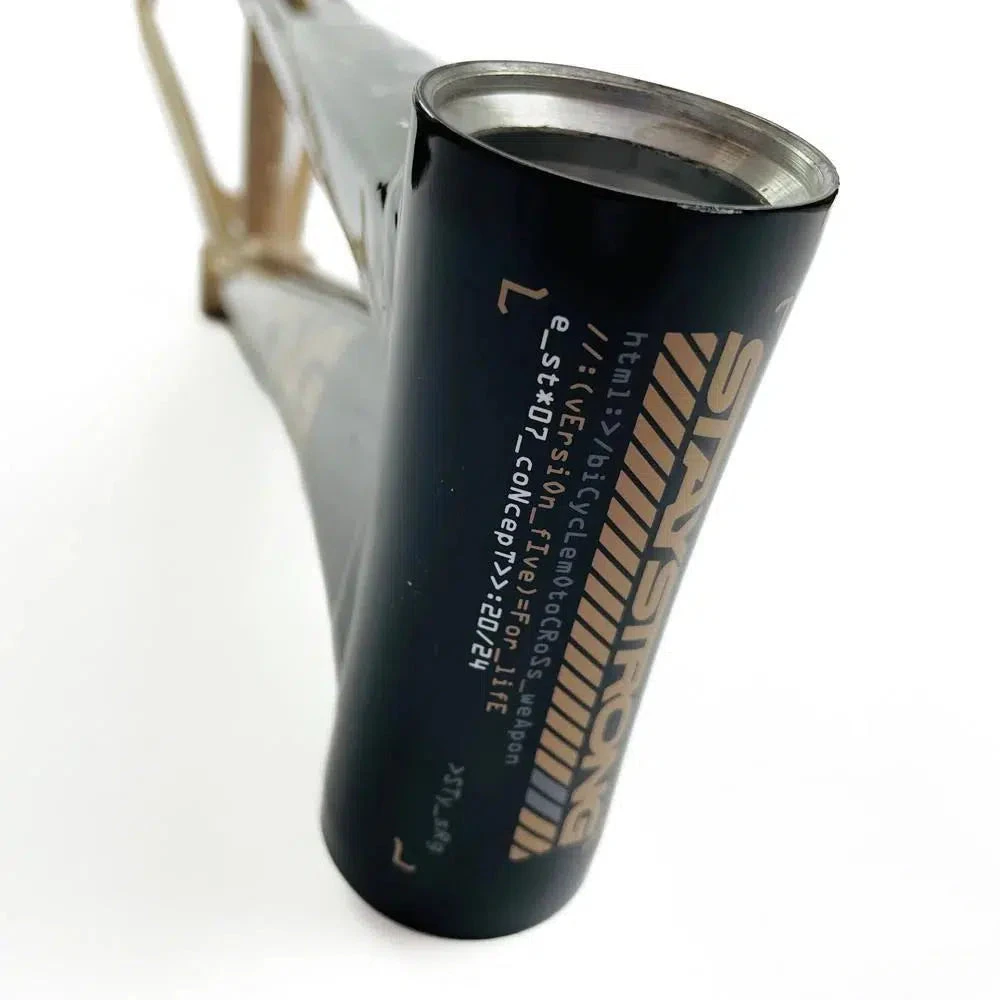

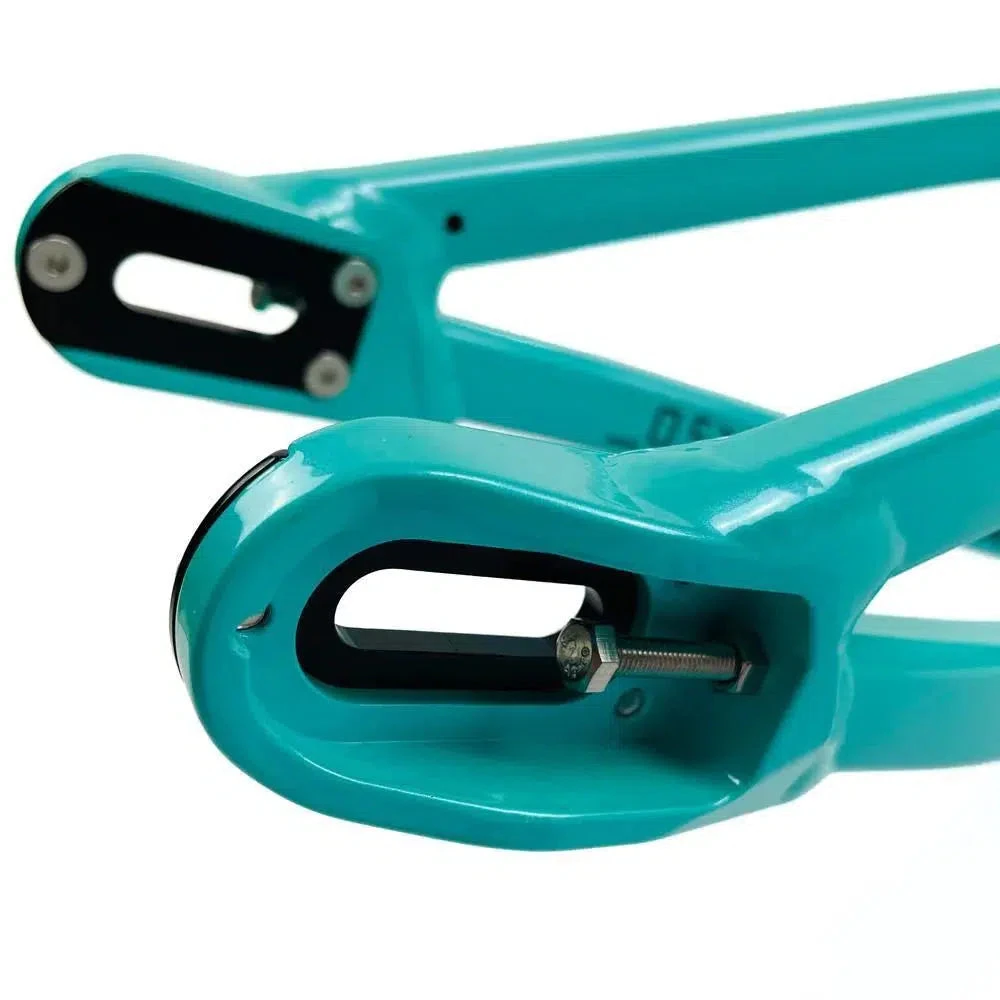

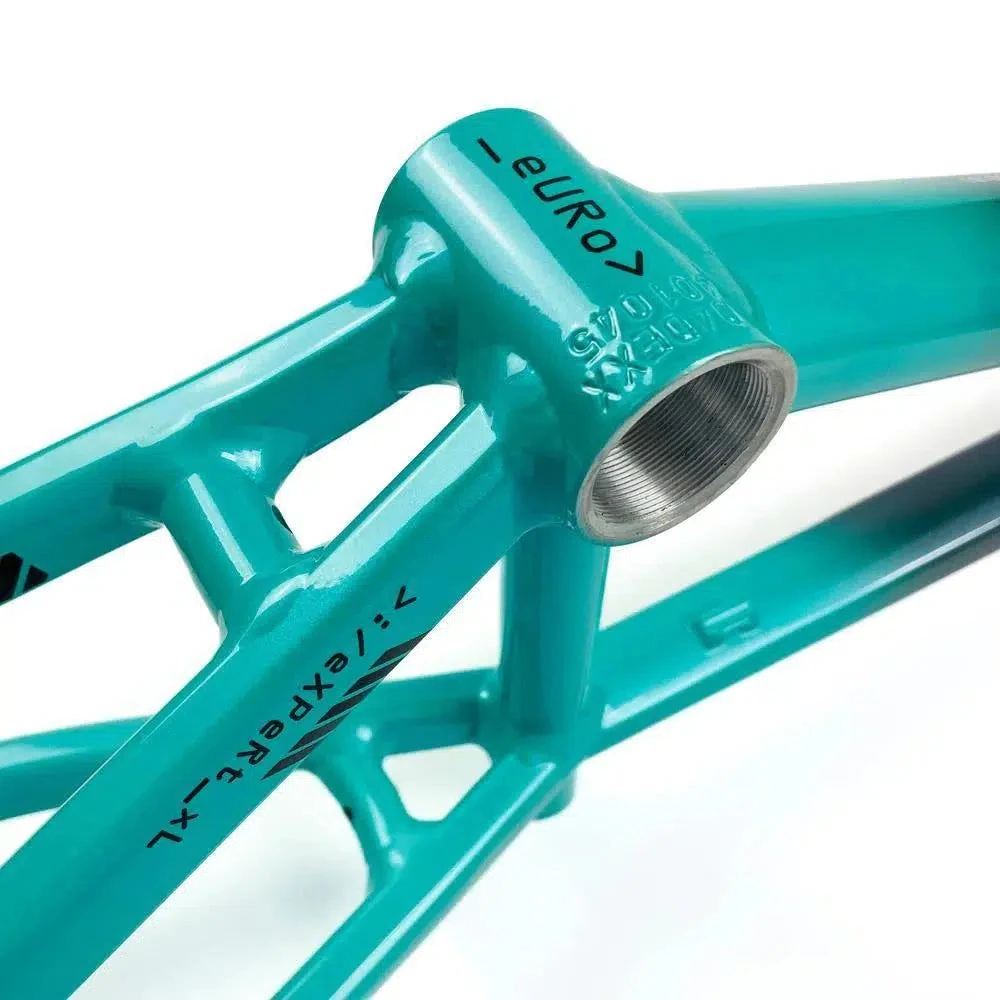

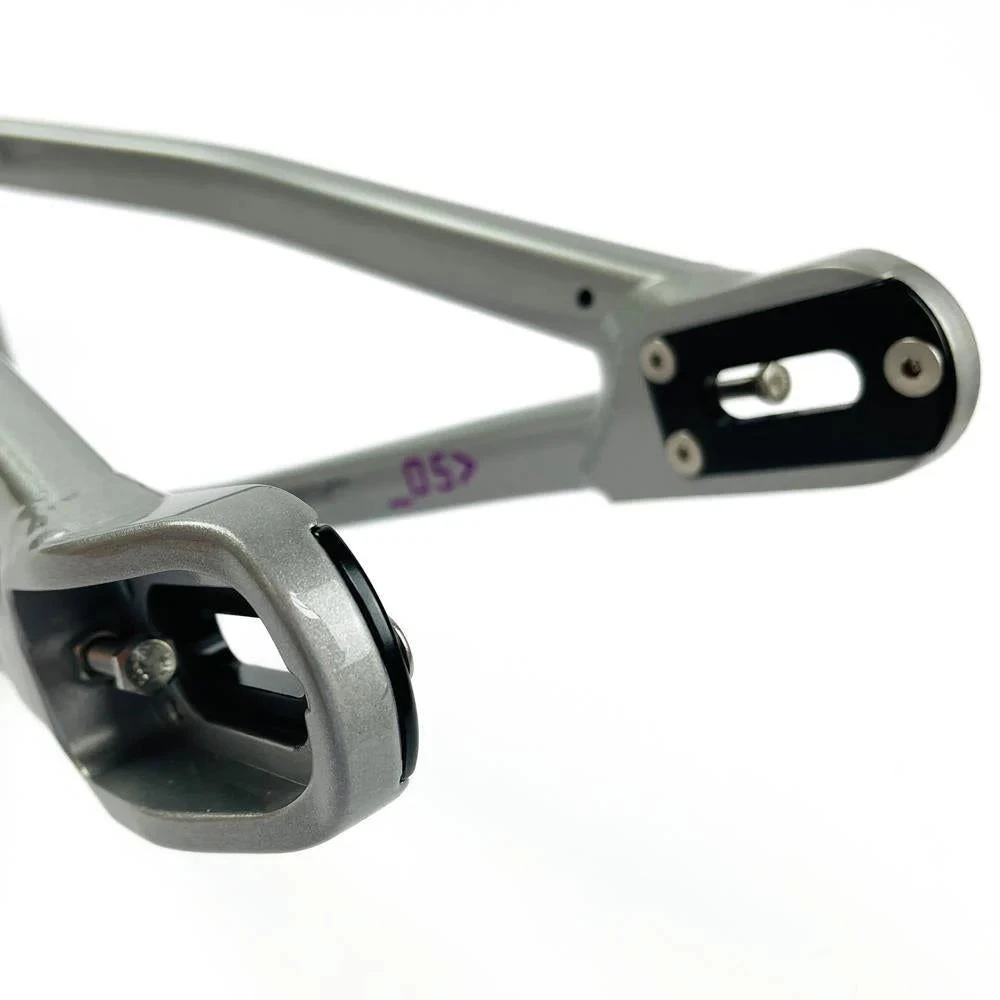

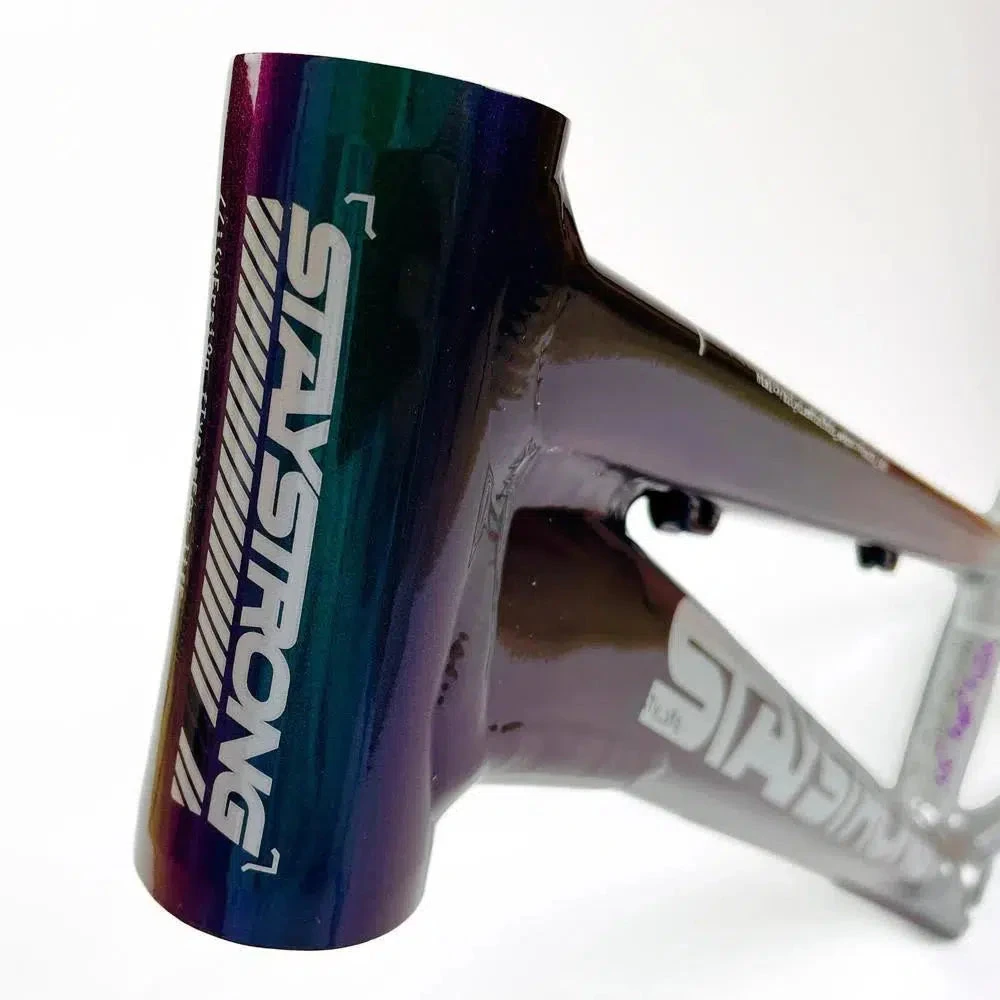

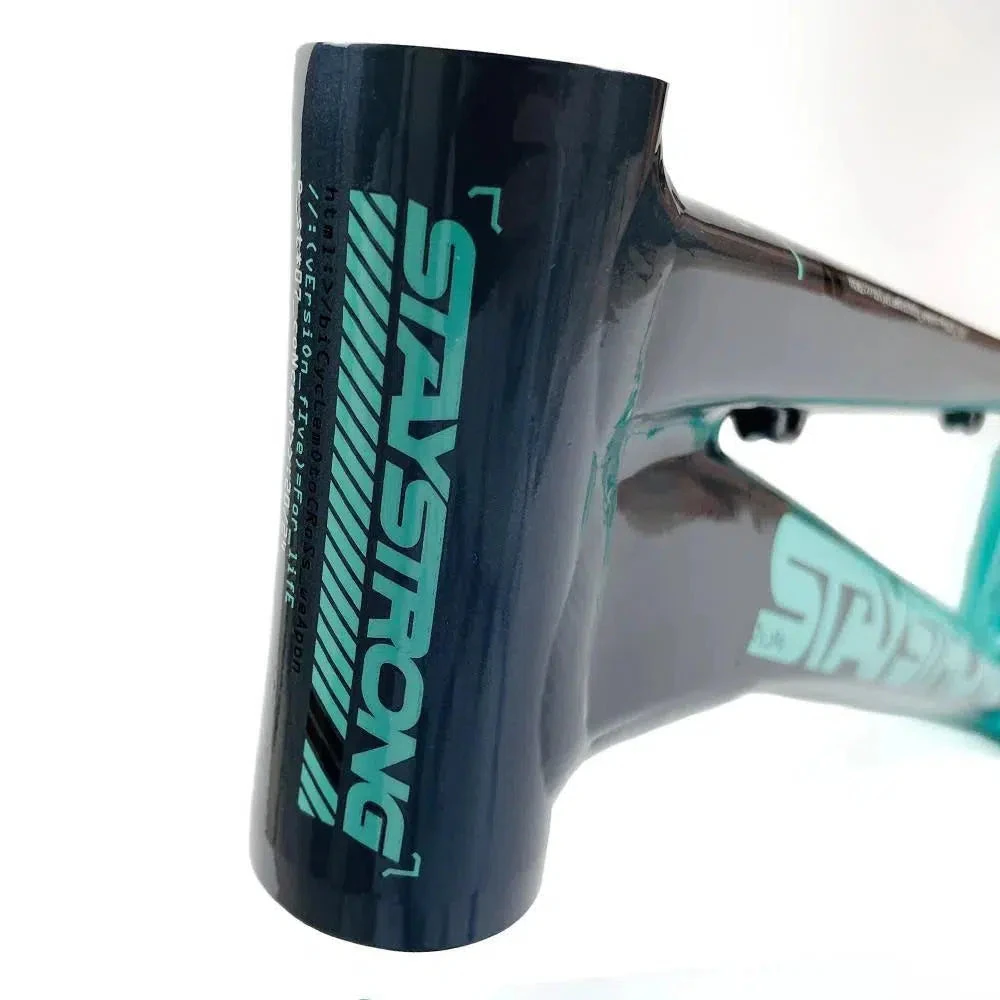

The “youth” frames (Mini up to Expert XL, and Expert Cruiser) all run with a Euro bottom bracket and a 10mm enclosed dropout. The head tube on these sizes are 1-1/8 meaning that you can run either a mini 1 inch fork, or beef it up with a 1-1/8th fork.

Trust a brand that’s been winning for years with real racing pedigree.

Frame Specs:

Model	Stay Strong V5 Mini
Frame Material	Aluminium 6061
Frame Weight	1159g
Top Tube Length	17.5 Inch
Chainstay Length	12.9 Inch
Bottom Bracket Height	10.6 Inch
Head Angle	73 Degree
Seat Angle	70 Degree
Head Tube Type	1-1/8th Integrated
Wheel Type	451 (20×1-1/8th)
Bottom Bracket Type	Euro
Seat Tube Diameter	22.2mm
Seat Clamp Diameter	25.4mm
Brake Type	Disc – Post Mount / 120mm Rotor Size
Dropout type	Slotted – 10mm
