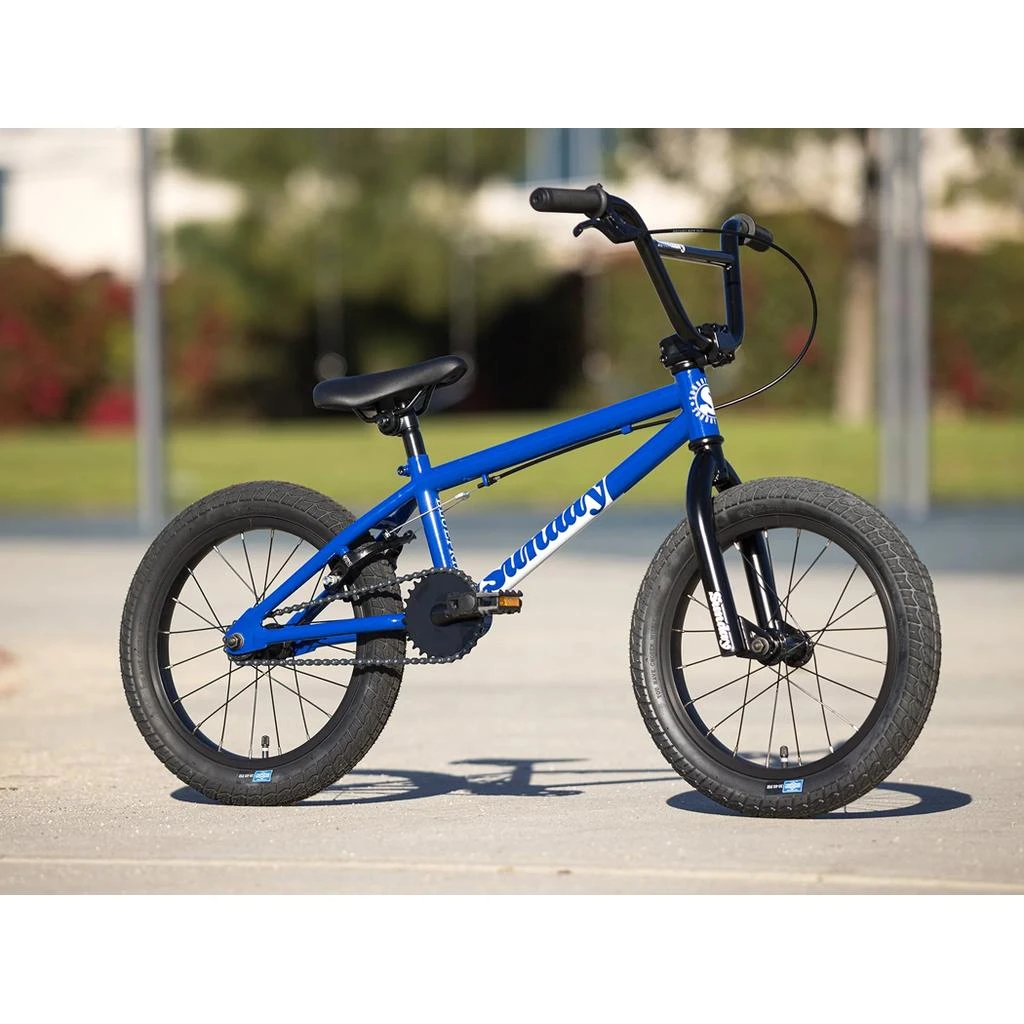

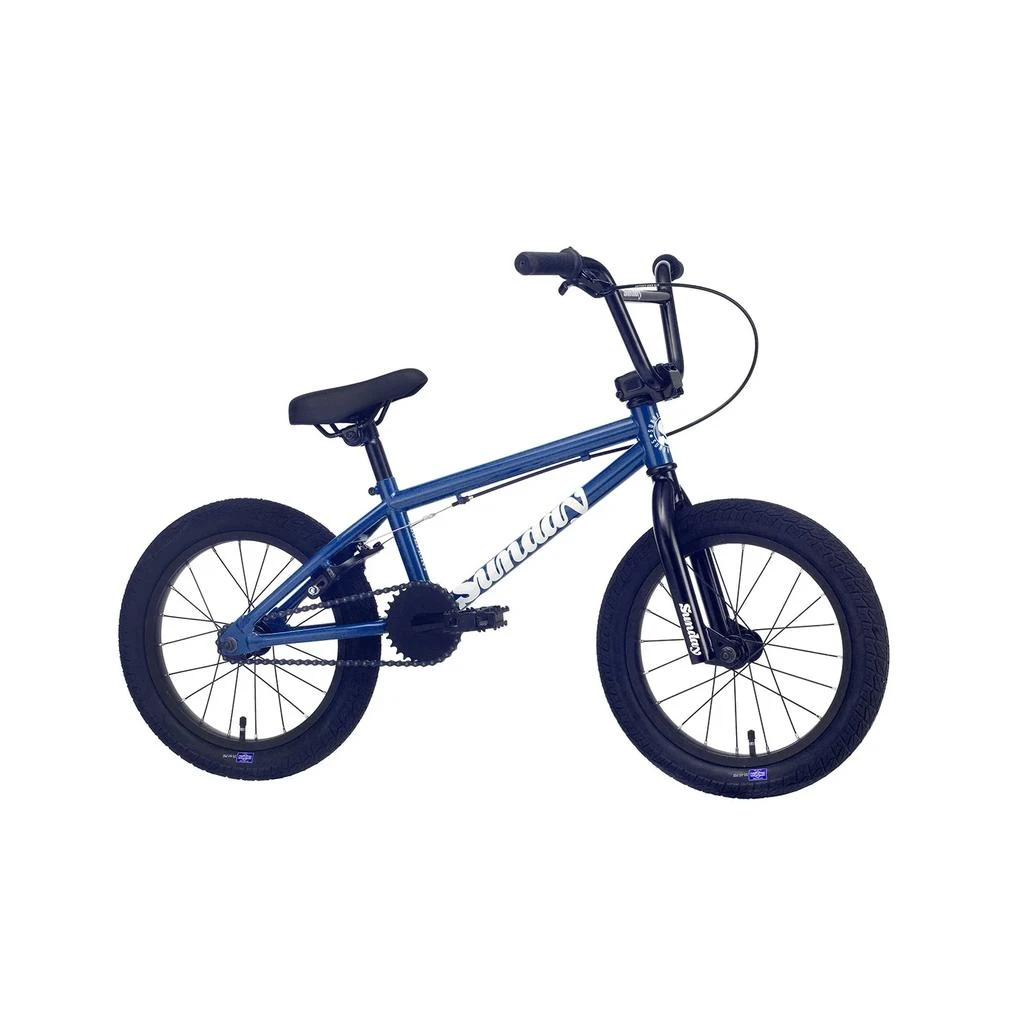

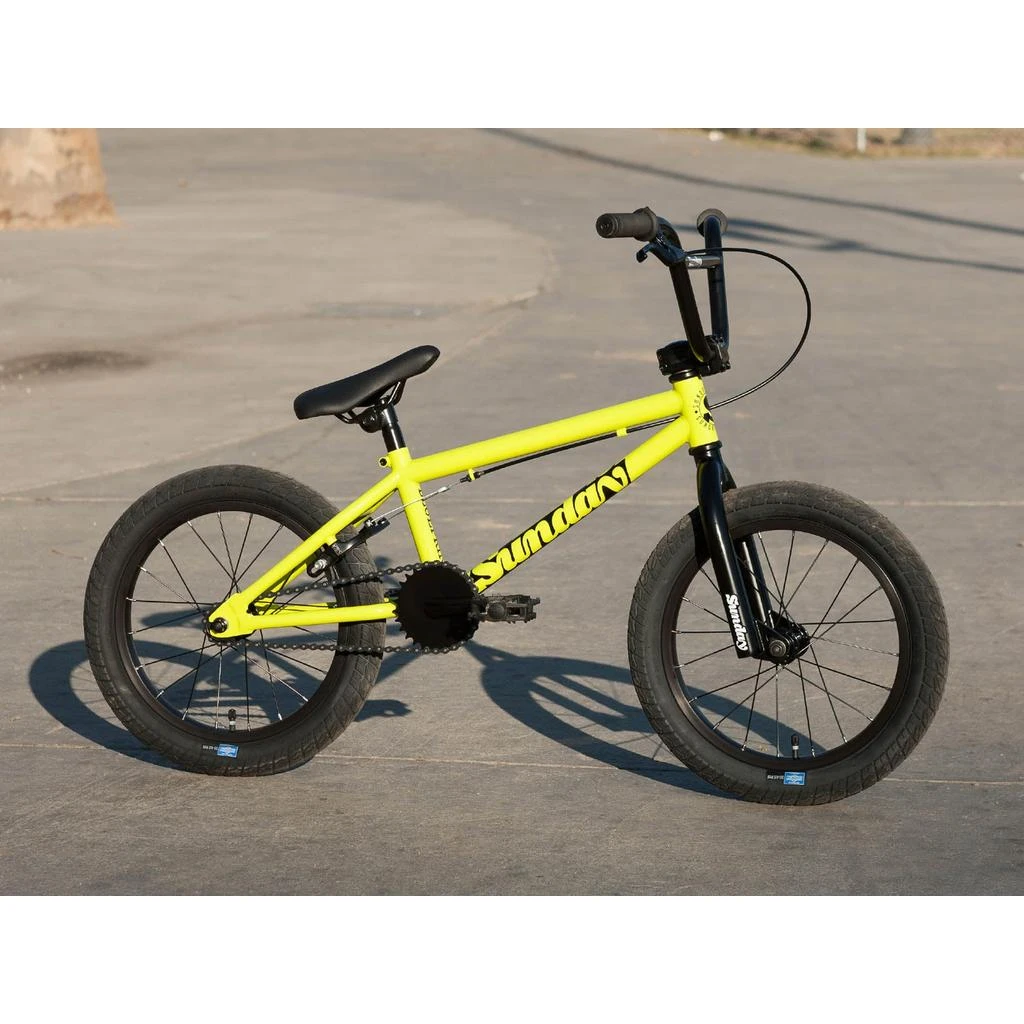

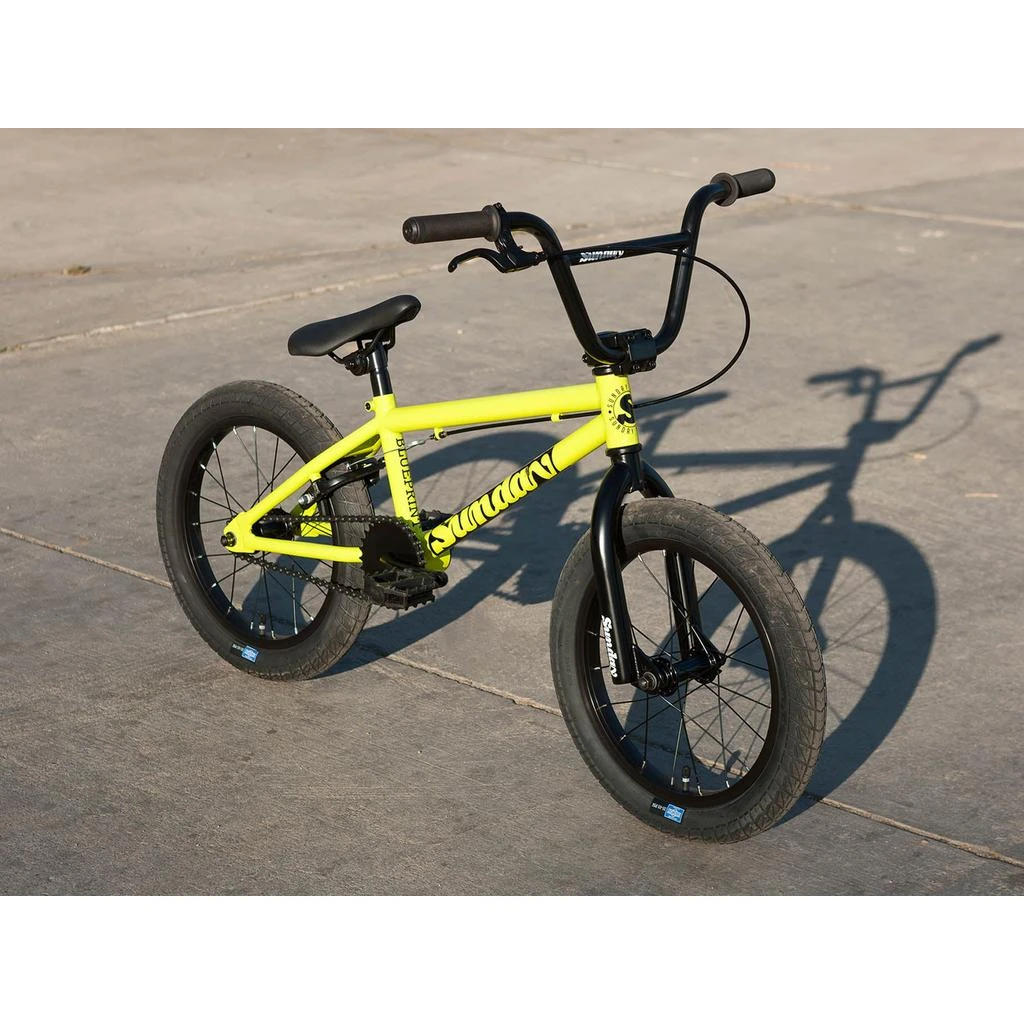

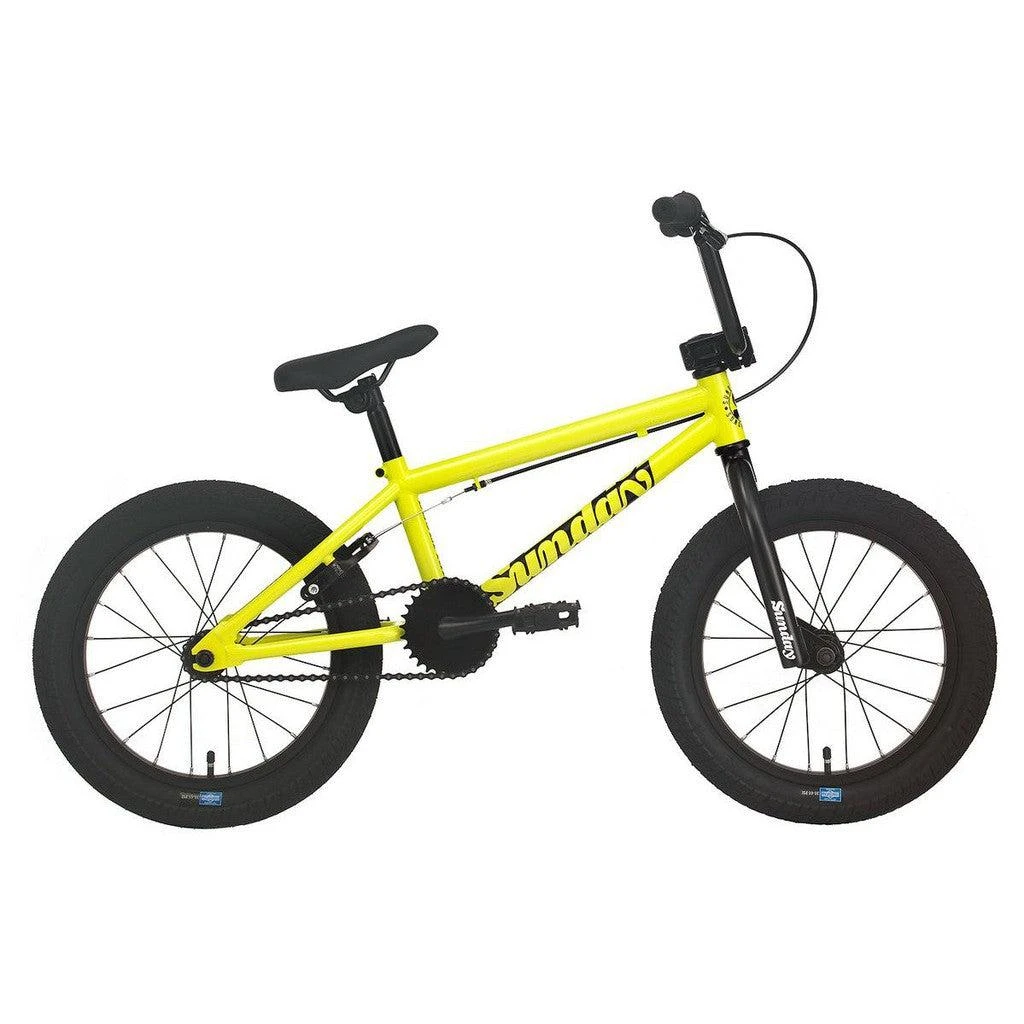

Sunday Blueprint 16 Inch Bike

Sunday Blueprint 16 Inch Bike

Get your kids shredding in style on one of these rad little Sunday Blueprints. Odyssey Springfield Brakes ensure that skids will be ripping and scaled down geometry will make this bike handle well. These bikes aren’t designed for jumping or tricks, but if your little one is looking for a sweet ride to get to school or the shops then look no further.

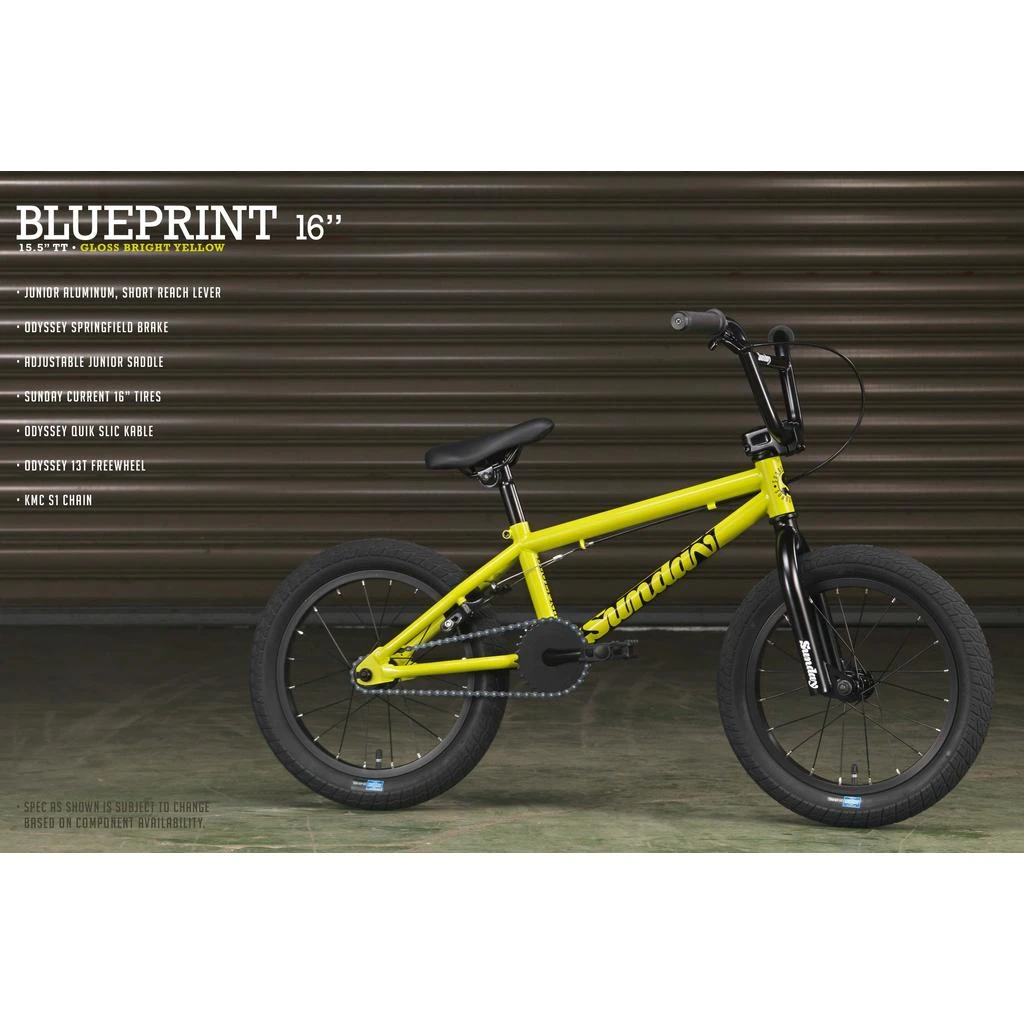

The Blueprint 16″ is ready to help kids of all ages learn to ride.

Sunday’s entry-level 16” bikes are fun and easy to use so kids can keep learning and keep riding. Simplicity and reliability are the goals with the Blueprint, and details like an adjustable seat and an adjustable reach brake lever mean that you can get the bike set up perfectly for riders of all sizes.

Features
– Adjustable Junior Saddle
– Sunday Current 16″ Tires
– 13t Odyssey Freewheel
– Odyssey Springfield Brakes
– Odyssey Quik Slic Kable
– KMC S1 Chain

Specifications

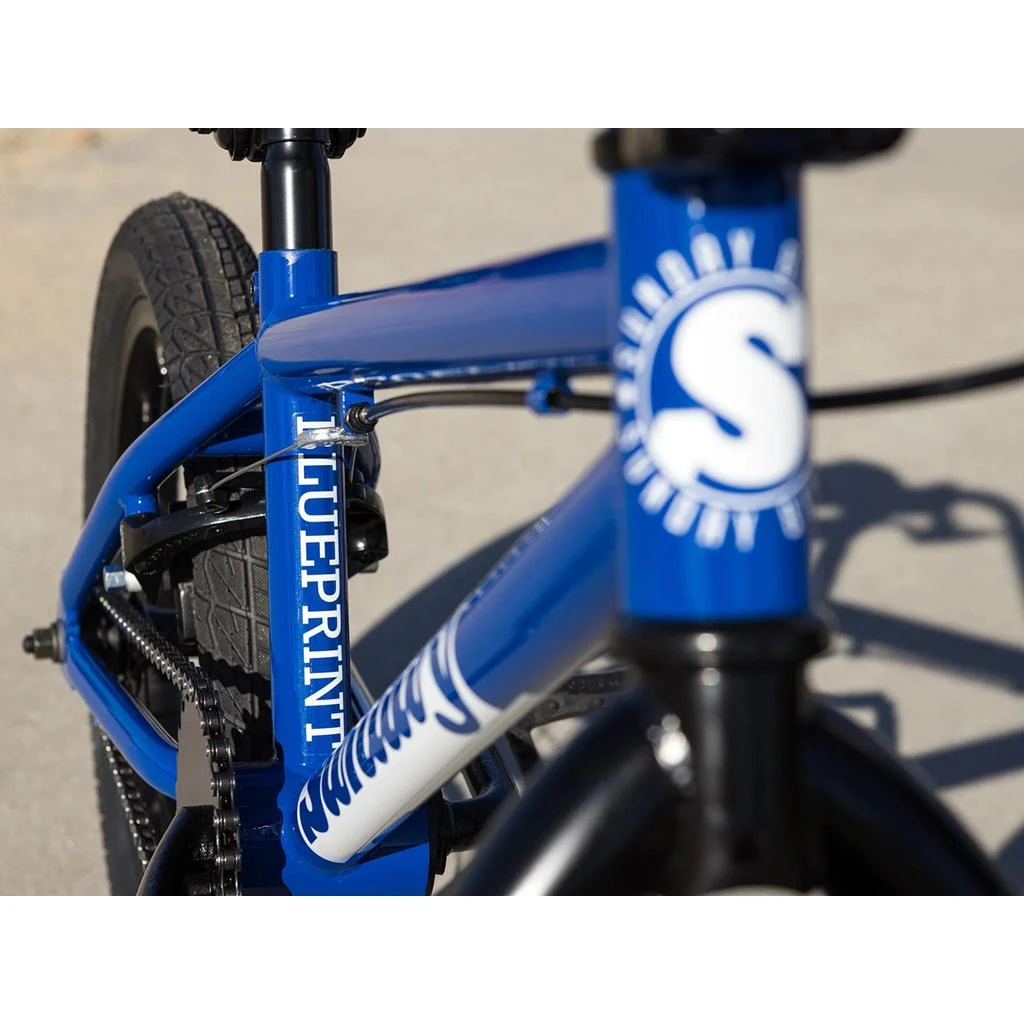

Frame – Sunday Blueprint, 15.5″ top tube
Fork – Sunday Blueprint 16″ fork w/ 2-piece steerer tube
Handlebar – Sunday, 2-piece

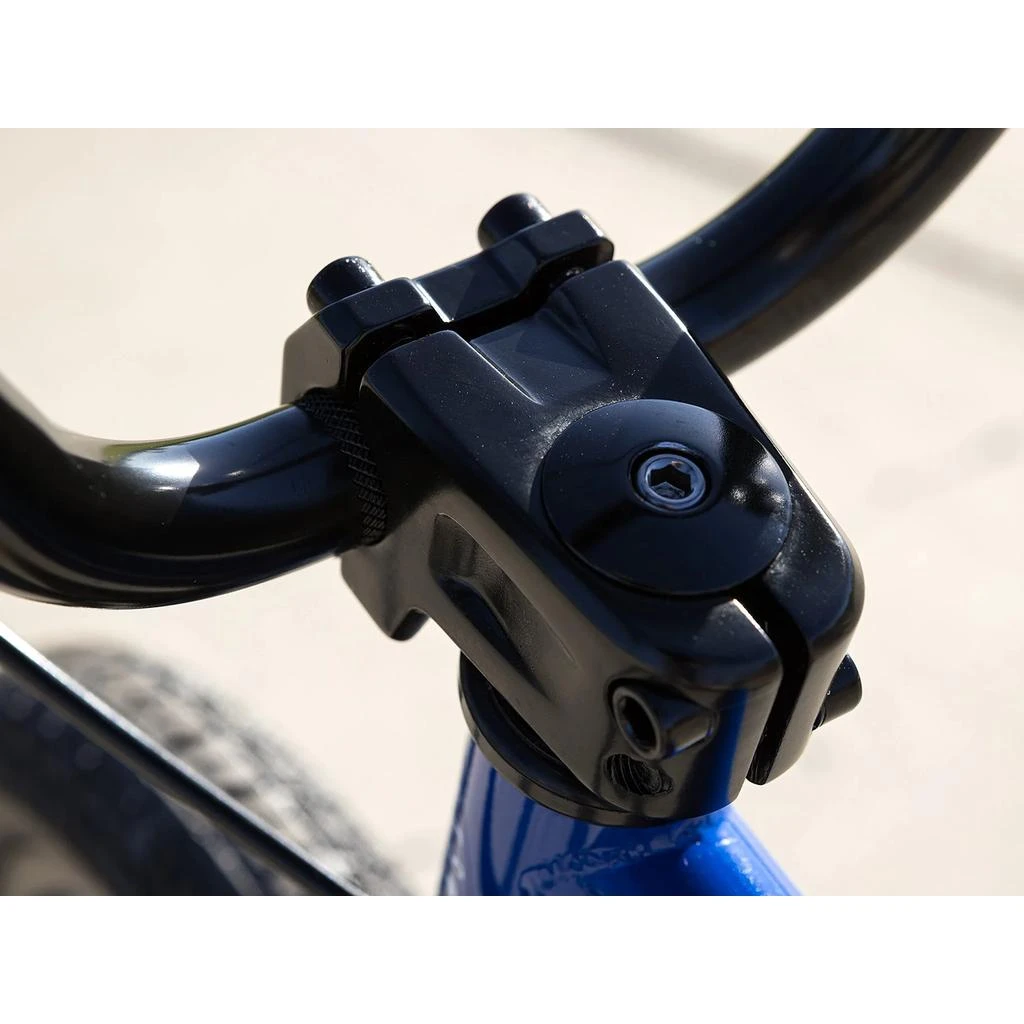

Stem – Front load, aluminium, 40mm
Headset – Traditional 1-1/8″
Alloy Cap – Aluminum cap w/ star nut

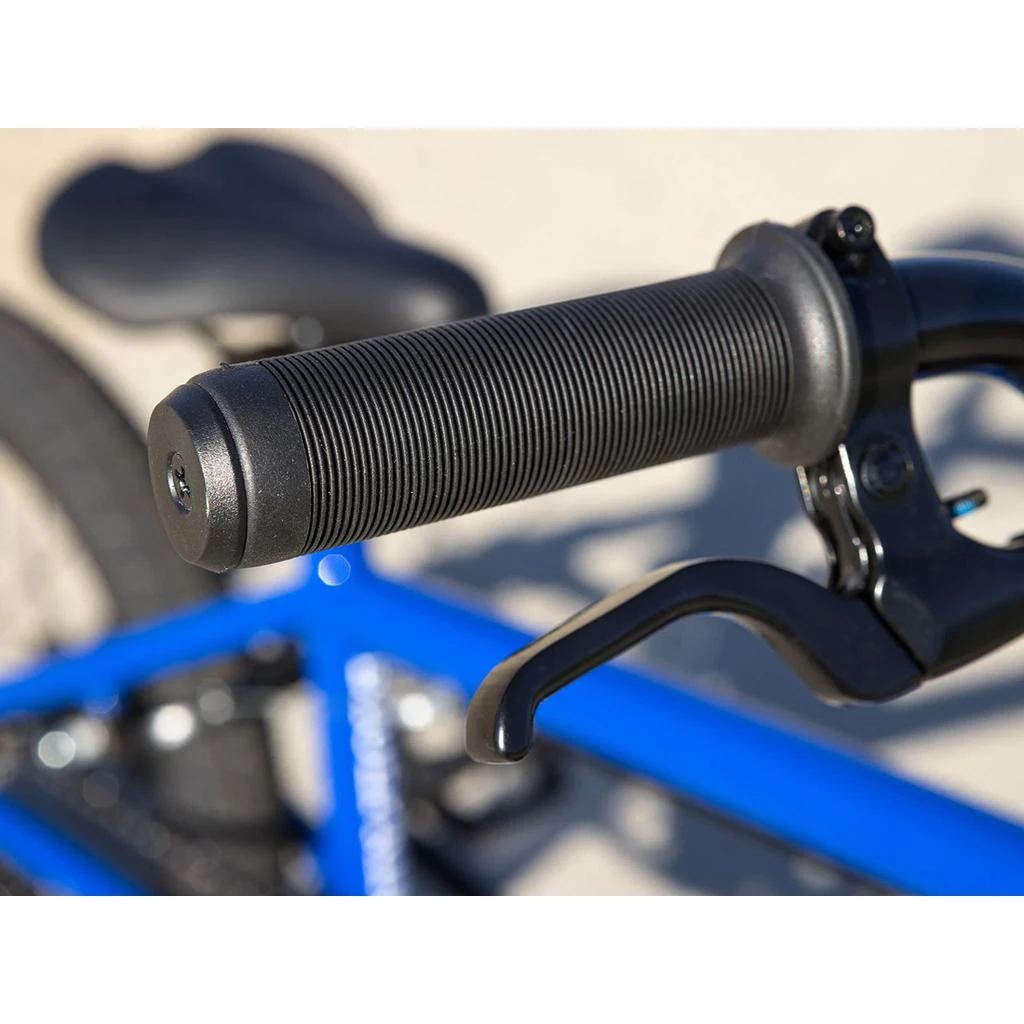

Brake Lever – Junior Aluminum, Short Reach, U-brake compatible

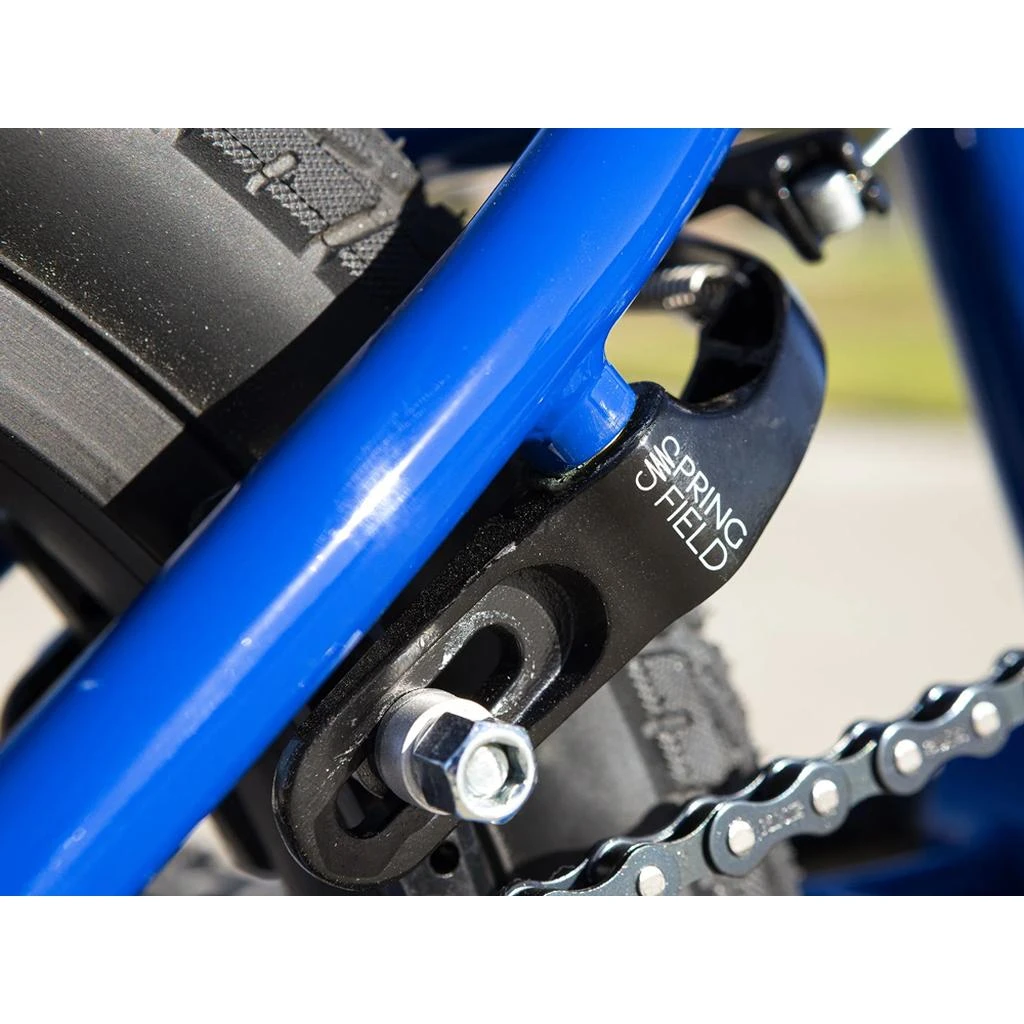

Brakes – Odyssey Springfield U-brake
Brake Cable – Odyssey Quik Slic
Grips – Velo Junior

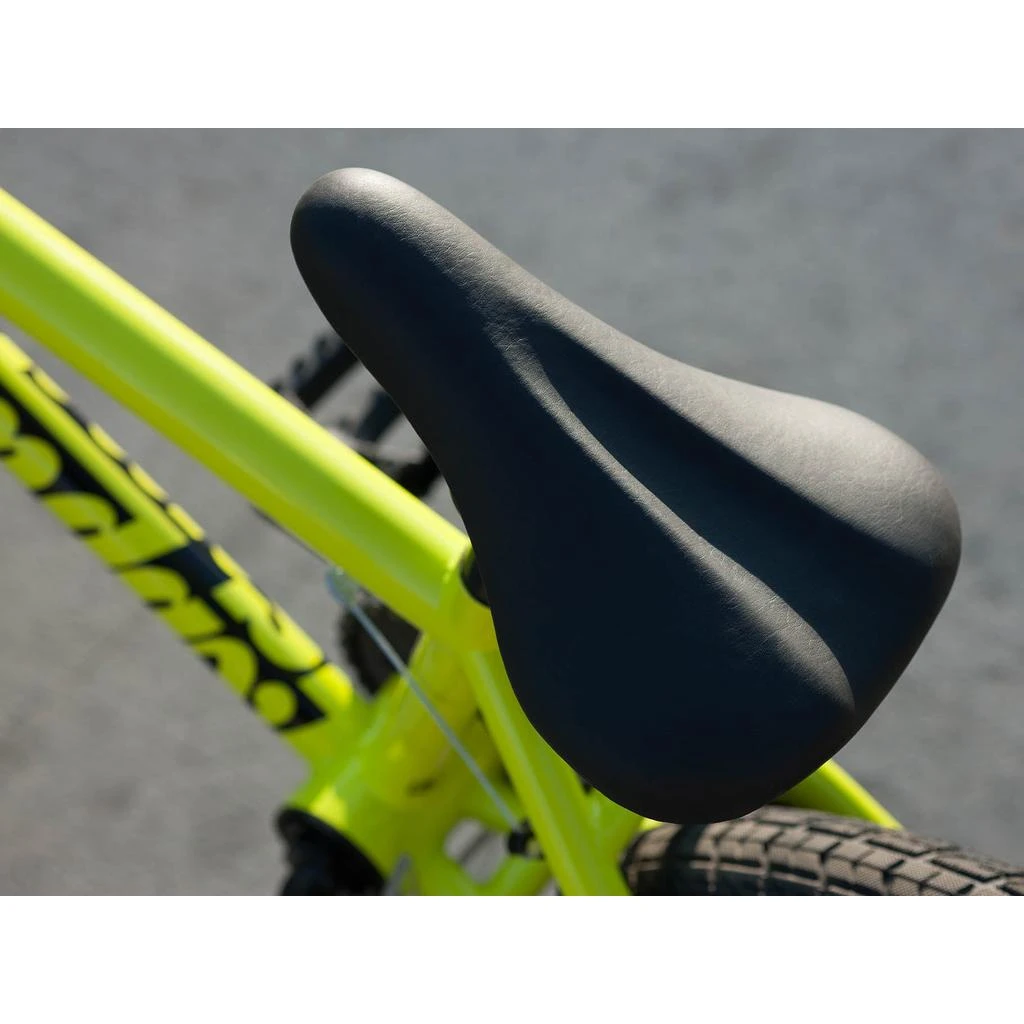

Seat – Velo Junior, adjustable
Seat Post – 1″ steel
Seat Clamp – Integrated

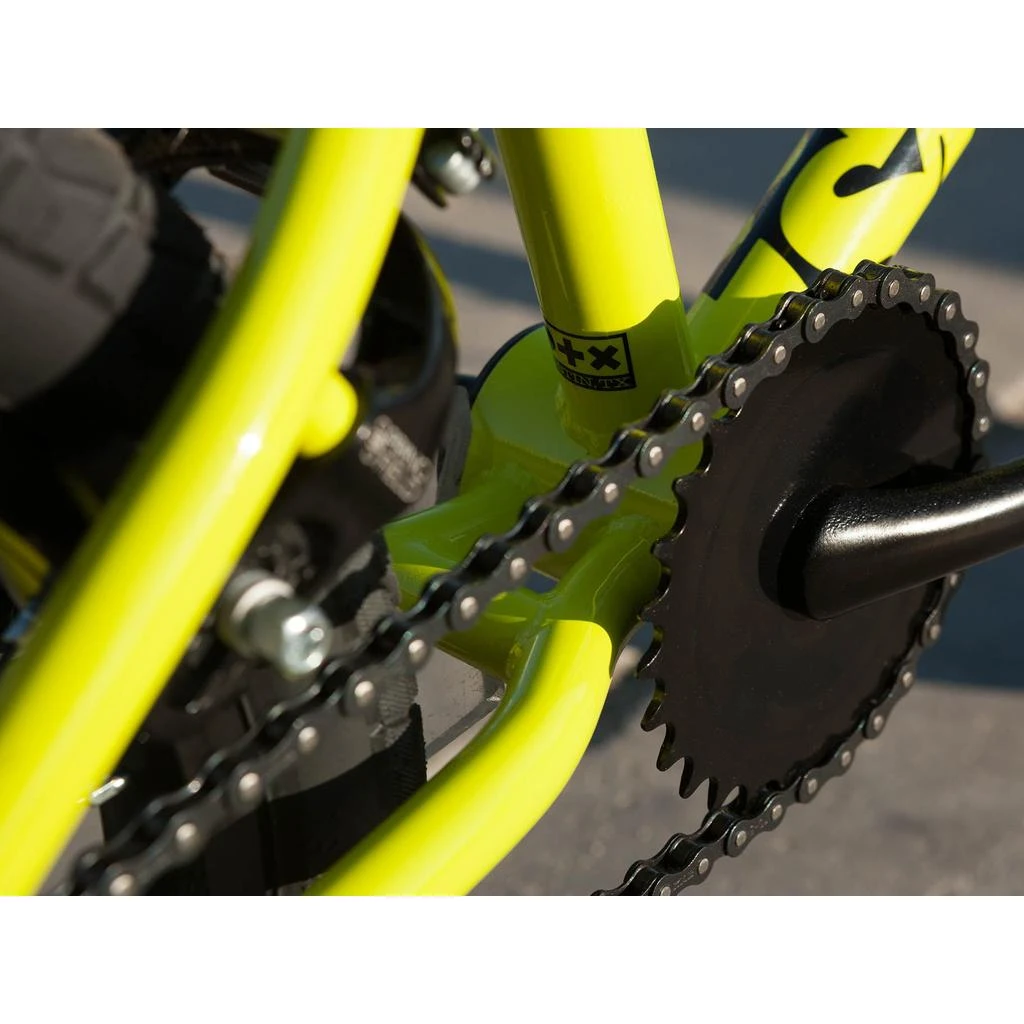

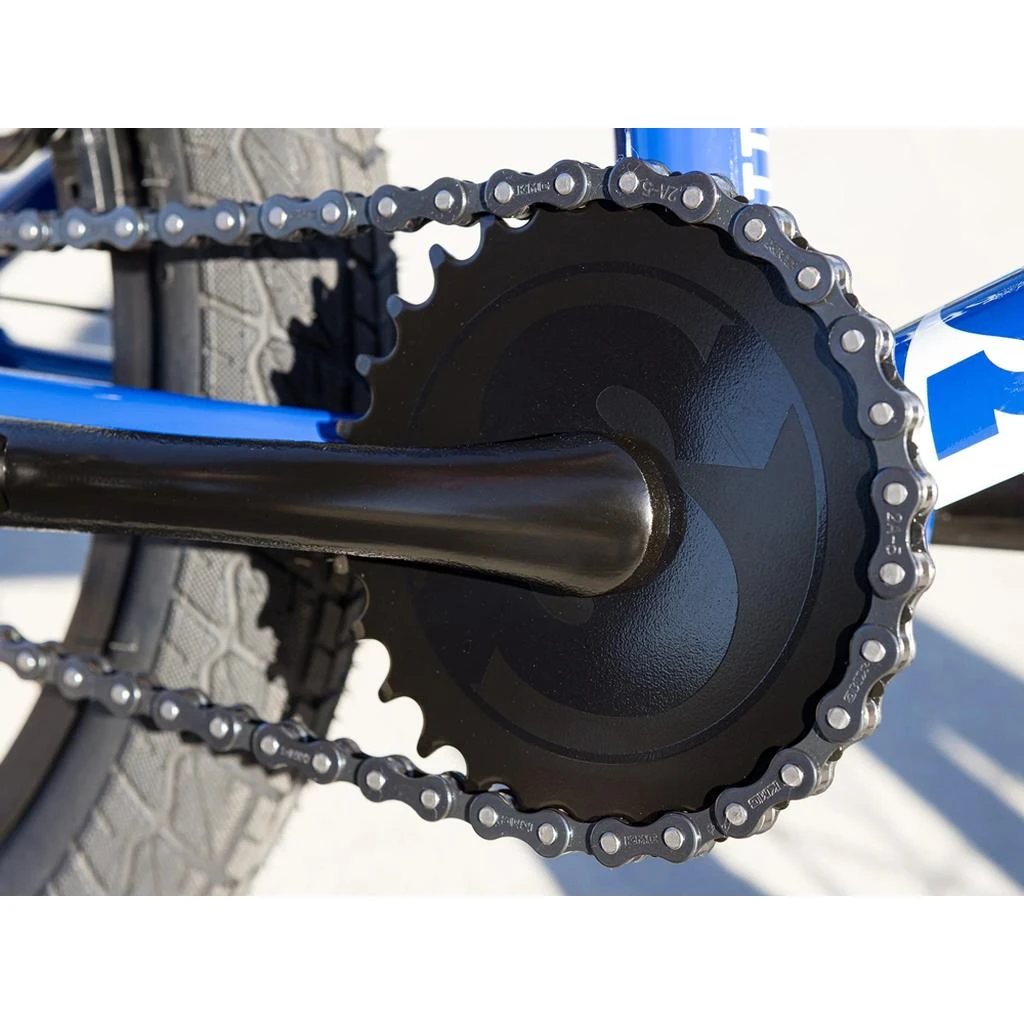

Sprocket – Sunday S-Logo, 28-T, steel
Cranks – 115mm, 1-piece
BB Parts – Loose-ball, American, 19mm
Pedals – Wellgo Junior platform, plastic
Rims – P-7X aluminum, 16″, 20H
Front Hub – Sunday, 20H, low-flange, loose-ball, 3/8″ axle
Rear Hub – 20H, loose-ball, 3/8 axle w/ Odyssey 13T freewheel
Spokes – 14g steel, black
Tyres – Sunday Current, 16×2.1″ (F&R)
Chain – KMC S1
Approx. Weight – 9.86kgs (with brakes)

Frame Geometry
Top Tube Length – 15.5″
Head Tube Angle – 73.5°
Seat Tube Angle – 71°
Chainstay Length – 11.25″
Bottom Bracket Height – 9.25″
Standover – 6.9″

Handlebar Geometry
Rise – 6.75″
Width – 23″
Backsweep – 12°
Upsweep – 1°
