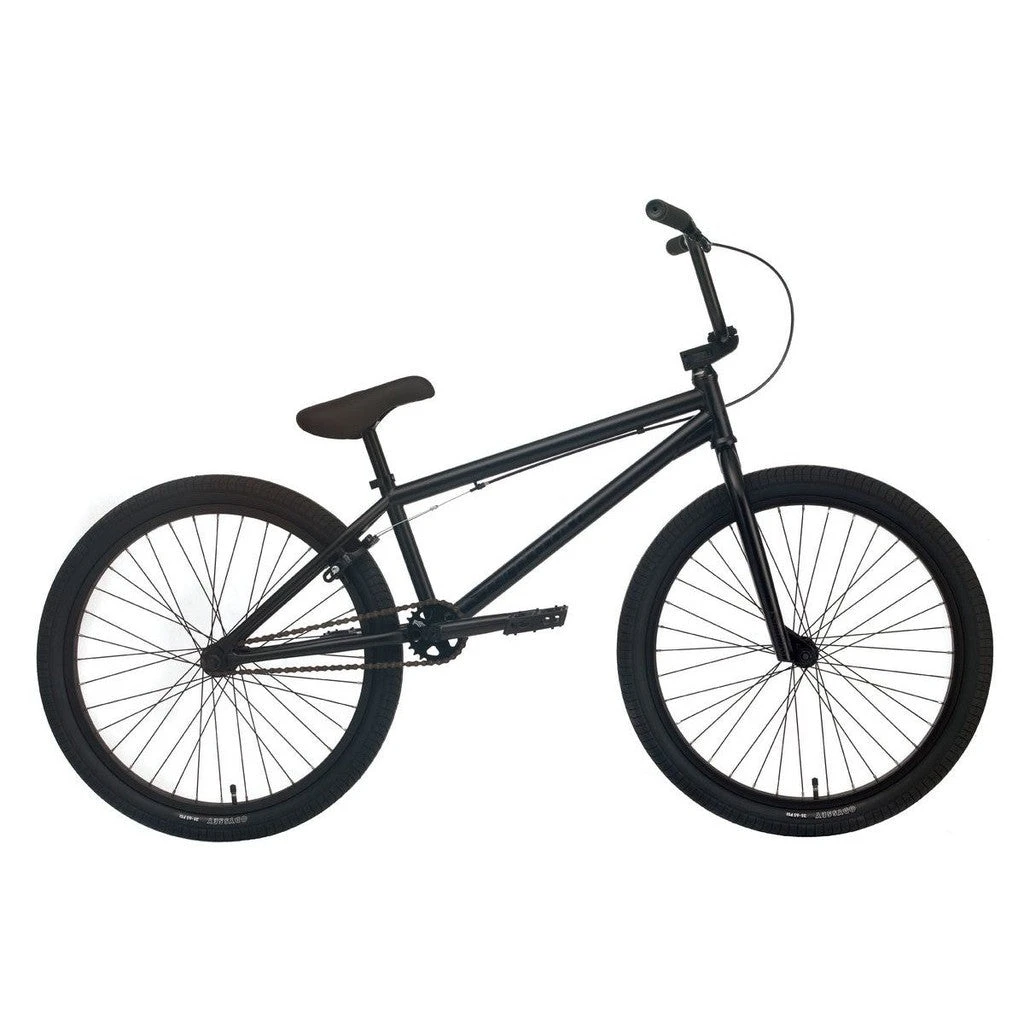

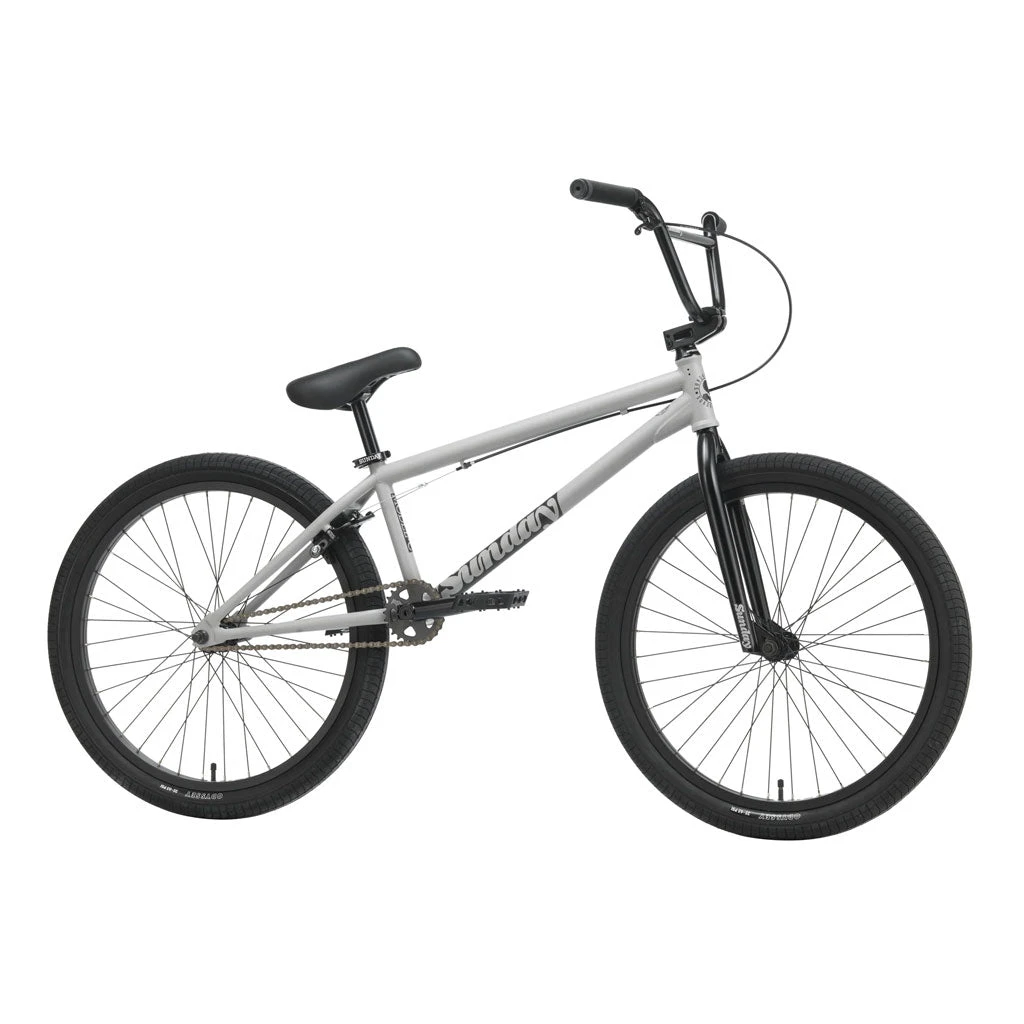

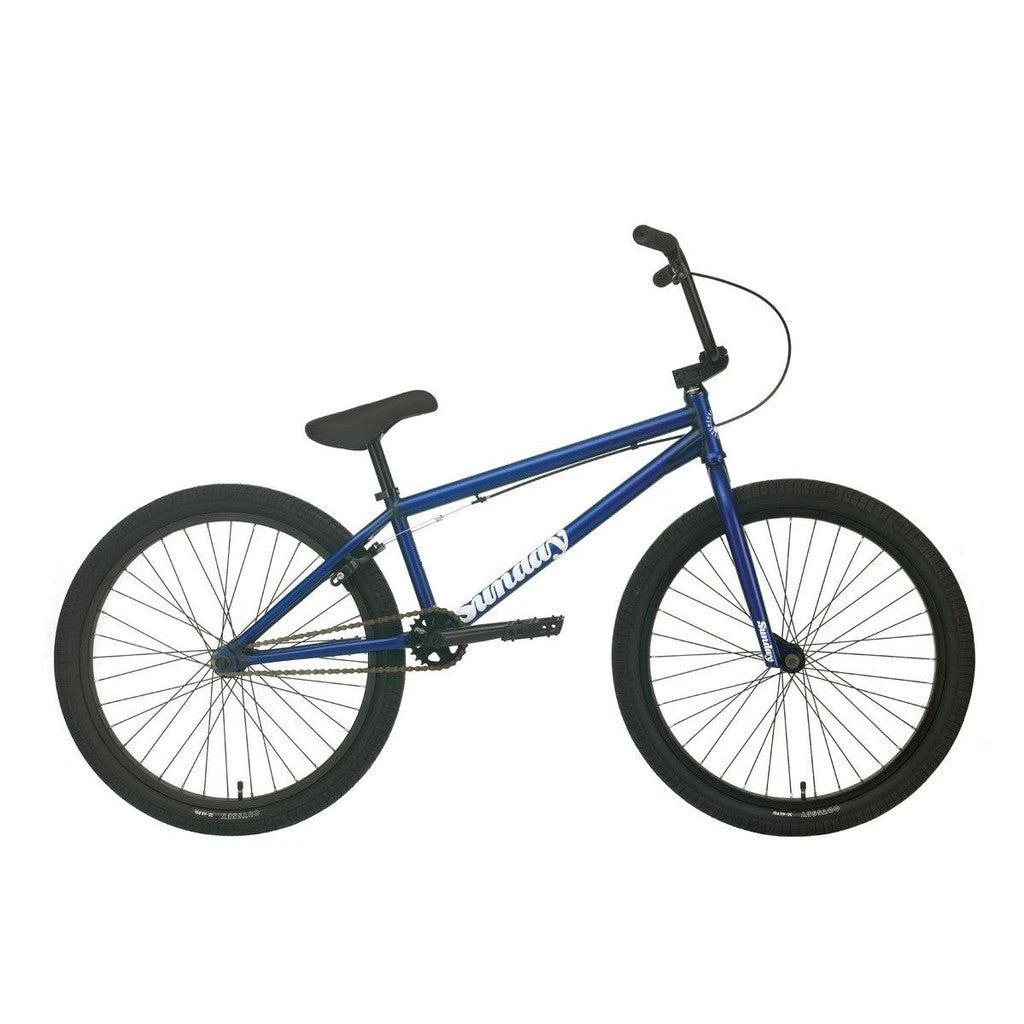

Sunday Model C 24 Inch Bike

The Model C created the modern standard in 24” BMX.

With its proven 20” inspired geometry, this bike can be ridden with a greater sense of control at full speed. Bigger riders will notice its advantages right away. Full Chrome finish on Frame, Forks, and Bars, with an awesome Odyssey/Sunday parts package at an affordable price.

When it comes to 24”, the Model C changed the game.

Features
– 100% Chromoly Frame
– 24″ Pro-Style Geometry
– Odyssey Broc Raiford Grips
– Odyssey Springfield Brakes
– Odyssey Twisted PC Pro Pedals
– Odyssey Monogram Seat
– FSA Conical Headset
– Odyssey Pursuit OEM Tires
– Sealed Front & Rear Hubs

Specifications
Frame – Sunday Model-C, 22″ TT, 100% Chromoly frame, integrated 1-1/8″ head tube
Fork – Sunday Model-C, 24″ fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar – Sunday 24umph XL OEM, 2-piece
Stem – Sunday Freeze top load, 48mm
Headset – FSA integrated conical, 1-1/8″
Alloy Cap – Sunday M16, aluminium
Brake Lever – Odyssey Springfield
Brakes – Odyssey Springfield U-brake
Brake Cable – Odyssey Quik Slic
Grips – Odyssey Broc Raiford
Seat – Odyssey Monogram, Pivotal
Seat post – Sunday Pivotal, 300mm
Seat Clamp – (Matt Black & Trans Blue) Sunday Clamp. (Matt Battleship Grey) Sunday Q/R Clamp
Sprocket – Sunday Sabertooth v2, 25T, steel
Cranks – 175mm, 3-piece, Chromoly
BB Parts – Sealed, Mid, 19mm
Pedals – Odyssey Twisted PC Pro
Rims – (Matt Black & Trans Blue) Sunday Lightning, 24″, 36H. (Matt Battleship Grey) Odyssey Stage 1, 24″, 36H
Front Hub – Sunday, 36H, low-flange, sealed , 3/8″ axle
Rear Hub – Sunday 36H, sealed, 14mm axle w/ 10T Driver
Spokes – 14g steel, black
Tyres – Odyssey Pursuit OEM, 24 x 2.2″ (F & R)
Chain – KMC Z1 wide
Approx. Weight – 13.20kg (with brakes)

Frame Geometry
Top Tube Length – 22″
Head Tube Angle – 74.5°
Seat Tube Angle – 71°
Chainstay Length – 14.6-14.85”
Bottom Bracket Height – 13.75″
Standover – 9.25”

Handlebar Geometry
Rise – 7.75″
Width – 28″
Backsweep – 12°
Upsweep – 4°
