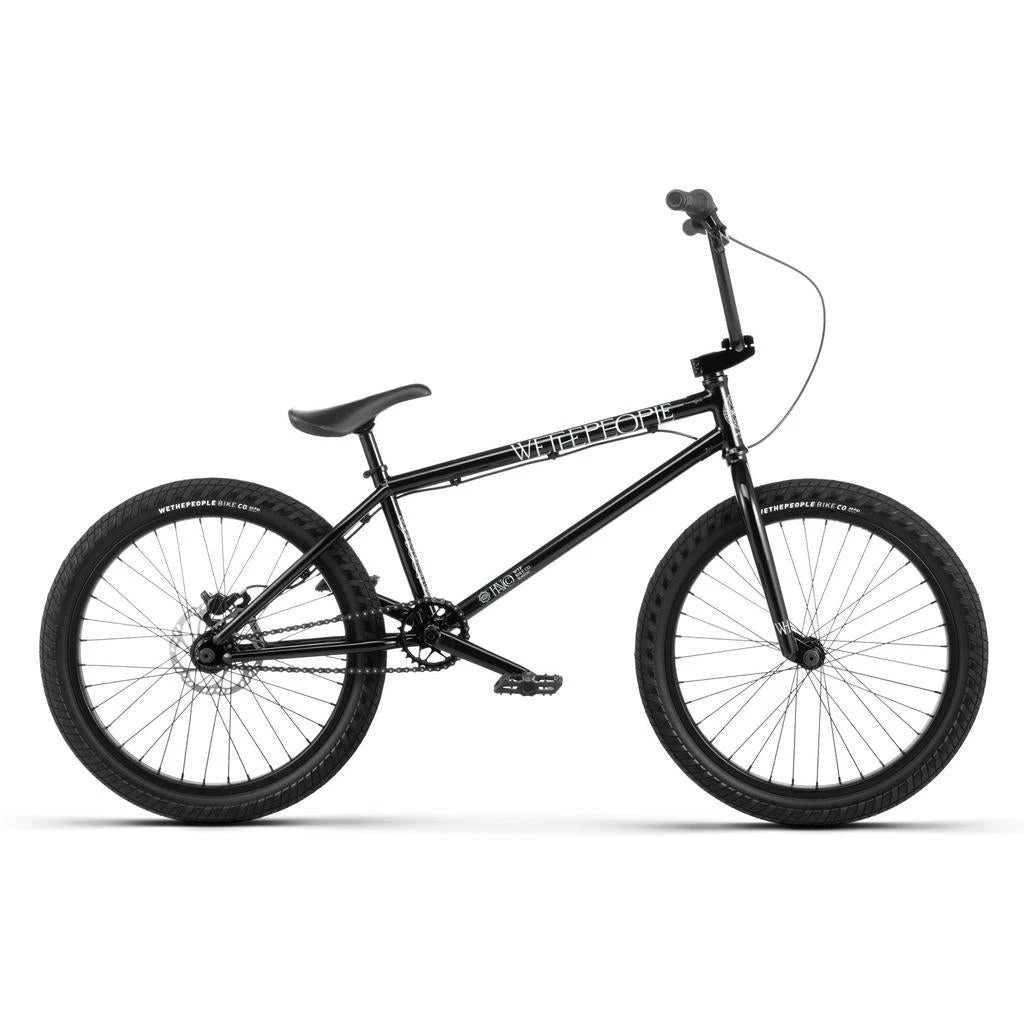

Wethepeople Havoc 22 Inch Bike

Wethepeople Havoc 22 Inch Bike

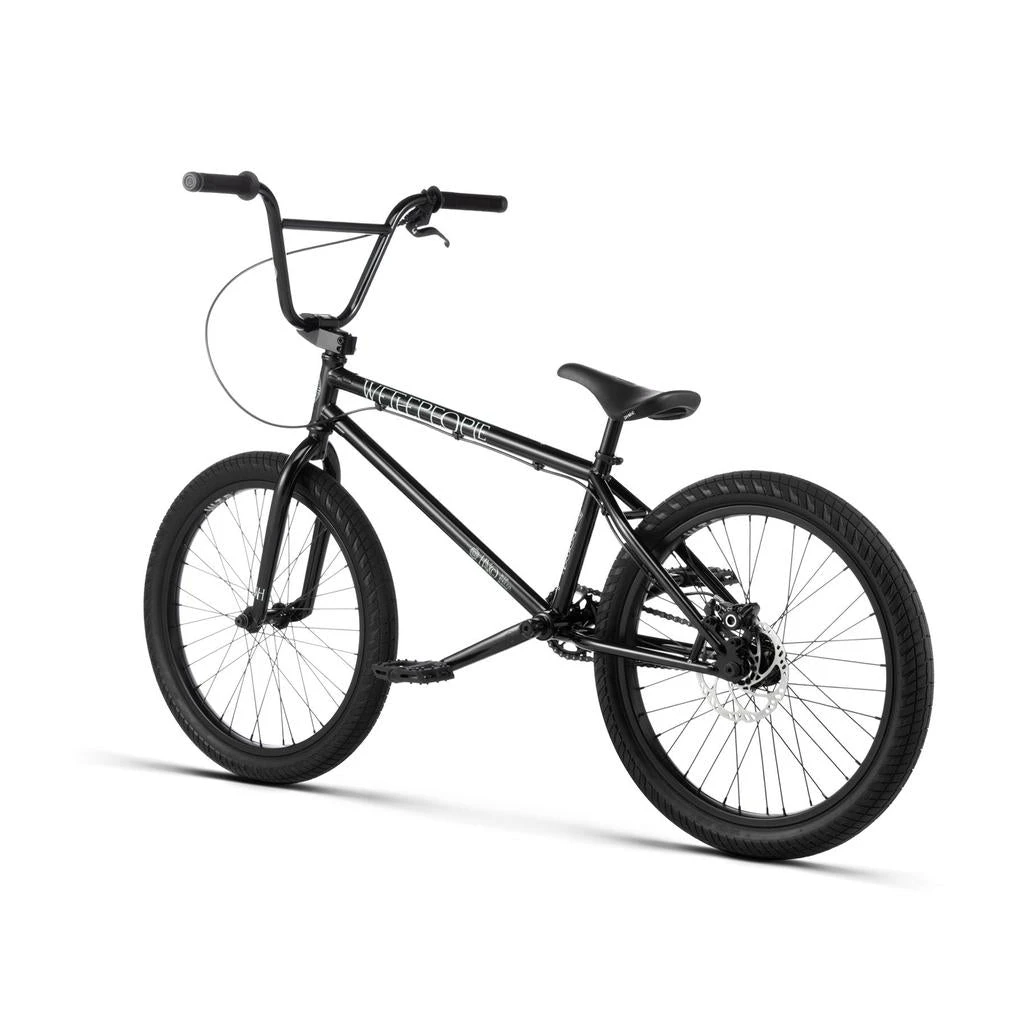

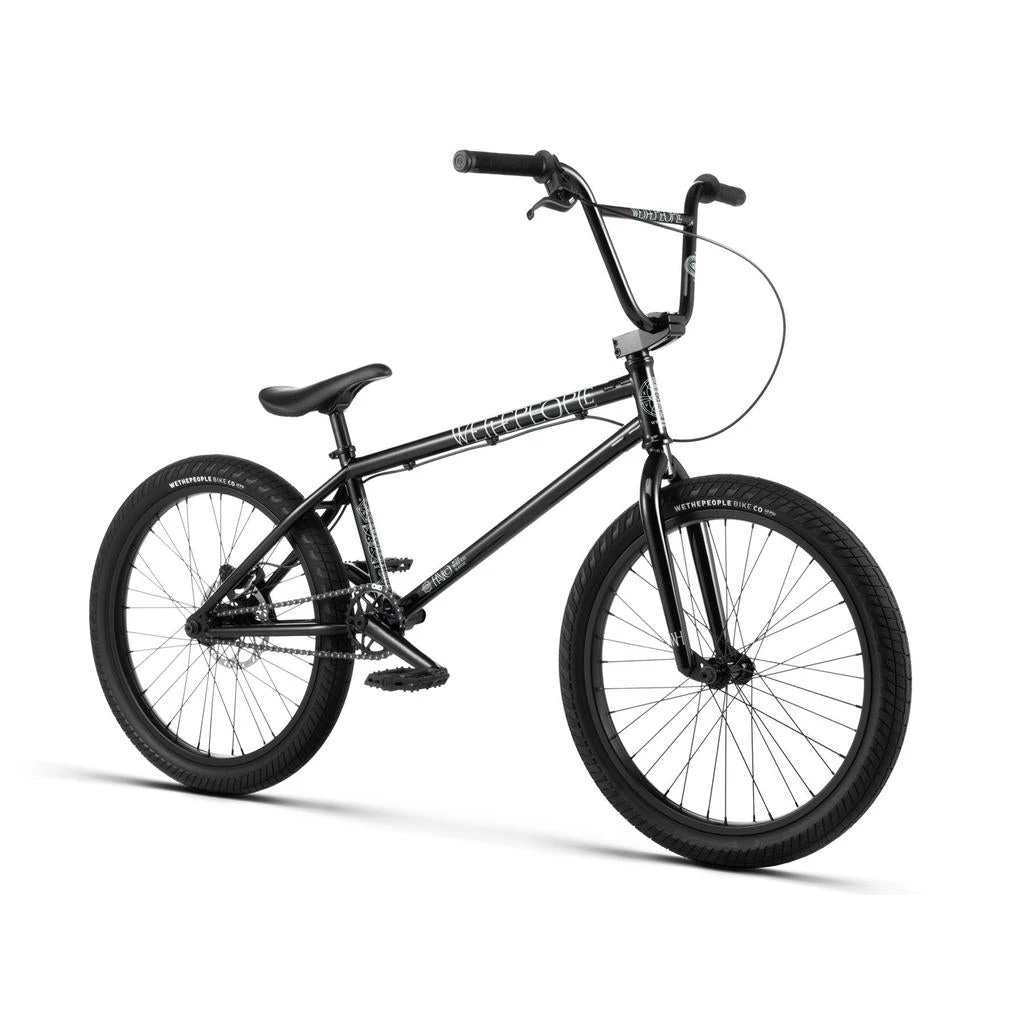

Wethepeople are always pushing what can be done with a BMX bike, and this year they have released their first-ever 22-inch disk brake-ready bike. Modelled off the popular Chaos Machine frame released in 2022, these big bikes are built with the proven Chaos geometry ready to create Havoc!

Frame – “HAVOC 22” frame, trial geometry, 4130 full CrMo, disc brake mount

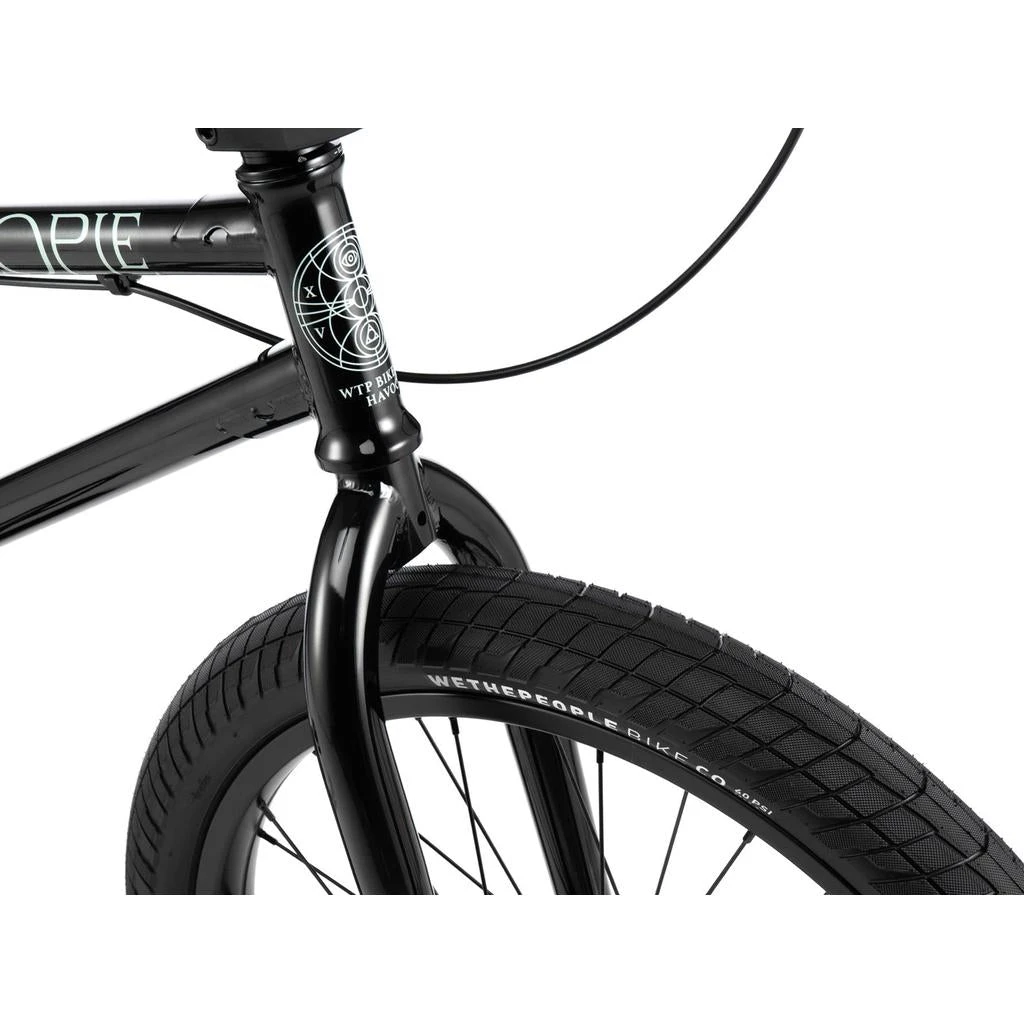

Fork – “HAVOC 22” fork, 4130 full CrMo, 32mm offset

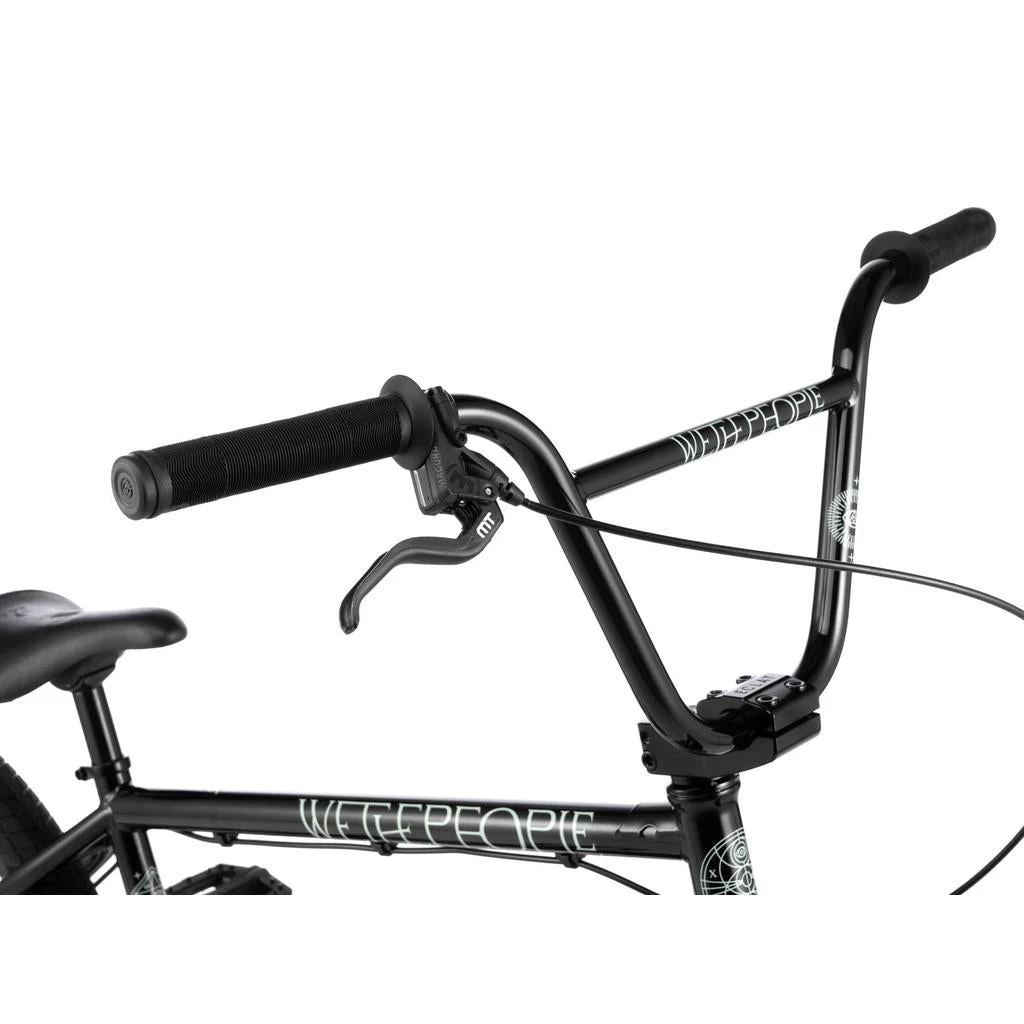

Handlebar – “HAVOC 22” bar, full 4130 CrMo
Grips – SALT “EX” grips, 155.4mm, with flange

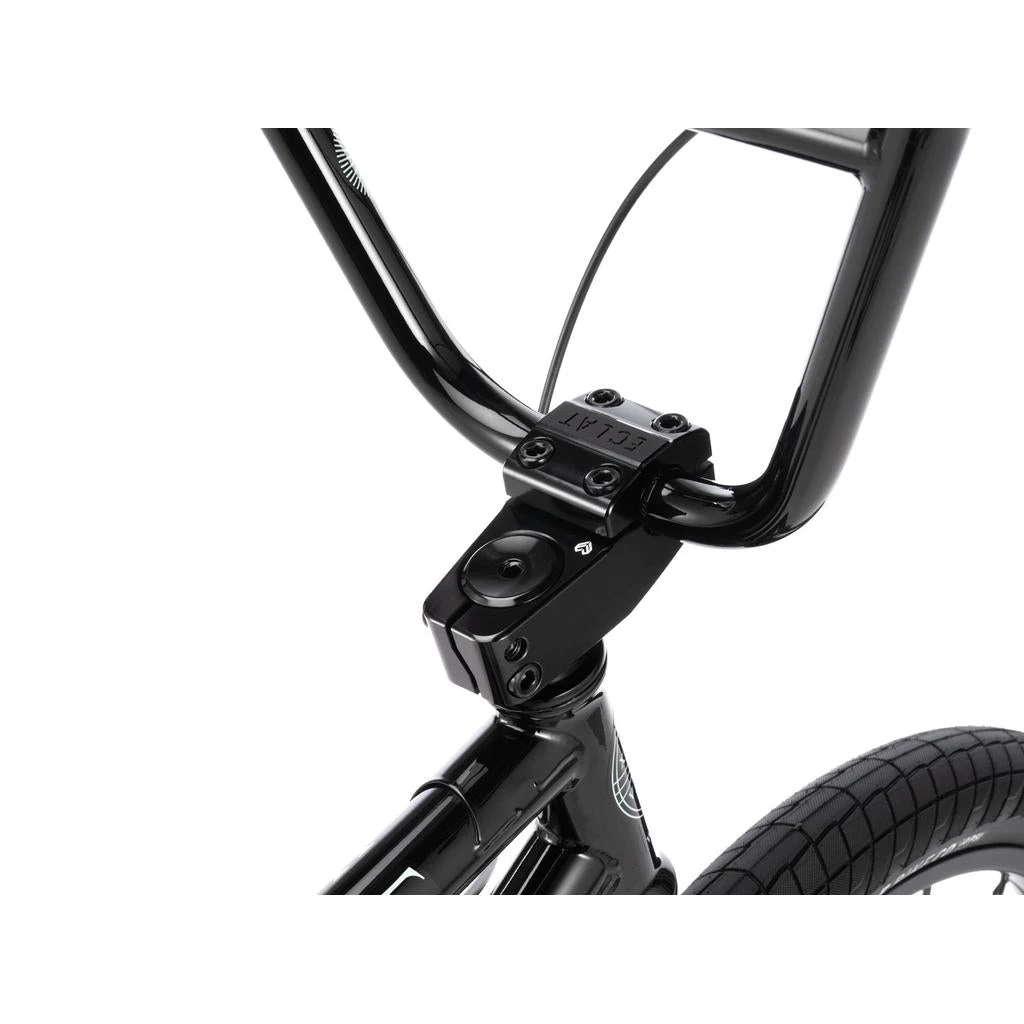

Stem – ÉCLAT “METRA” top load stem, CNC alloy, 51mm reach, 30mm rise
Headset – ÉCLAT “WAVE 6” int. headset, sealed bearing
Gyro – No holes for removable gyro tabs
Brake lever – MAGURA “MT4” hydraulic disc brake lever

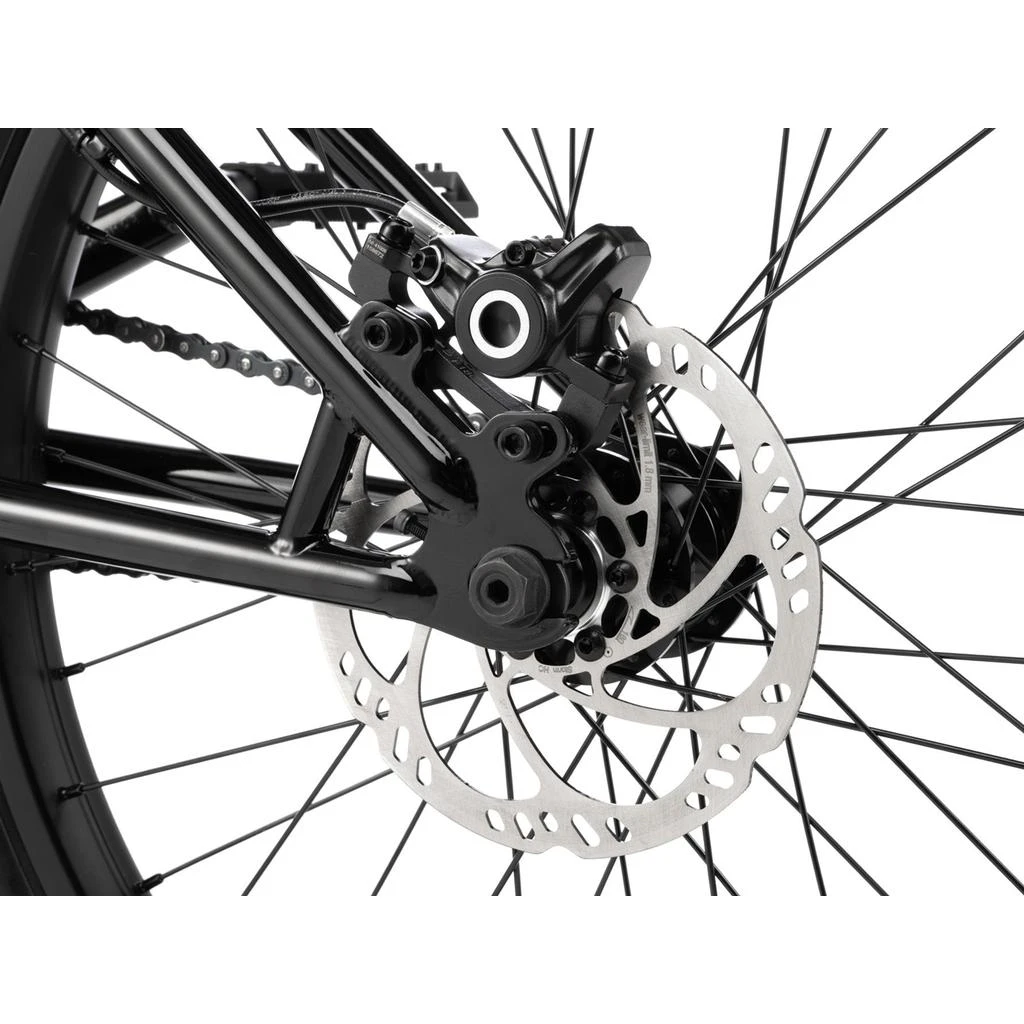

Brakes – MAGURA “MT4” hydraulic disc brake, 140mm rotor

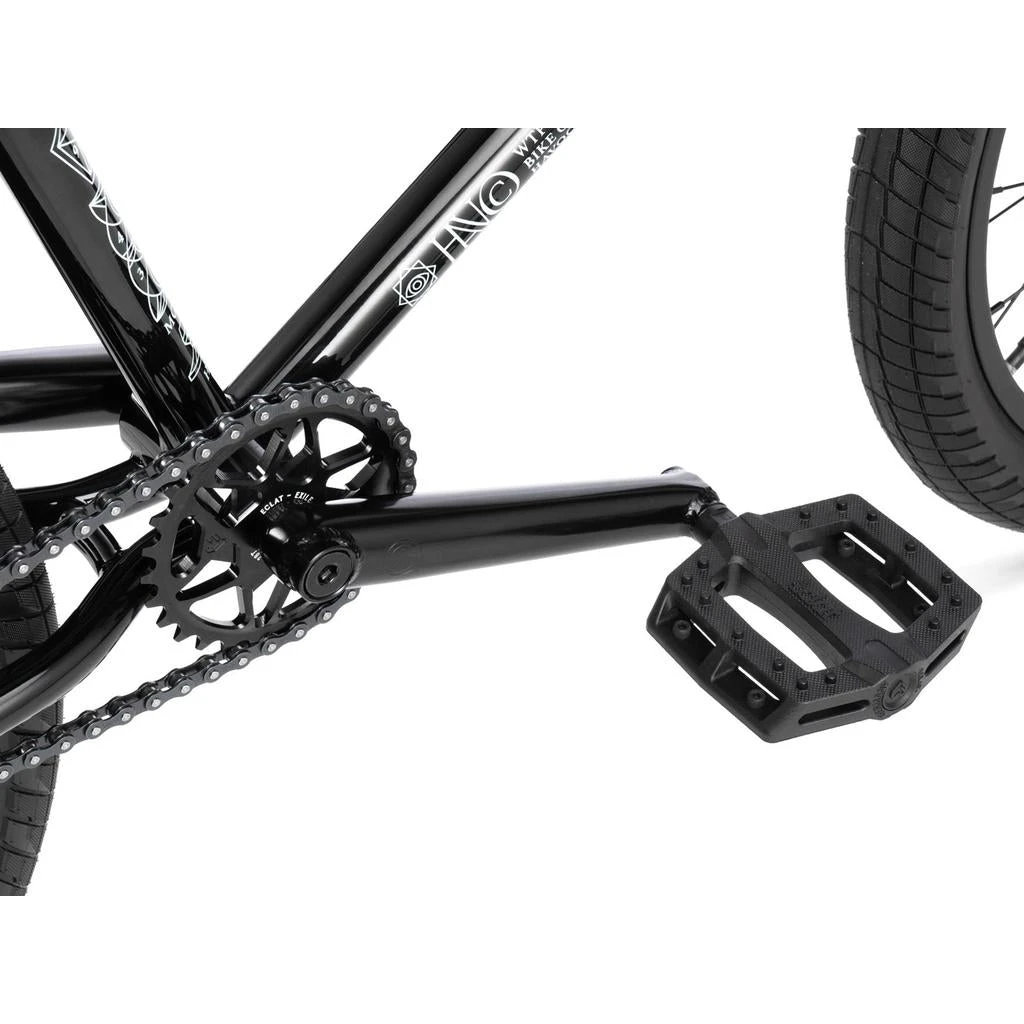

Crank – SALTPLUS “ULTRA” square profile 3pc “TSS” crank, CrMo, 170mm, 8 spline
BB – SALT “MID” BB, 19mm, press fit, sealed bearing
Pedals – ÉCLAT “CONTRA” pedals, nylon/fibreglass
Chain – WETHEPEOPLE “SUPPLY” chain
Sprocket – ÉCLAT “EXILE” sprocket, CNC, 7075-T6 alloy, 30T
Driver – 1pc cassette driver, 9T (RSD)

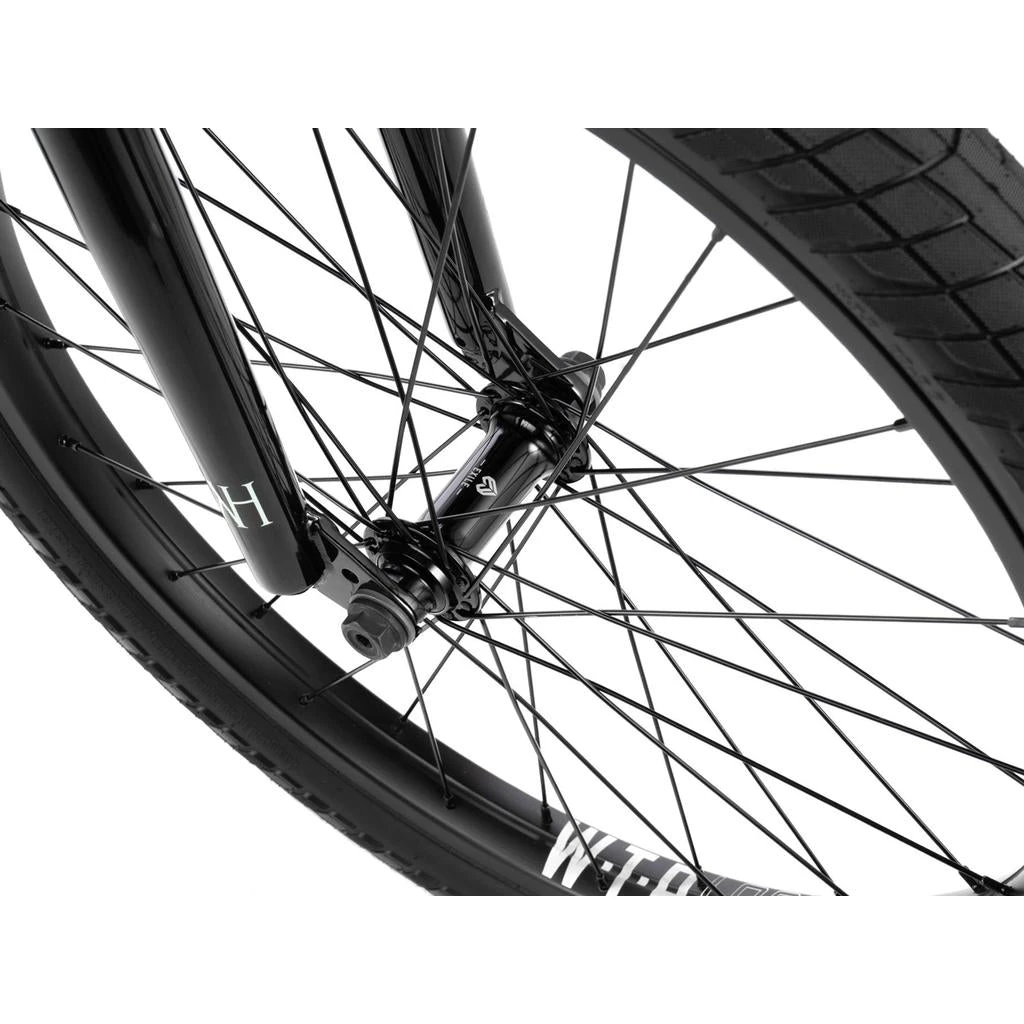

Front hub – ÉCLAT “EXILE” hub, fully sealed, 3/8″s axle, 36H

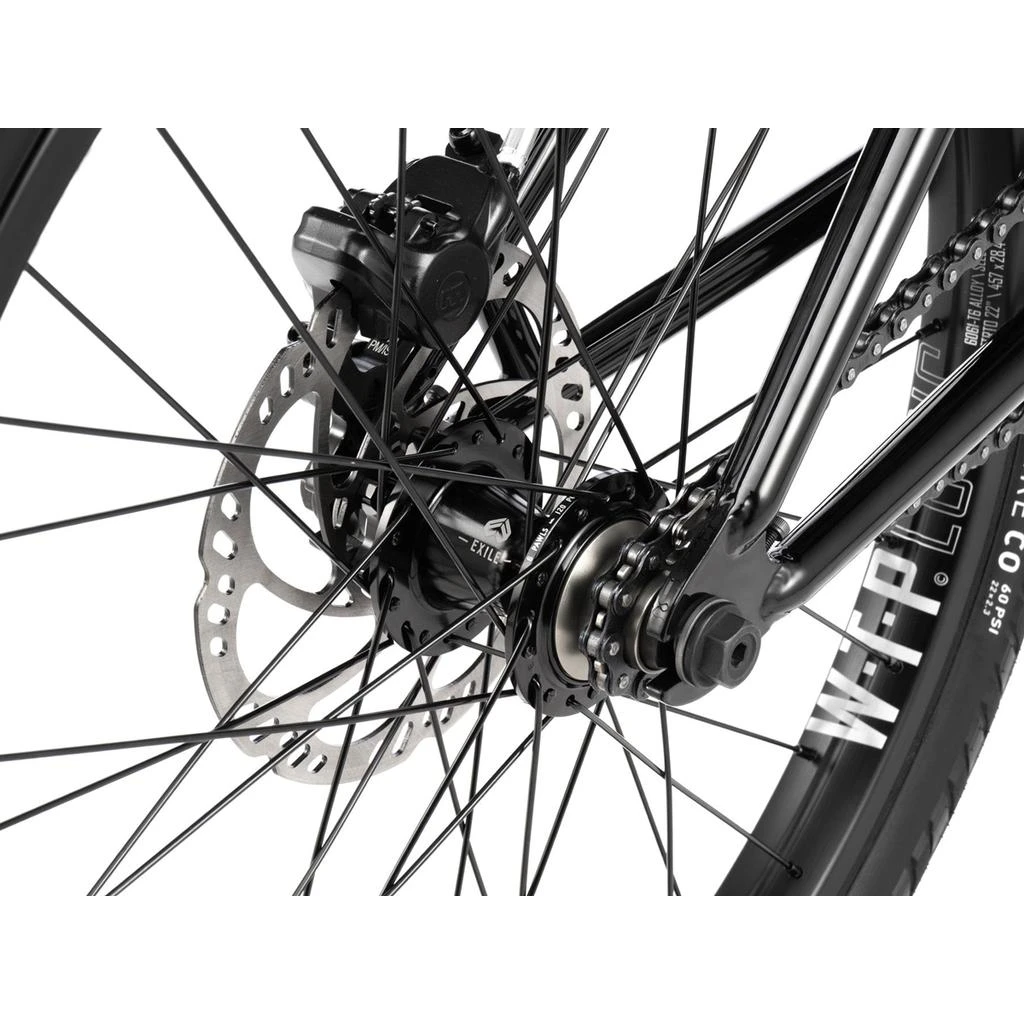

Rear hub – ÉCLAT “EXILE DISC” cassette hub, fully sealed, 9T, female axle, 36H, disc brake mount
Front rim – WETHEPEOPLE “LOGIC” rim, double wall, sleeved, 36H
Rear rim – WETHEPEOPLE “LOGIC” rim, double wall, sleeved, 36H

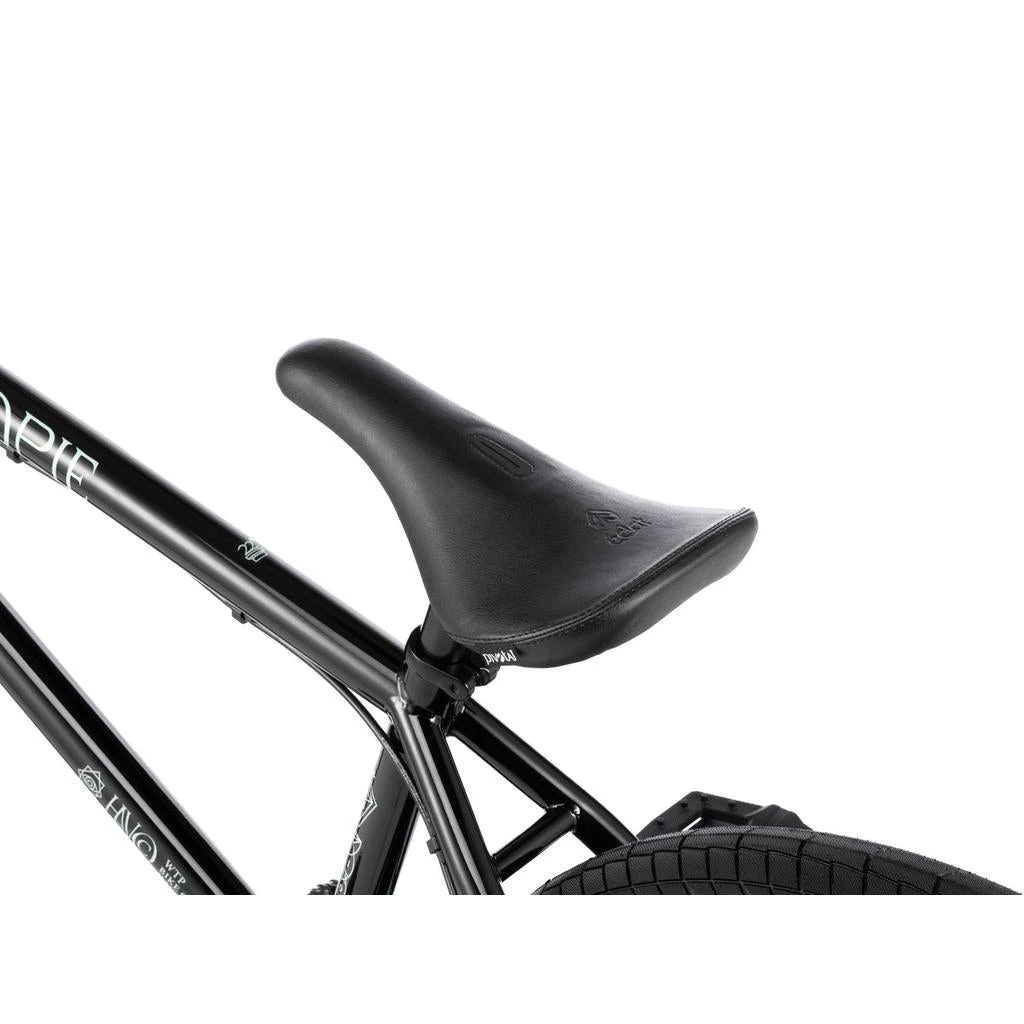

Seat – ÉCLAT “EXILE” pivotal seat, slim padded
Seat post – SALT “AM” pivotal seat post, 200mm, alloy
Seat clamp – ÉCLAT “PURE” seat clamp, forged alloy
Tyres – WETHEPEOPLE “OVERBITE” tires front & rear
Weight – TBC

Frame geometry
Top tube length – 22.25″
Chain stay length – 14.35″
Head tube angle – 74.25°
Seat tube angle – 71°
BB height – 12.25″
Standover height – 9.5″

Bar geometry
Bar rise – 9″
Bar width – 29.25″
Bar back sweep – 11°
Bar upsweep – 2.5°
