Wethepeople Tomorrow Frame

Ooh baby! WTP with the goods yet again! This beast of a frame is built for the streets. With brand new technology and some sweet colours, this frame is sure to be lit!

The next evolution of the legendary Battleship Frame. WTP is proud to finally release the TOMORROW frame. Built on the classic Battleship hydroformed silhouette and responsive street geometry, the TOMORROW frame is a glimpse into the future of BMX frame design. It is built around the introduction of the new 14mm Thru-Axle (TA) hub system which is now offered from éclat. The frame uses a unique 8mm thick investment cast dropout with a closed 14mm slot for Thru-Axle (TA) hubs and female axle hubs. Thru-axle (TA) hubs allow for a superior and stronger axle, overall stiffer wheel as well as a total ease of installation and removal. No more breaking your chain, bending your axle, or pinching your dropout. This superior and already industry-proven system is in our eyes – the future of BMX design. Enjoy the benefits of a premier Wethepeople street frame and the future of Thru-axle technology with the Wethepeople TOMORROW frame. Includes lifetime guarantee.

Top Tube Length: 20.75″ or 21″.
Chain Stay Length: 12.7″ to 13.25″, optimized for 12.75″–13″ setups with a 25-9 gear ratio.
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Bottom Bracket Height: 11.7″
Standover Height: 9.5″

Specifications
Tubing -Constructed from butted, seamless Japanese 4130 chromoly for exceptional strength and durability.
Bottom Bracket – Features a 74mm mid-size, CNC-machined, and heat-treated shell, designed to withstand heavy grinding with super-thick construction.

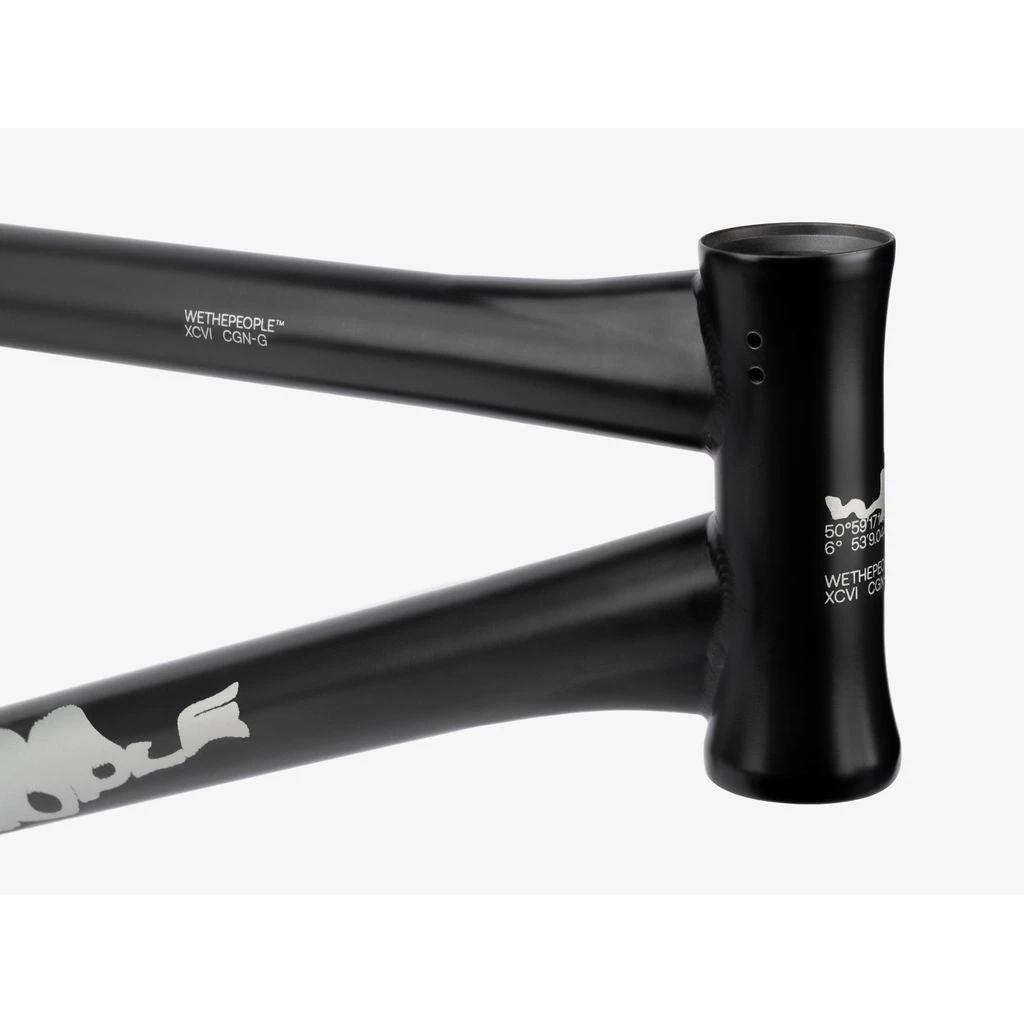

Head Tube – Measures 127mm, CNC-machined, and heat-treated with an integrated headset design. Includes pre-drilled holes for rotor tabs.

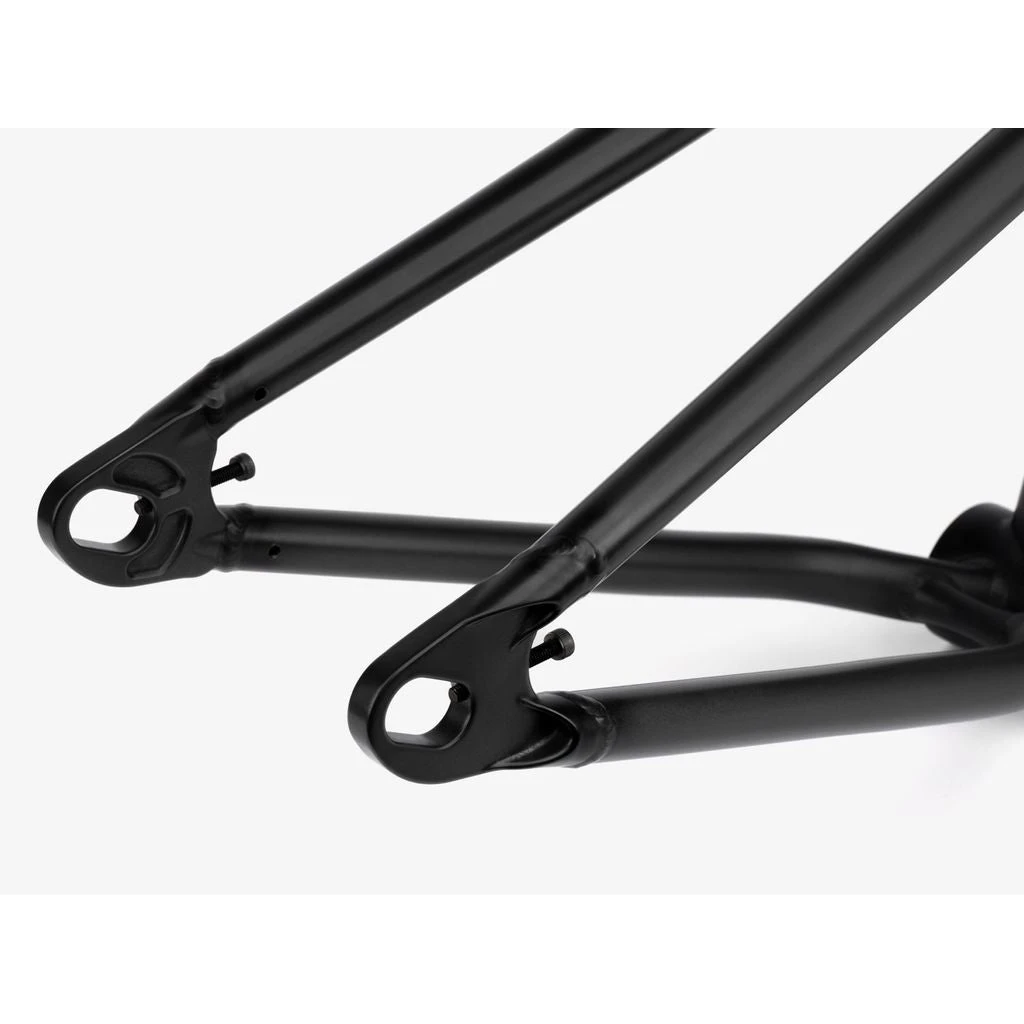

Dropouts – Crafted from 8mm heat-treated investment cast 4130 chromoly. Integrated chain tensioners ensure perfect alignment. Exclusively compatible with 14mm female bolt or thru-axle (TA) hubs.
Brakes – Equipped with Pivot-3 removable brake mounts. The frame is shipped without replacement brake hardware for streamlined customization.
Special Features
– Designed as the next evolution of the legendary Battleship frame.
– The first Wethepeople frame exclusively for female axle and thru-axle (TA) hubs.
– 8mm thick investment-cast dropouts with 14mm closed design for extra durability.
– Extra-thick double-butted top tube for added strength.
– Ultra-short 12.75″ (slammed) chainstay for quick response.
– Taller 9.5″ standover for a modern geometry.
– Thickened bottom bracket shell for enhanced grinding durability.
– Hydroformed top and down tubes for superior stiffness and strength.
– Unique hydroformed seat tube for increased rigidity.
– Oversized 20.5mm seat stays for added durability and stiffness.
– Ovalized chainstays for improved tire and sprocket clearance.
– Larger 1.8mm welds at the head tube for added strength.
– Wider rear triangle accommodates tires up to 2.5″.
– Built-in investment-cast seat clamp for convenience.
– Removable U-brake pivots and rotor tabs for versatile setups.
– Backed by a lifetime guarantee.
Important: Not compatible with male axle hubs; designed only for female and thru-axle (TA) hubs.
Weight – 2.6 kg (5.76 lbs) for the 21″ size.
